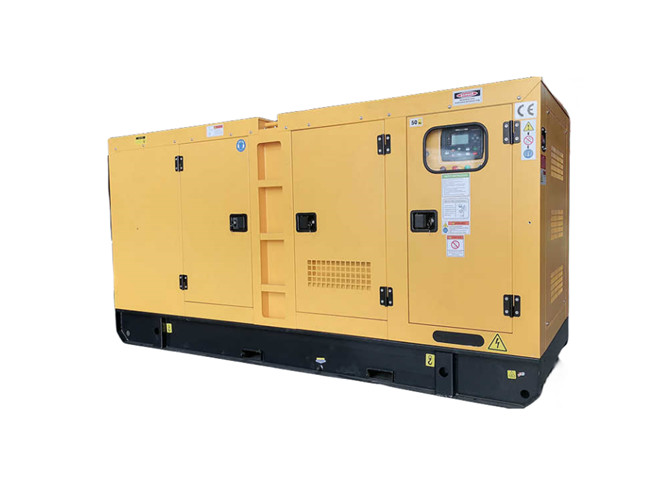

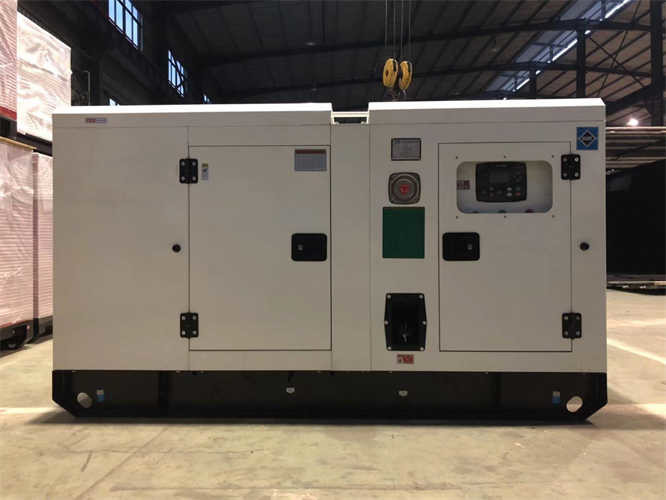

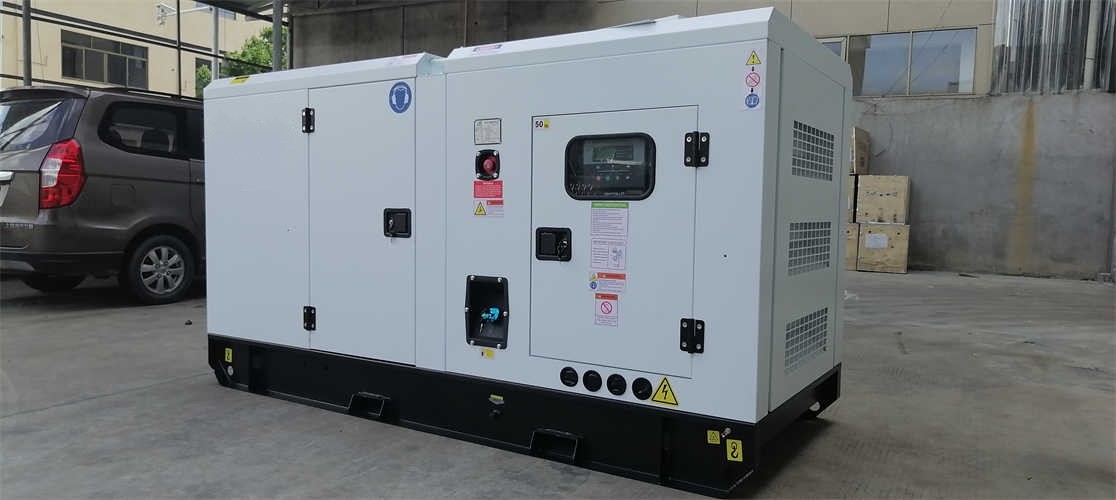

80KVA Diesel Generator Cummins 4BTAA3.9-G11 50Hz Standby Power 88KVA
| Place of Origin | China |
|---|---|
| Brand Name | Cummins |
| Certification | CE/SONCAP/SASO/SGS |
| Model Number | TG88C |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plywood case or Plastic film package |
| Delivery Time | 15 working days after received deposit |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Namee | Cummins Generator | Genset Type | Open Or Silent |
|---|---|---|---|
| Engine Brand | Cummins | Alternator Brand | Stamford/Leroy Somer/Tecgen |
| Control System | AMF/ATS | Output Type | AC Three Phase |
| Cooling Method | Water Cooling | Ambient Temp | ≤40 C |
| Highlight | 80KVA cummins dg set,4BTAA3.9-G11 cummins portable diesel generator,88KVA cummins diesel standby generator |
||
Product Description
80KVA Diesel Generator Cummins 4BTAA3.9-G11 50Hz Standby Power 88KVA
Standby Output: 88KVA/70KW
Prime Output: 80KVA/64KW
Prime Power:
Genset can run unlimitedly under certain power range.
One hour 10% over load in every 12 running hours is allowed;
Standby Power:
Standby power is the limit value of maximum output for emergency use.
It is off-oil power,overloading is prohibited
Genset Datasheet:
| Technical Parameter for Diesel Generator | Genset Model | TG88C |
| Prime Power | 80kVA/64kW | |
| Standby Power | 88kVA/70kW | |
| Frequency | 50Hz | |
| Rated Voltage | 400V | |
| Power Factor | 0.8 | |
| Engine Brand | Cummins | |
| Engine Model | 4BTAA3.9-G11 | |
| Alternator Brand | Stamford | |
| Alternator Model | UCI 224G | |
| Engine General Data | Max Output (kW) | 80 |
| Cyl / Arrangement | 4L | |
| Bore×Stroke (mm×mm) | 102x120 | |
| Speed Governor | Electronic | |
| Fuel Consumption at 100% load(L/H) | 17 | |
| Alternator Data | Model | TGI224S-64 |
| Brand | Tecgen Stamford | |
| Rate Output | 80kVA/64kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Protection Grade | IP 23 | |
| Optional brand | Leroy Somer, Marathon and Chinese brand Brushless Alternator | |
| Control System | Brand | Smartgen |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarm | ||
| Optional brand | Deepsea,Deif or others | |
| Starting Voltage | 24V | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
Supply Scope: Diesel engine, Alternator, Automatic start / stop control panel, Dry type air fillter, fuel filter, oil filter, 4V D.C automatic battery charger, Max. 50 degree celsius radiator, Batteries, rack and cable, Ripple flex exhaust pipe, flange and muffler, Circuit breaker, Base Fuel tank, Complete users' manual.
Product Fetures:
1. Famous diesel engine -- Powered by Perkins, Cummins, Deutz,Weichai, Fawde,SDEC etc.
2. Brushless alternator -- Stamford, Leroy Somer, Marathon, Tecgen.
3. High-quality steel are thickness -- 2MM to 4MM
4. High density sound-absorbing material -- sound insulation, fireproofing
5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.
6. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
Guarantee for 18 months or 1500 hours (accord to whichever comes first) from ex-factory date. During the guarantee period, our Tecgen Power will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts maintenance for gen-set
