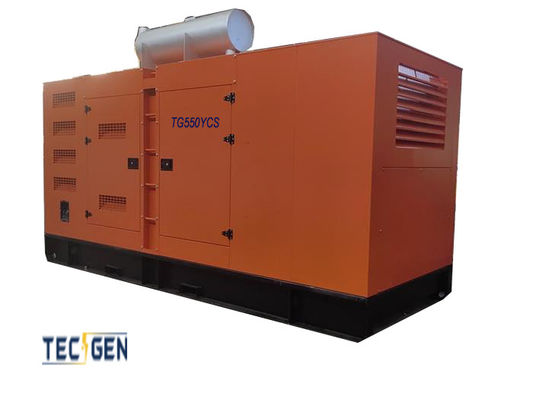

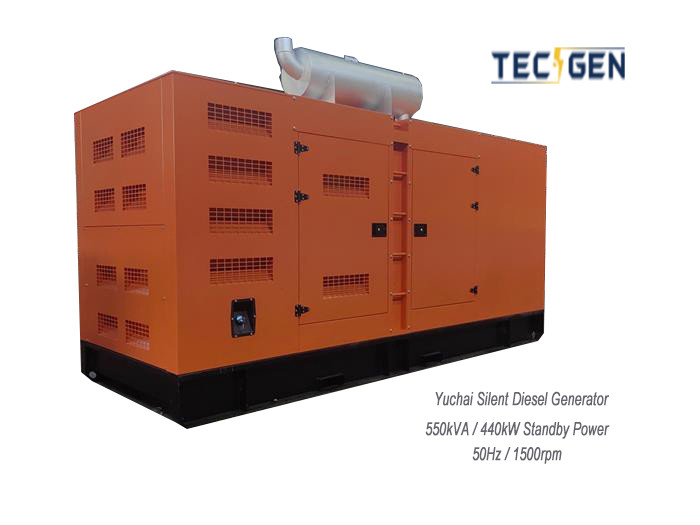

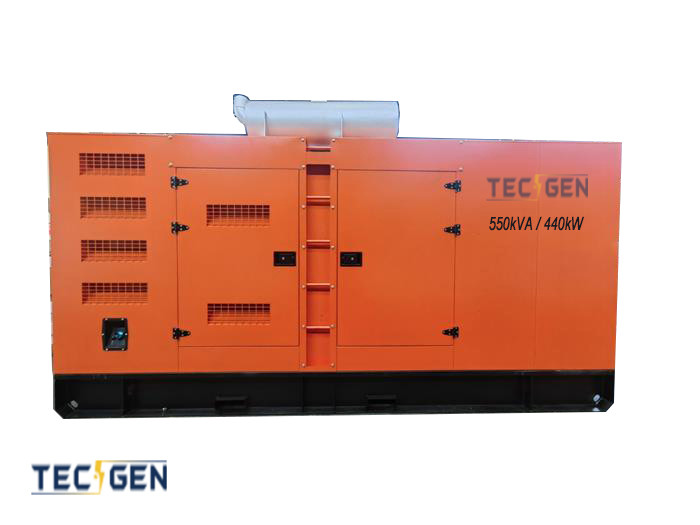

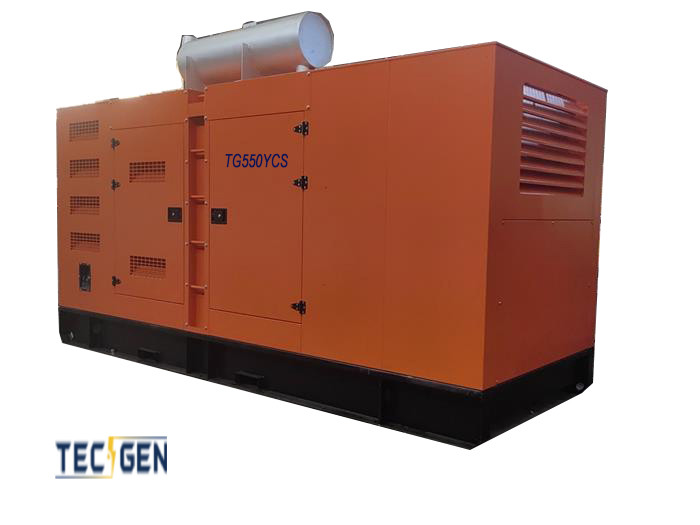

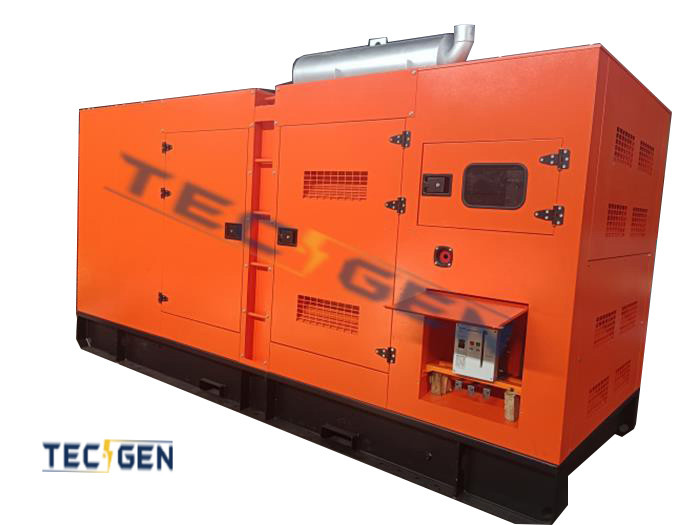

Soundproof 440kW Standby Yuchai Genset Powered By Diesel Engine For Building Power
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Yuchai Standby Genset | Genset Type | Silent Type |
|---|---|---|---|
| Standby Output | 440kW | Engine Model | YC6T660L-D20 |
| No. Of Cylinder | 6-Cylinder In Line | Alternator Model | TIG354S400 |
| Controller | DEIF SGC-420 | Usage | Bank/Building/factory |
| Highlight | Soundproof yuchai genset,440kW yuchai genset,440kW yuchai generator |
||
Product Description
Soundproof generator 440kW standby genset powered by diesel engine for building power
General Features of 440kW Standby Genset:
- Yuchai Diesel Engine & AC Brushless Alternator: The genset is assembled with a reliable Yuchai diesel engine and an AC brushless alternator, ensuring efficient power generation.
- Standard and Optional Filters: Comes with three filters as standard, with an option for a fuel and water separator for enhanced filtration.
- Radiator and Fan with Safety Guard: Equipped with a radiator and fan that include a safety guard, ensuring optimal cooling and protection.
- Single Bearing AC Alternator: Features a single bearing alternator with IP 23 protection and insulation Class H, guaranteeing reliable performance.
- Heavy-Duty Steel Base Frame: Built with a heavy-duty steel base frame and an 8-hour operation base fuel tank, providing durability and extended runtime.
- Automatic Control Panel and Circuit Breaker: Includes an automatic control panel and a 3-pole circuit breaker, ensuring efficient and safe operation.
- Battery and Battery Charger: Supplied with a 12V or 24V battery and battery wires, along with a float battery charger for convenient power supply.
- Fuel Level Indicator: Equipped with a fuel level indicator in both the meter and the control panel, allowing for easy monitoring.
- Optional Features: Offers optional soundproof canopy, ATS (Automatic Transfer Switch), synchronization panel, and movable trailers for added versatility.
440kW Standby Genset General Datasheets:
| 440kW Standby Genset Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG550YCS | YC6T660L-D20 | TIG354S400 | DEIF SGC-420 | 440kW | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of 440kW Standby Genset | |||||
| Engine Model | YC6T660L-D20 Yuchai | ||||
| Alternator Mode | TIG354S400 | ||||
| Rated Output | 500kVA / 400kW | ||||
| Standby Output | 550kVA / 440kW | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 240 / 415V | ||||
| Rated Current | 695.6A | ||||
| Breaker | 800 CHINT Breaker | ||||
| ATS | 800A ATS Cabinet for option | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 72dB(A) | ||||
| Net Weight | 5300KGS | ||||
| Genset size | L4200 * W1730 * H2230mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for 440kW Standby Genset | |||||
| Manufacture | Yuchai | ||||
| Model | YC6T660L-D20 | ||||
| Rated Output/Speed | 441KW/1500RPM | ||||
| Standby Output/Speed | 485KW/1500RPM | ||||
| Aspiration | Turbocharged & Intercooled | ||||
| Speed Governor | Electric | ||||
| Engine Type | 6 cylinders in line | ||||
| Bore X Stroke | 145*165mm | ||||
| Displacement | 16.35 L | ||||
| Compression ratio | 18.4:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 109.4 L / h | ||||
| Fuel Consumption/standby output | 120.5 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for 440kW Standby Genset | |||||
| Alternator Model | TIG354S400 | ||||
| Manufacture | Copy Stamford | ||||
| Rate Output | 400kW | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of 440kW Standby Genset | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Standard Accessories of 440kW Standby Genset:
- Ignition & Speed Control System: Reliable system for precise power generation.
- Steel Base Frame: Sturdy frame for stability and support.
- 3 Meters Smoke Pipe: Safe exhaust emission.
- Exhaust Silencer: Minimizes noise during operation.
- Flanges and Bellows: Easy installation and exhaust system connection.
- Battery and Connecting Wires: Reliable startup and power supply.
- Operation Manual and Documents: Comprehensive guidance and reference.
- Load Test Report: Ensures performance and compliance.
- Water Temperature Sensor: Monitors optimal operating temperature.
- Oil-Pressure Sensor: Protects engine from potential damage.
- MCCB (Molded Case Circuit Breaker): Enhanced electrical protection.
- Control Panel: Easy operation and monitoring.
- Maintaining Tools: Simplifies routine servicing and maintenance.
