16kW Cummins Diesel Standby Generator With 850L Fuel Tank For 24 Hours Running
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Specification | Cummins Diesel Standby Generator | Rate Power | 16kW / 20kVA |
|---|---|---|---|
| Standby Power | 18kW / 22kVA | Genset Type | Silent |
| Frequency / Voltage | 50Hz / 220/380V | Engine | Cummins 4B3.9-G11 |
| Alternator | Leroy Somer TAL-A40-F | Fuel Tank Capacity | 850L |
| Highlight | 16kW cummins dg set,850L cummins portable diesel generator,24Hours Running cummins diesel standby generator |
||
Product Description

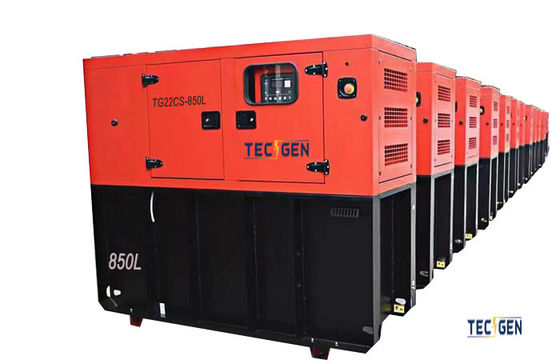

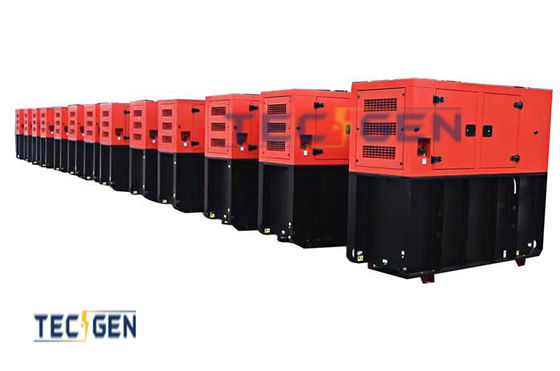

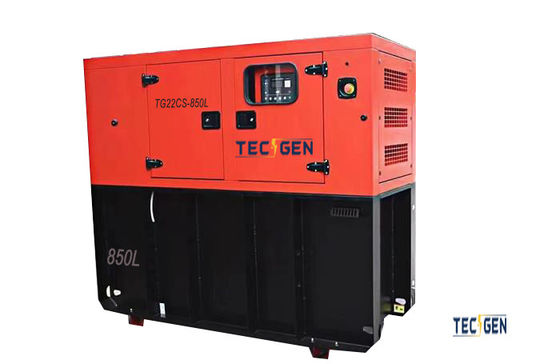

16kW Cummins diesel standby generator with 850L Fuel Tank for 24 Hours Running
Product Description
16kW Cummins Diesel Standby Generator with Cummins engine, we can provide you with the silent type and the open type.
- Brand new Cummins diesel engine generators couple with Leroy Somer Alternator
- 850L Chassis base fuel tank.
- Set mounted with DEIF SGC-420 digital controller. Breaker included.
- 24V DC Electric start system with maintenance free starting batteries and battery chargers .
- Low Noise -- Cylinder liner and crankcase are all made in high strength grey cast iron (German standard) with optimal design to reduce the noise and vibration
- Colors with White, Blue, Orange, Yellow, green or according to customers’ needs
- Package: Genset will be packed in poly foam.
16kW Cummins Diesel Standby Generator Specifications:
| 16kW Cummins Diesel Standby Generator Datasheet | ||||
| Cummins Diesel Standby Generator | Genset Type | Silent Enclosed | ||
| Genset Model | TG22CS-850L | |||
| Prime Output | 20kVA / 16kW | |||
| Max Output | 22kVA / 18kW | |||
| Engine model | 4B3.9-G11 | |||
| Alternator | TAL-A40-F | |||
| Frequency | 50Hz | |||
| Speed | 1500rpm | |||
| Voltage | 220/380V | |||
| Output Type | 3 Phase, 4 Wire | |||
| Current | 30.4A | |||
| Controller | DEIF SGC-420 | |||
| ATS | 63A Built-in ATS | |||
| Breaker | Aisikai / Delixi | |||
| Battery | Varta | |||
| Fuel Tank | 850L | |||
| Demission | L2200x730x2000mm | |||
| Weight | 1000kgs | |||
| Cummins Diesel Standby Generator parameters | ||||
| Voltage setting range | ≥±10% | |||
| Steady state voltage regulation rate | ≤0.5% | |||
| Transient voltage deviation (100% sudden power reduction) | ≤+17% | |||
| Transient Voltage Deviation (40% Sudden Power) | ≤-6.5% | |||
| Voltage Stability Time (100% Sudden Power Reduction) | ≤2.8S | |||
| Voltage Stability Time (40% Sudden Power) | ≤2.5S | |||
| Frequency adjustment range | ≥±10%Adjustble | |||
| Frequency volatility | ≤±0.25% | |||
| Transient frequency deviation (100% sudden power reduction) | ≤+8% | |||
| Transient frequency deviation (40% sudden power) | ≤-5% | |||
| Frequency Recovery Time (100% Sudden Power Reduction) | ≤1.48S | |||
| Frequency recovery time (40% sudden power) | ≤1.35S | |||
| Cummins Diesel Engine Parameters | ||||
| DCEC Cummins Engine 4B3.9-G11 | Brand | Dongfeng Cummins Engine Co., Ltd | ||
| Model | 4B3.9-G11 | |||
| Prime power | 20kW / 27HP | |||
| Standby Power | 22Kw / 29hp | |||
| Combustion | Direct Injection | |||
| No. of Cylinders | 4 Cylinder | |||
| Aspiration | Naturally Aspirated | |||
| Compression Ratio | 18 : 1 | |||
| Speed | 1500rpm | |||
| Displacement | 3.9 | |||
| Bore* Storke | 102mm*120mm | |||
| governor | Electric | |||
| Start motor | DC 12V | |||
| Cooling Capacity | 7.2 | |||
| Cooling Type | Water cooling | |||
| FUEL CONSUMPTION | 236g/kW.h | |||
| AC Brushless Alternator Parameters | ||||
| Leroy Somer Alternator TAL-A40-F | Brand | Leroy Somer | ||
| Model | TAL-A40-F | |||
| Rate Output | 16kW | |||
| Rate Speed | 1500rpm | |||
| Frequency | 50Hz | |||
| Altitude | ≤1000 | |||
| Alternator type | Single bearing, brushless type | |||
| Connection Type | 3 phase, 4 wire | |||
| Protection Grade | IP23 | |||
| Insulation Class | H | |||
| Voltage Regulation | AVR | |||
| Option brand | Stamford,Leroy Somer,Meccalte | |||
| Genset Controller System | ||||
| Genset Controller DEIF SGC-420 | Brand | DEIF | ||
| Model | SGC-420 | |||
| Working Voltage | DC8.0V to DC35.0V, continuous | |||
| Overall Dimensions (mm) | 233*38.5*173 | |||
| Functions | AMF/ATS | |||
| RS485 & CAN communication | ||||
| 9 Inlet & 7 Outlet | ||||
| PLC & BTN | ||||
| Protections | Under-speed | |||
| Over-speed | ||||
| Configurable crank connect | ||||
| Battery monitoring | ||||
| Charging alternator | ||||
| Pre-heat | ||||
| Coolant temperature | ||||
| Lube oil pressure | ||||
| Fuel level detection | ||||
| Fuel theft detection | ||||
| ECU communication failure | ||||
| ECU diagnostic lamp | ||||
| Option brand | DEEPSEA,Smartgen,ComAp | |||
| Optional accessories for Cummins Diesel Standby Generator | ||||
| Engine | Alternator | Electrical system | ||
| Water Heater | Anti-condensation heater | Anti-condensation heater | ||
| Oil preheater | PMG | Unit control screen with three remote functions | ||
| Air starting motor | Parallel | ATS automatic load transfer screen | ||
| Heavy Air Filter for Desert | Generators of other temperature rise grades | Full-automatic parallel screen for multiple units | ||
| Heavy duty secondary muffler | RTD temperature sensor, 2 per phase | Remote control system separate from unit | ||
| Fuel system | Other | Cooling system | ||
| Daily Fuel Tank | Super Silent Canopy | Split water tank | ||
| Oil - water separator | Static sound box generator set |
|
||
| Fully automatic oil supply system | Vehicle-mounted power generation vehicle | Heat exchanger and external circulation cooling tower | ||
| Integrated Fuel Tank | Towing generator set | Marine cooling system | ||
| Delivery Time of Cummins Diesel Standby Generator | ||||
| Spot goods | QTY(Set) | 12 – 24 Sets | 24 – 120 Sets | |
| Delivery Time | 7-15 Days | 15 – 25 Days | ||
| Custom | Delivery Time | 25 Days | 30 Days | |
Key Fetures of Cummins Diesel Standby Generator:
1.Genset Model: TG22CS-850L
2.Genset Type: Open / Silent / Container / Moveable trailer
3.Voltage: 220/380V,230/400V,110/220V,240/415V, 254/440V, 277/480V
4.Prime Power: 20kVA / 16kW
5.Engine: Cummins / Ricardo / Perkins / Deutz / Yangdong and others according your requirements.
6.Alternator: With Leroy somer, Stamford, Mecc Alte, Engga, copy Stamford, etc.
7.Controller: DEIF SGC-420 as standard controller, DEEPSEA DSE6120, DSE7320, DSE8610, ComAp MRS10, MRS16, AMF20, AMF25 and Smartgen HGM6110 / 20N, HGM9510 for option.
8.Circuit Breaker: CHINT, Delixi, Aisikai and ABB for option
9.Fuel Tank: 850L base fuel tank, Integrated Fuel Tank / External Daily Tank for option
10.Radiator: With safety guard.
11.Vibration Damper: Vibration damper between Engine / Alternator and base frame
12.Silencer: Heavy duty industrial type silencer with flexible bellow, elbow.
13.Battery: Varta Brand, high-capacity sealed maintenance free battery c/w battery cables.
14. Tool Kits & Manuals: Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc.
FAQ:
Q1. What is your terms of packing?
A: Plastic Film Cover Outside Or Plywood Box Or According To Customers' Requirements.
Q2. What is your terms of payment?
A: T/T 20% as deposit, and 80% before delivery. We'll show you the photos of the diesel generator and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 7 to 20 days after receiving your advance payment.
Q5. Can you produce genset according to the customers’ requirements?
A: Yes, we can provide OEM / ODM service to our customers. For example, our standard fuel tank is 8 running hours capacity. When customers need big capacity, we will provide designs for customers’ option like 600L, 850L, 1000L or daily fuel tank.
