Open Type Diesel Generator 60Hz Cummins 55kW Diesel Generator For Rental Use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Open Type Diesel Generator | Frequency | 60Hz |
|---|---|---|---|
| Rate Speed | 1800rpm | Volatge | 480V |
| Prime Output | 68kVA / 55kW | Standby Output | 75kVA / 60kW |
| Engine | Cummins 4BT3.9-G2 | Alternator | Stamford UCI 224F |
| Highlight | Open Type cummins dg set,60Hz cummins portable diesel generator,55kW cummins diesel standby generator |
||
Product Description

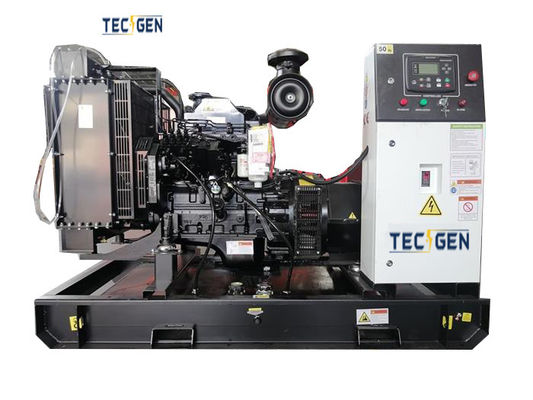

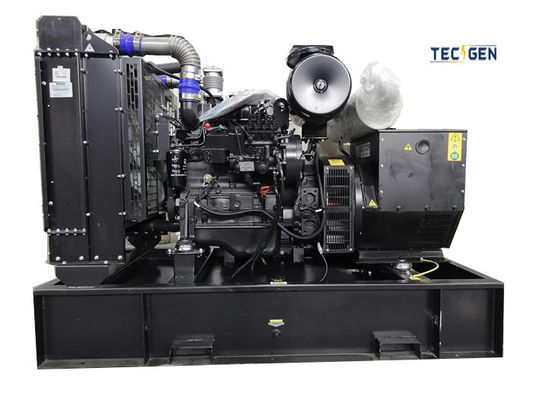

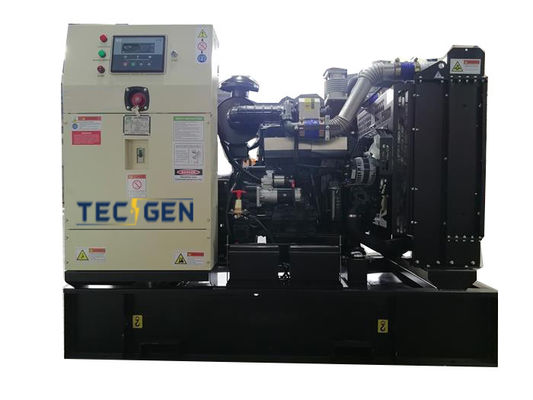

Open type diesel generator 60Hz Cummins 55kW diesel generator for rental use
Standard Features of Open Type Diesel Generator
- Max 50°C radiator with belt-driven fans & safety guard
- 24V charge alternator
- Single-bearing alternator, IP23 insulation, class H/H
- Absorber included
- Dry-type air, fuel, & oil filters
- Main line circuit breaker
- Standard control panel
- Two 24V DC maintenance-free batteries, charger, & wires
- Ripple flex exhaust pipe, siphon, & flange muffler
- Comprehensive user manual
Open Type Diesel Generator Specifications:
| Open Type Diesel Generator Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG75CD6 | 4BTA3.9-G2 | UCI 224F | DIEF SGC-420 | 68kVA | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port or any ports in China (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of Open Type Diesel Generator | |||||
| Engine Model | BTA3.9-G2 Cummins | ||||
| Alternator Mode | UCI 224F Stamford | ||||
| Rated Output | 68kVA / 55kW | ||||
| Standby Output | 75kVA / 60kW | ||||
| Rated Speed | 1800 RPM | ||||
| Frequency | 0 HZ | ||||
| Rated Voltage | 480V | ||||
| Rated Current | 78.2A | ||||
| Breaker | 100A Aisikai Breaker | ||||
| ATS | 100A Built-in ATS or Wall-mounted Box | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 75dB(A) | ||||
| Net Weight | 900KGS | ||||
| Genset size | L1700 * W850 * H1150mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for Open Type Diesel Generator | |||||
| Manufacture | Weifang Ricardo Seies | ||||
| Model | BTA3.9-G2 | ||||
| Rated Output/Speed | 67KW/1800RPM | ||||
| Standby Output/Speed | 74KW/1800RPM | ||||
| Aspiration | Turbocharged & Aftercooled | ||||
| Speed Governor | Electric | ||||
| Engine Type | 4 cylinders in line | ||||
| Bore X Stroke | 102*120mm | ||||
| Displacement | 3.9 L | ||||
| Compression ratio | 17.3:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 15 L / h | ||||
| Fuel Consumption/standby output | 17 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for Open Type Diesel Generator | |||||
| Alternator Model | UCI 224F | ||||
| Manufacture | Cummins Generator Technologies | ||||
| Rate Output | 58kW | ||||
| Rated voltage(V) | 480V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of Open Type Diesel Generator | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 Celsius degree radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Power Range & Premier Products:
Covering 16kw to 1250kw, our top-tier Gen-sets include 4B, 6B, 6C, 6L, QSZ, MTAA, NTA, QSNT, K19, QSK, K38, and K50 series.
Global Quality Standards
Consistent, compact, reliable, durable, safe, and emission-friendly.
Powered by DCEC Cummins
With speeds of 1500/1800rpm, ensuring efficient performance.
Top-tier Alternators
Choose from Stamford, Leroysomer, Marathon, MECCALTE, or TECGEN. IP & Insulation Class: IP22-23 & F/H.
Flexible Frequency Options
50/60HZ to meet your specific needs.
Sophisticated Controllers
DEIF, Deepsea, Comap, Smartgen, TECGEN, and more.
ATS System Options
Including AISIKAI, ABB, SOCOMIC, and other reliable brands.
Silent Operation
Sound level: 63-75db (at 7m side) for discrete power generation.
Flexible Payment & Delivery
T/T, L/C, Western Union, Paypal, and other payment methods accepted. Production and delivery within 15 days of downpayment.
