Ultra Silent Cummins Diesel Generator 26kW Standby Output With Output Sockets
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Ultra Silent Type | Frequency | 60Hz / 1800rpm |
|---|---|---|---|
| Speed | 1800rpm | Voltage | 480V |
| Rate Output | 24kW | Standby Output | 26kW |
| Engine Brand | DCEC Cummins 4B3.9-G2 | Alternator Brand | Leroy Somer TAL-A42-C |
| Highlight | Ultra Silent cummins dg set,26kW cummins portable diesel generator,26kW cummins diesel standby generator |
||
Product Description

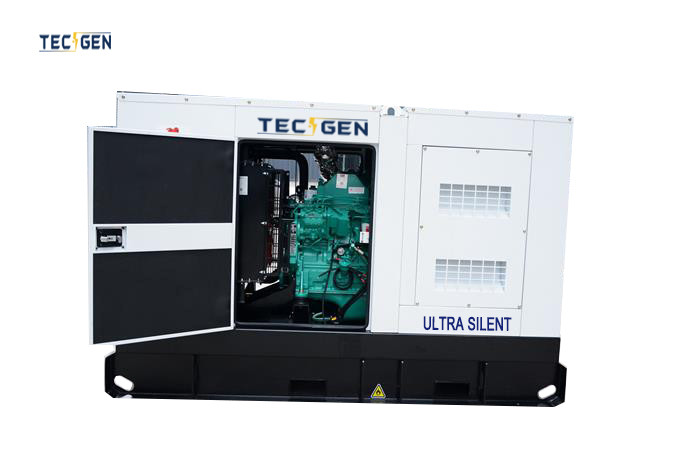

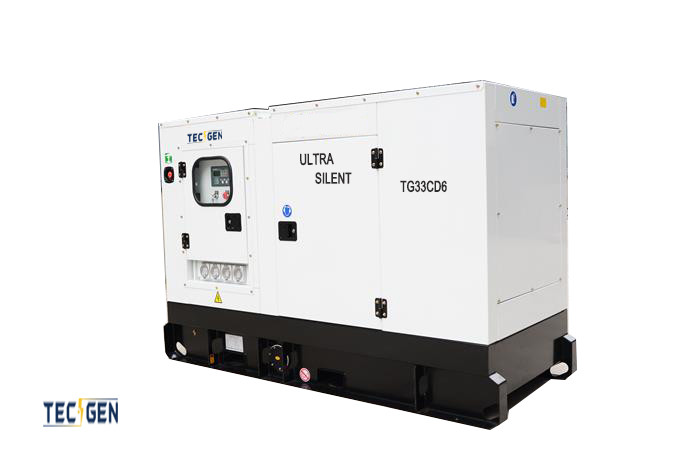

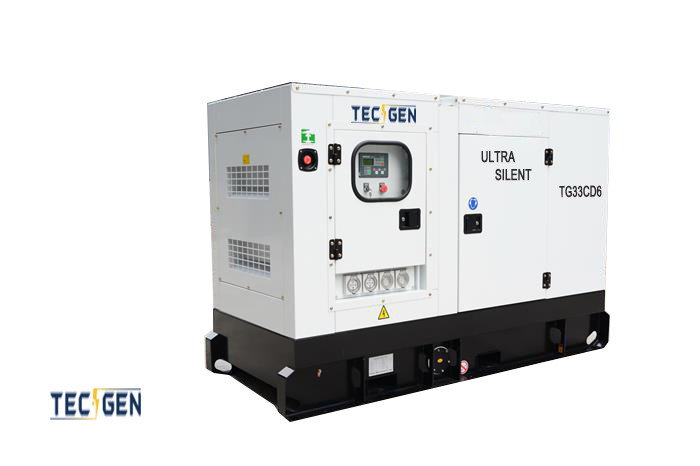

Ultra silent Cummins diesel generator 26kW standby output with output sockets
Ultra-Silent Cummins Diesel Generator - Premium Quality & Reliable Performance
Key Features:
- Standby Output: 24kW
- Prime Output: 26kW
- Engine Manufacturer: Dongfeng Cummins Engine Co., Ltd.
- Warranty: 18 months or 1,500 running hours
Payment Options:
- 30% Deposit via T/T, Balance 70% before shipment.
- 100% Payment via Irrevocable L/C At Sight.
Complete Supply Scope:
- Diesel Engine
- Alternator
- Automatic Start/Stop Control Panel
- Dry Type Air Filter
- Fuel & Oil Filters
- 24V D.C Battery Charger
- Max. 50°C Radiator
- Batteries, Rack & Cables
- Exhaust Pipe, Flange & Muffler
- Circuit Breaker
- Base Fuel Tank
- User Manual
Rigorous Testing:
All units undergo rigorous factory testing to ensure top-notch quality.
Worldwide Service & Support:
Both Tecgen Power and local distributors provide prompt service and parts replacement.
Ultra Silent Diesel Generators Specifications:
| Technical Specification: | ||
| Ultra Silent Cummins Diesel Generator Specification | ||
| Genset Model | TG33CD6 | TG33CSD6 |
| Open | Silent | |
| Frequency | 60Hz | |
| Rate Speed | 1800RPM | |
| Voltage | 480V | |
| Phase | 3 Phase, 4 or 12 Wires | |
| Rate Current | 36.1A | |
| Prime Power | 24kW / 30kVA | |
| Standby Power | 26kW / 33kVA | |
| Engine Model | Cummins 4B3.9-G2 | |
| Alternator Model | Leroy Somer TAL-A42-C | |
| Controller | DEEPSEA DSE6020 | |
| Weight & Dimensions | ||
| Length (mm) | 1700 | 2300 |
| width (mm) | 830 | 960 |
| Height (mm) | 1300 | 1450 |
| Weight (kgs) | 830 | 1200 |
| Cummins Engine Specifications | ||
| Brand | DCEC Cummins | |
| Engine Model | 4B3.9-G2 | |
| Prime/Standby power | 30kW / 33kW | |
| Injection | Indirect | |
| Aspiration | Naturally Aspirated | |
| No. of cylinders | 4 | |
| Speed | 1800RPM | |
| Bore of Stroke (mm) | 102 x 120 | |
| Displacement (L) | 3.9 | |
| Cooling | Water Cooled | |
| Compression Ratio | 18:1 | |
| Engine Oil capacity (L) | 7.2 | |
| Coolant Capacity ( In radiator) | 7.2 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 60Hz | |
| 100% Load (L/h) | 6.7 | |
| 75% Load (L/h) | 5.2 | |
| 50% Load (L/h) | 3.9 | |
| 25% Load (L/h) | 2.7 | |
| Leroy Somer Alternator Specification | ||
| Brand | Leory Somer | |
| Model | TAL-A42-C | |
| Rate Output (kVA) | 30 | |
| Speed | 1800RPM | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| DEIF Controller System | ||
| Brand | DEIF | |
| Model | DEIF SGC-420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Ultra Silent Cummins Generator Highlights:
- Power Range: 10-100kVA for silent diesel power.
- Flexible Options: Engines, alternators, & controllers from top brands.
- Certified Quality: CE, ISO9001-2008, SONCAP, SASO, & SGS approved.
- Durability: 10% overload capacity for 1hr every 12hrs.
- Global Parts Access: Affordable, worldwide spare parts availability.
- Excellent Service: Comprehensive after-sales support network.
- Frequencies: 50Hz & 60Hz compatibility.
- ATS & AMF: Optional auto transfer & parallel running for seamless power.
- Robust Design: Anti-vibration mount & industrial silencer.
- Rigorous Testing: Each unit undergoes a 0-110% load test.
- Warranty Assurance: 1,500 hours or 18 months warranty.
Choose Ultra Silent Cummins for Reliable, Efficient Power Solutions.
