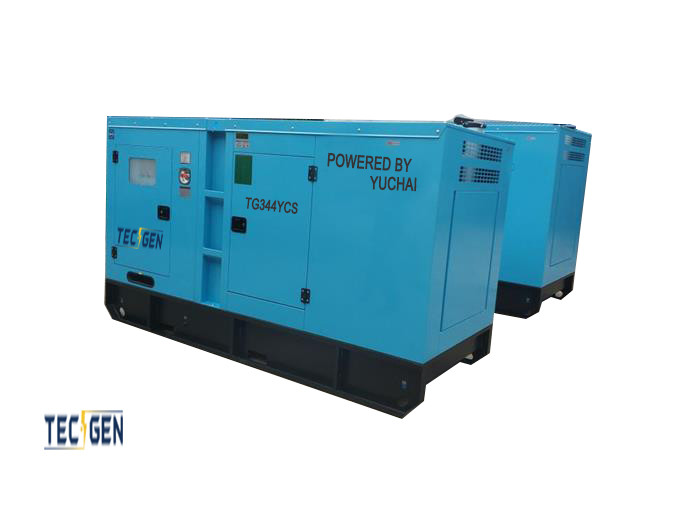

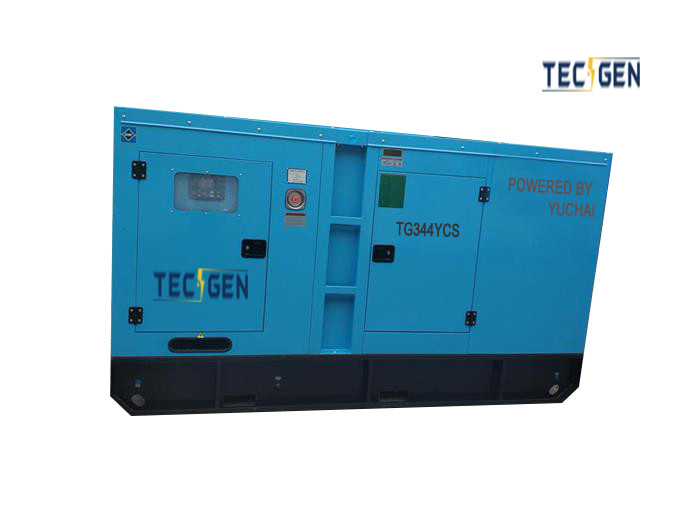

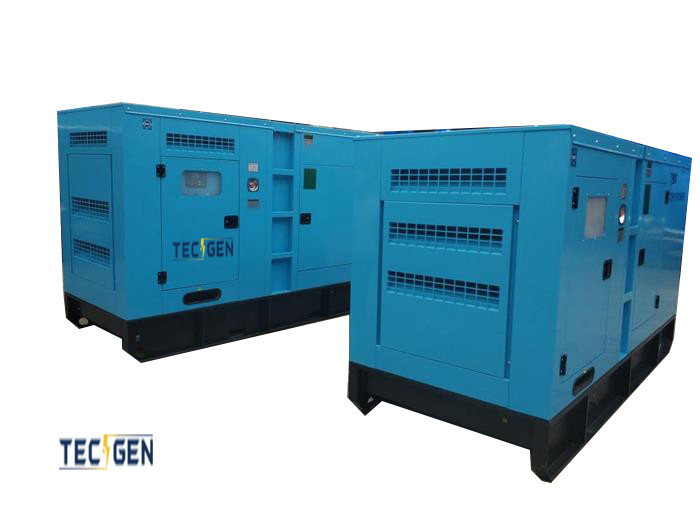

275kW Yuchai Silent Diesel Generator Set Power Efficient
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Usage | Common Units, Standby Unit, Emergency Crew | Landuse Type Of Unit | Low Noise Automation Type |
|---|---|---|---|
| Prime Power | 250kW | Max Power | 275kW |
| Speed | 1500rpm | Voltage | 400/230V |
| Transport Package | Customed | Option | ATS |
| Highlight | 275kW silent diesel generator set,Efficient Yuchai silent diesel generator set,275kW yuchai generator |
||
Product Description
Silent diesel generator set 275kW yuchai generator with generator power efficient
Brief Introduction:
Generator set, or Genset, combines an engine and electrical generator to provide reliable power when the main supply fails. Widely used in construction, mining, telecommunications, and emergency backup systems, it ensures continuity in critical operations. Fueled by diesel, natural gas, or gasoline, the engine converts chemical energy into mechanical power, driving the generator to produce electrical energy via electromagnetic induction.
Global Export Success: Diesel Gensets:
Our diesel gensets have found a home in diverse markets worldwide, including Ethiopia, Venezuela, Singapore, Vietnam, Thailand, Philippines, Malaysia, Indonesia, South Africa, Panamá, and Maroc. Customers from these regions have consistently provided positive feedback on the reliability and performance of our products.
Yuchai Gensent Specifications:
| Technical Specification: | ||
| Max 275kW Yuchai Generator Specification | ||
| Genset Model | TG344YC | TG344YCS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 451.8A | |
| Prime Power | 250kW / 313kVA | |
| Standby Power | 275kW / 344kVA | |
| Engine Model | YC6MK420L-D20 | |
| Alternator Model | TGI314S250 | |
| Controller | DEIF SGC-420 | |
| Weight & Dimensions | ||
| Length (mm) | 2800 | 3800 |
| width (mm) | 1200 | 1400 |
| Height (mm) | 1700 | 1950 |
| Weight (kgs) | 2700 | 3350 |
| Yuchai Diesel Engine Specification | ||
| Brand | Yuchai | |
| Engine Model | YC6MK420L-D20 | |
| Max power | 309kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged and Aftercooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 123 x 145 | |
| Displacement (L) | 10.34 | |
| Cooling | water | |
| Compression Ratio | 16.6:1 | |
| Engine Oil capacity (L) | 13.7 | |
| Coolant Capacity ( In radiator) | 13.7 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 68.5 | |
| 75% Load (L/h) | 51.3 | |
| 50% Load (L/h) | 34.2 | |
| 25% Load (L/h) | 17.1 | |
| Chinese Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI314S250 | |
| Rate Output | 313kVA | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | DEIF | |
| Model | DEIF SGC-420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Characteristics of Yuchai Diesel Genset
- Robust Construction: High-strength alloy cast iron body, forged crankshaft, and connecting rod for durability.
- Advanced Technology: Electronically controlled common rail (BOSCH) and high-efficiency turbocharging for precise fuel injection and optimal air intake.
- Efficient Cooling: Internally cooled oil channel extends piston life by reducing temperature.
- G3 Performance Grade: Meets strict standards for generator set performance.
Yuchai Diesel Genset: Reliable, Efficient, Durable
- Robust Design: High-strength materials for long-lasting performance.
- Advanced Controls: Electronic fuel injection for precise operation.
- Efficient Cooling: Extended component lifespan with internal cooling.
- Grade G3 Compliant: Guaranteed generator set performance.
