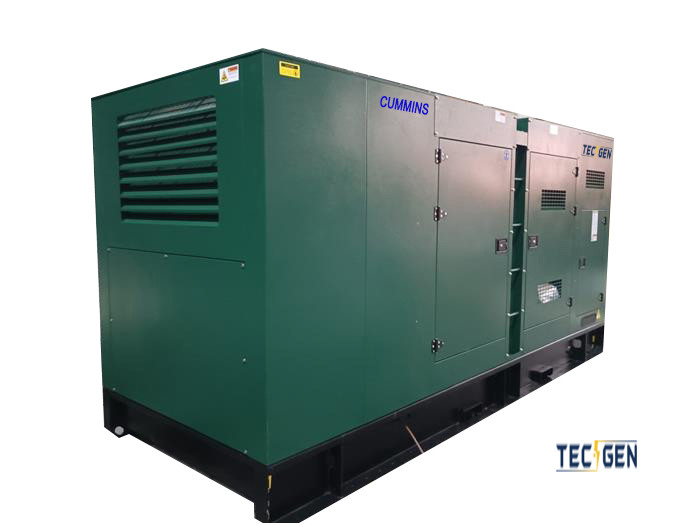

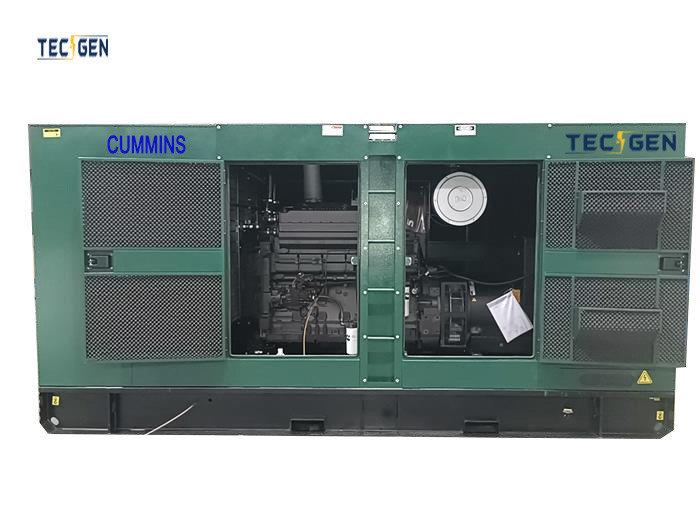

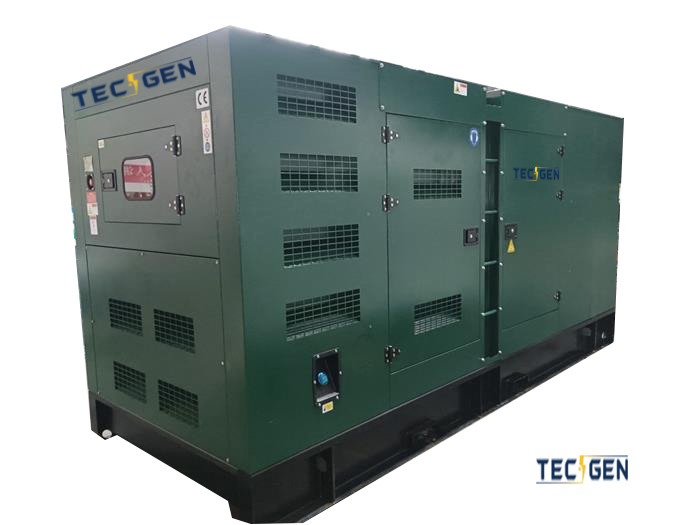

300kW Prime 375kVA Cummins Liquid Cooled Generator With DEIF Controller
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Soundproof | Rate Power | 300kW / 375kVA |
|---|---|---|---|
| Standby Power | 330kW / 413kVA | Frequency | 50Hz |
| Rate Speed | 1500rpm | Governor | Electric |
| Engine Model | NTAA855-G7 | Alternator | Mecc Alte ECO40-1S/4A |
| Highlight | 300kW cummins liquid cooled generator,375kVA cummins liquid cooled generator,DEIF Controller cummins liquid cooled generator |
||
Product Description
300kW Cummins diesel generator prime 375kVA Cummins diesel gensets with DEIF controller
Cummins Diesel Genset Overviews:
Rated Power: 375kVA/300kW, 413kVA/330kW
Frequency: 50/60HZ
Speed: 1500/1800rpm
Phase: 3-phase
Voltage: 110V-480V
Fuel tank: 8 hrs operation
Noise: <80db@7m
Temp range: -5ºC to 50ºC
Water tank: 50ºC eco-friendly
Engine: Cummins Diesel Engine, 4-stroke, water-cooled
Alternator: Brushless/Meccalte/Stamford
Controller: DEIF/Deepsea/Smartgen
Lead time: 15 days standard
Starting: Manual or electronic, adjustable
Packaging: Plastic wrap
Export: Fuzhou or other China ports
Optional: ATS, water/fuel heaters
Cummins Diesel Gensets Features:
- Anti-vibration mountings
- Electric start with maintenance-free battery & charger
- Silencer with flexible connections
- Test report, drawings, & manuals included
300kW Cummins Diesel Generator Technical Parameters:
| Technical Specification: | ||
| Cummins Diesel Generator Specification | ||
| Genset Model | TG413C | TG413CS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 380 / 220V | |
| Phase | 3 | |
| Rate Current | 569.8A | |
| Prime Power | 300kW / 375kVA | |
| Standby Power | 330kW / 413kVA | |
| Engine Model | NTAA855-G7 | |
| Alternator Model | ECO40-1S/4A | |
| Controller | DEIF SGC-420 | |
| Cummins Diesel Generator Weight & Dimensions | ||
| Length (mm) | 3250 | 4010 |
| width (mm) | 1150 | 1630 |
| Height (mm) | 1870 | 2230 |
| Weight (kgs) | 3870 | 4650 |
| Cummins Diesel Engine Specification | ||
| Brand | CCEC Cummins | |
| Engine Model | NTAA855-G7 | |
| Rate /Standby power (kW) | 343 / 377 | |
| Injection | Indirect | |
| Aspiration | Turbocharged and Air-air Intercooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 140 x 152 | |
| Displacement (L) | 14 | |
| Cooling | water | |
| Compression Ratio | 17:1 | |
| Engine Oil capacity (L) | 20.8 | |
| Coolant Capacity ( In radiator) | 20.8 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 85.4 | |
| 75% Load (L/h) | 64.7 | |
| 50% Load (L/h) | 44.6 | |
| 25% Load (L/h) | 24.6 | |
| Mecc Alte Alternator Specification | ||
| Brand | Mecc Alte | |
| Model | ECO40-1S/4A | |
| Rate Output (kW) | 300 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Genset Controller System | ||
| Brand | DEIF | |
| Model | SGC-420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS & RS485 Connection | ||
| Cummins Genset OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Our Advantage – Tecgen Power
- Leading Manufacturer from Fujian, China
- Expert Production & Inspection Team with Over 20 Years' Experience
- Rigorous Pre-Shipment Testing: 100% Idle, Full, & 10% Overload Tests
- ISO9001 Certified Quality Control & CE Compliance
- 1500-Hour Warranty for Unmatched Reliability
- Full Customer Customization Support
Main Products & Power Range
- Diesel Generators: 7-3000KVA, Meeting All Power Needs
- AC Alternators: 2-3000KVA, Ensuring Seamless Power Supply
FAQ
- What's your warranty period?
We offer an 18-month or 1500-hour warranty, whichever comes first. Special projects may extend this period. - Is your generator globally warranted?
Yes, our Cummins, Weichai, Perkins, Yuchai, Deutz, and Volvo generators, along with Leroysomer, Stamford, and Marathon alternators, enjoy global warranty coverage. No worries about after-sales service. - Do you accept OEM orders?
Absolutely, we can accommodate OEM requests. - What payment options do you offer?
We accept 30% T/T upfront, with the remaining 70% due before shipment. We also offer L/C at sight, L/C deferred payment, or West Union. - How long is your delivery time?
Standard delivery is 7-15 days. However, special engines and alternators may extend this period.
