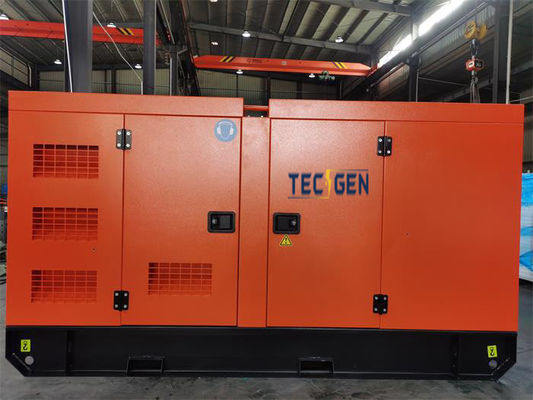

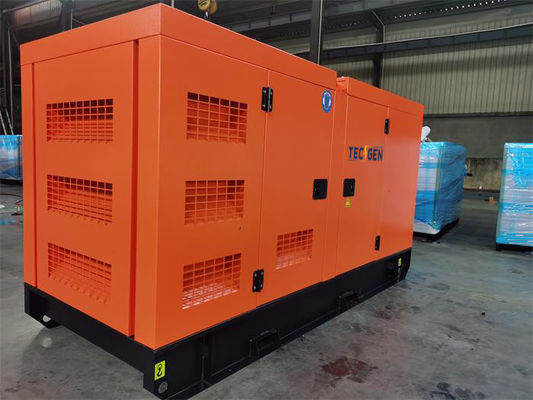

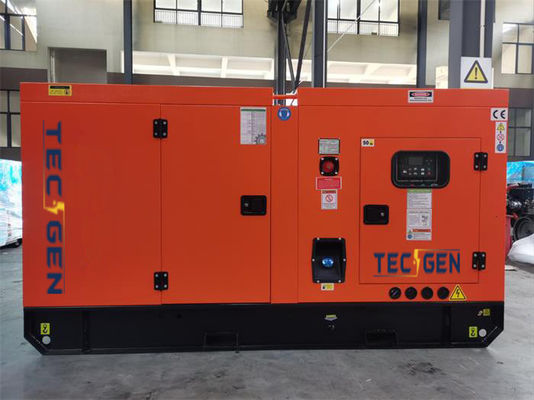

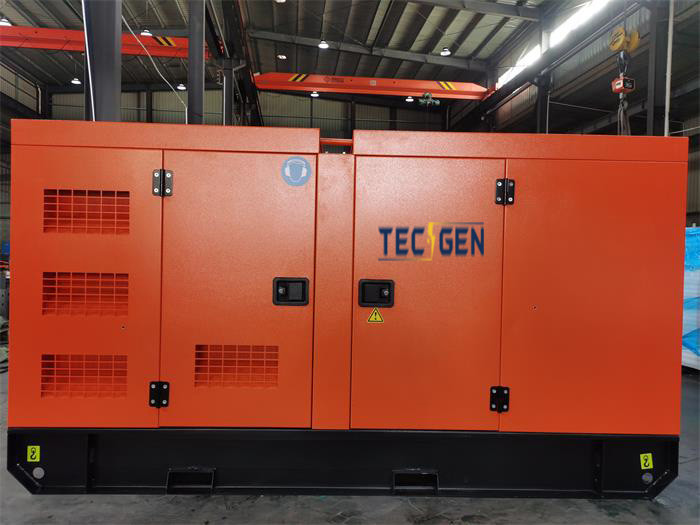

72kW Yuchai Diesiel Generator 60Hz With Soundproof Canopy

Place of Origin Fuzhou, China
Brand Name Tecgen Power
Certification CE
Model Number TG99YCSD6
Minimum Order Quantity 1 unit
Price Negotiation
Packaging Details Stretch film packaging
Delivery Time 15 Days
Payment Terms T/T, L/C, D/A, D/P
Supply Ability 200 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Of Unit Silent Prime Power 72kW
MAX Power 79kW Frequency 60Hz / 1800rpm
Engine YC6B130Z-D20 Yuchai Alternator TAL-A44-D LEROY SOMER
ATS 160A ATS Canopy Color Red Or Customed
Highlight

72kW yuchai diesel generator

,

yuchai diesel generator With Soundproof Canopy

,

72kW yuchai generator

Leave a Message
Product Description

72kW Yuchai diesiel generator 60Hz Yuchai generator with Soundproof Canopy



YC DIESEL/Yuchai Engine General Features:



  • Premier Cost-Efficient Power Solution -



✓ Premier Chinese brand with rich heritage & leading local market share
✓ Power range: 20KVA-3000KVA. Click for more info.
✓ 150+ global after-sales service centers
✓ High-grade alloy cast iron cylinder head for peak reliability
✓ Advanced combustion technology for optimized performance
✓ Features: Energy-saving, eco-friendly, reliable, robust, easy to maintain





Enhanced Features:



  • Radiator: Operates at a maximum of 50°C, belt-driven fans with safety guard for added security.
  • 24V Charge Alternator: Ensures reliable charging.
  • Alternator: Single bearing, IP23 rated with H/H insulation class for durability.
  • Absorber: Ensures efficient operation.
  • Air, Fuel, & Oil Filters: Dry-type for enhanced filtering performance.
  • Circuit Breaker: Safeguards the main line.
  • Control Panel: Standard for easy operation.
  • Batteries & Charger: Two 24V DC maintenance-free batteries with charger and wire for continuous power.
  • Exhaust System: Ripple flex pipe, siphon, and flanged muffler for efficient exhaust.
  • User Manual: Includes comprehensive instructions for ease of use.



72kW Yuchai Diesiel Generator 60Hz With Soundproof Canopy 0



72kW Yuchai Diesel Generator Specifications:



72kW Yuchai Diesel Generator Specifications
Model Engine Alternator Controller Output
TG99YCSD6 YC6B130Z-D20 TAL-A44-D TECGEN 6120U 72kW

Remark:

(1) Payment Terms: FOB Fuzhou Port

(2) Delivery: 15 working days

(3) Payment method: 30% deposit, 70% before delivery

(4) Price Valid time: 30 Days

(5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts



General Date of Yuchai Diesel Generator
Engine Model YC6B130Z-D20 Yuchai
Alternator Mode TAL-A44-D LEROY SOMER
Rated Output 90kVA / 72kW
Standby Output 99kVA / 79kW
Rated Speed 1800 RPM
Frequency 60 HZ
Rated Voltage 240 / 415V
Rated Current 125.2A
Breaker 160A Aisikai Breaker
Power Factor 0.8
Genset Phase 3 phase, 4 – wire connection
Fuel Tank 8 running hours
Noise level dB(A) @7m 70dB(A)
Net Weight 2050KGS
Genset size L2750 * W1400 * H1700mm
Voltage regulation rate ≤±1%
Random voltage variation ≤±1%
Frequency regulation rate ≤±5%
Random frequency variation ≤±0.5%
General specification of Engine for Yuchai Diesel Generator
Manufacture Yuchai
Model YC6B130Z-D20
Rated Output/Speed 88KW/1800RPM
Standby Output/Speed 97KW/1800RPM
Aspiration Turbocharged
Speed Governor Electric
Engine Type 6 cylinders in line
Bore X Stroke 108*125mm
Displacement 6.87 L
Compression ratio 17.5:1
Cooling system Forced Water Cooling Cycle
Rated speed 1800rpm
Fuel Consumption/rated output 19.7 L / h
Fuel Consumption/standby output 21.6 L / h
Starter motor D.C. 24V Electric starting
Alternator (Dynamo) AC24V
General data of Alternator for Yuchai Diesel Generator
Alternator Model TAL-A44-D
Manufacture Leroy Somer
Rate Output 80kW
Rated voltage(V) 220 / 380V
Voltage regulation AVR ± 1.0 %
Working Altitude ≤1000
Control System Brushless Self Excited
Bearing Single Bearing
Insulation System Class H
Protection IP23
Power factor 0.8
Winding connection 3 phase, 4 – wire connection
Standard configuration of Yuchai Diesel Generator
Aluminum water tank 50℃
Controller Panel TECGEN 6120U
Battery Varta Maintenance free Battery
Silencer Included
Dry type air filter, fuel filter, oil filter
24V D.C automatic battery charger
Max. 50 degree celsius radiator
Batteries, rack and cable
Ripple flex exhaust pipe, flange and muffler





72kW Yuchai Diesiel Generator 60Hz With Soundproof Canopy 1



PRODUCT Features:



  • Power Output: Ranges from 16KW to 2200KW for diverse applications.
  • Engine: Fueled by reliable YUCHAI water-cooled diesel engine.
  • Alternator Brands: Top choices include Stamford, Leroy Somer, and Marathon.
  • AMF Panel: Integrated with ATS for seamless operation.
  • Sound & Weatherproof: Optional trailer-type design for enhanced durability.
  • Comprehensive Manual: Includes instructions for engine, alternator, and control system.
  • Battery & Silencer: Comes with two storage batteries and silencer for quiet operation.
  • Fuel Tank: Designed for 8 hours of continuous operation based on the frame.
  • Warranty: 1-year or 1000-hour guarantee for peace of mind.
