120kW Diesel Generator Silent Yuchai Genset 1800rpm For Outdoor Backup Use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Soundproof Unit | Frequency | 60Hz |
|---|---|---|---|
| Rate Speed | 1800RPM | Voltage | 480V |
| Engine | Yuchai YC6B210L-D20 | Alternator | Stamford UCI 274F |
| Engine Type | 6 Cylinder, Turbocharged | Alternator Type | AC, Single Bearing, Brushless |
| Highlight | silent 120kW diesel generator,outdoor backup use 120kW diesel generator,Yuchai genset 120kW diesel generator |
||
Product Description

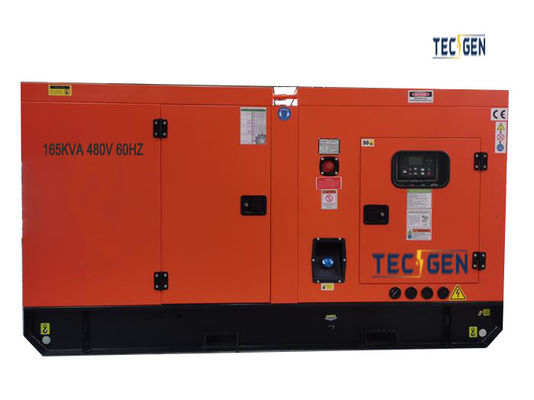

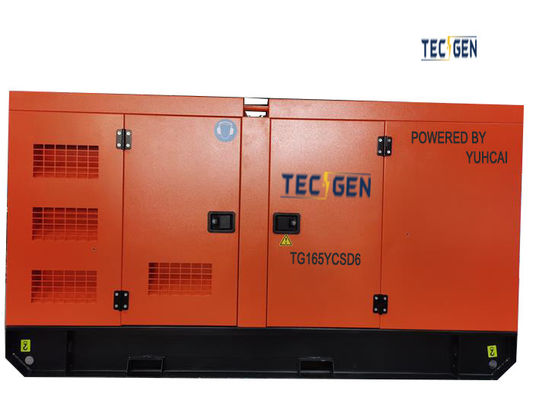

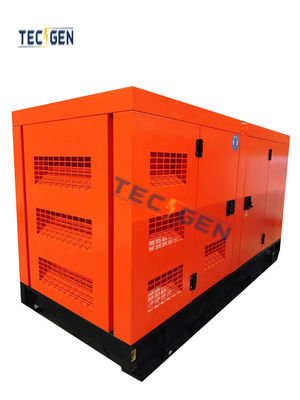

120kW diesel generator silent Yuchai genset 1800rpm for outdoor backup use
Product Description: 132kW Yuchai Generator Set
Introducing our backup 132kW Yuchai gensett, a robust and reliable power solution designed for outdoor use. Yuchai generator offers superior performance and silent operation, making it the perfect choice for your industrial and commercial needs.
Key Features of Yuchai Genset:
- Powerful Backup: With a standby power of 132kW/165kVA and a prime power of 120kW/150kVA, it ensures reliable power backup during emergencies.
- Silent Operation: Its silent design minimizes noise output, making it suitable for noise-sensitive environments.
- Advanced Controller: Equipped with a DEIF SGC-420 controller for precise and reliable generator control.
Standard Features
- Efficient Engine: Powered by the YC6B210L-D20 engine, it ensures smooth and consistent performance.
- High-Quality Generator: Stamford UCI 274F generator for dependable power output.
- Electronic Speed Control: For precise adjustment of generator speed.
- Durable Components: Includes a 50-degree water tank, 24V maintenance-free lead-acid battery, battery rack, and an 8-hour running fuel tank.
60Hz 120kW Yuchai Genset Technical Specifications:
| Technical Parameter for Yuchai Genset | Genset Model | TG165YCSD6 |
| Prime Power | 120kW/150kVA | |
| Standby Power | 132kW/165kVA | |
| Frequency | 60Hz | |
| Rated Voltage | 480V | |
| Power Factor | 0.8 | |
| Governor | Electric | |
| Noise level (7m) | 70db(A) | |
| Engine Brand | Yuchai | |
| Engine Model | YC6B210L-D20 | |
| Alternator Brand | Stamford | |
| Alternator Brand | UCI 274F | |
| Dimension | Open: L2450 x W900 x H1400mm | |
| Silent: L3000 x W1100 x H1600 | ||
| Fuel Tank Capacity | 250L | |
| Engine General Data | Engine Brand | Yuchai |
| Engine Model | YC6B210L-D20 | |
| Rated Output | 138kW | |
| Rated Speed | 1800rpm | |
| Number of Cylinders | 6 | |
| Cylinder arrangement | In-line | |
| Displacement (L) | 6 | |
| Aspiration | Turbocharged | |
| Bore×Stroke (mm×mm) | 108x132 | |
| Compression Ratio | 17:1 | |
| Cooling | Forced Water Cooled | |
| Fuel Consumption at 100% load(L/H) | 31 | |
| Alternator Data | Model | Stamford |
| Brand | UCI 274F | |
| Rate Output | 128kW | |
| Frequency | 60Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Bearing | Single | |
| Voltage Regulator | AVR | |
| Protection Grade | IP 23 | |
| Steady StateVoltage Regulater | 1% | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator | |
|
Control System |
Brand | DEIF |
| Model | SGC-420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS & RS485 Connection | ||
| Optional brands | Deepsea, ComAp, Mebay | |
| Battery Capacity | 12/24V Varta Maintenance free Battery | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
| Circuit breaker | Delixi Brand 300A Breaker | |
| Auto Transfer Switch | 300A ATS Box | |
| Genset Options | Output Socket | |
| Super Silent Canopy for Genset | ||
| Sync Panel | ||
| Water Heater & Engine Heater | ||
| Engine Brand Options | ||
| Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine | ||
Options:
- ATS (Automatic Transfer Switch): Seamless power transition in case of outages.
- Built-In Fuel Tank: For extended operation without frequent refills.
- Water Jacket Heater: Ensures efficient engine start-up in cold weather.
- Oil-Water Separator: Improves fuel efficiency and engine lifespan.
- Output Switch: Convenient for controlling power distribution.
- 3000-Hour Spare Parts Kit: Ensures timely replacements and uninterrupted operation.
- Optional Engine Brands: Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine.
FAQ
Q: What is the prime power rating of this generator set?
A: The prime power rating is 120kW/150kVA.
Q: Does the generator set come with a silent design?
A: Yes, it is specifically designed for outdoor use with silent features.
Q: Can I add a water jacket heater to this generator set?
A: Yes, a water jacket heater is an optional extra that can be added for efficient engine start-up in cold conditions.
