Silent Power Generator 15kW Baudouin Diesel Generator Super Silent Type With Stamford
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type Of Unit | Super Silent | Product | Baudouin Diesel Generator |
|---|---|---|---|
| Speed | 1500rpm | Prime Output | 15kW |
| Standby Output | 16kW | Engine Brand | Baudouin |
| Engine Model | 4M06G20/5 | Voltage | 440V//415V/400V/380V/230V/220V/110V |
| Highlight | Stamford Baudouin diesel generator,silent Baudouin diesel generator,super silent Baudouin diesel generator |
||
Product Description

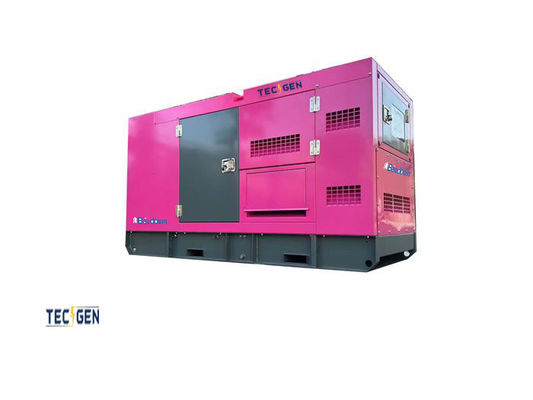

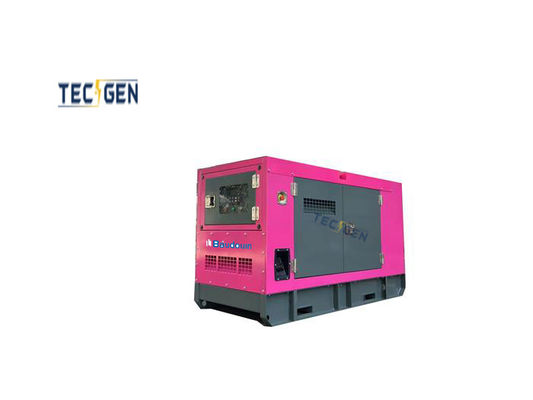

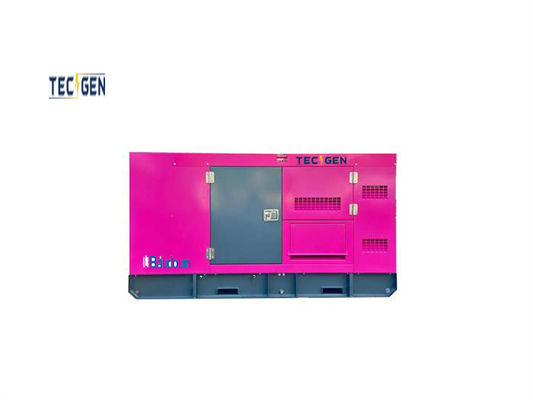

Silent power generator 15kW Baudouin diesel generator super silent type with Stamford
Baudouin Diesel Generator - 15kW Super Silent Type
Product Overview:
Introducing the powerful 15kW Baudouin Diesel Generator, a super silent solution for your backup power needs. This generator is designed for optimal performance and reliability, delivering a consistent power output with minimal noise pollution.
Standard Features:
- Engine: Baudouin 4M06G20/5, 4-cylinder, 4-stroke, naturally aspirated.
- Alternator: Stamford SOL2-G10 18kVA, brushless, single bearing.
- Controller: DEIF SGC-420 multifunction controller.
- Voltage: 240/415V and multiple voltage options.
- Frequency: 50Hz.
- Speed: 1500rpm.
- Power Output: 15kW/18kVA prime, 16kW/20kVA standby.
Key Features:
- Super Silent Design: Ideal for noise-sensitive environments.
- Durability: Engineered for long-term reliability.
- Versatility: Multiple voltage options to suit various applications.
- Easy Maintenance: 24V maintenance-free lead-acid battery and battery rack included.
15kW Baudouin Diesel Generator Technical Specifications:
| 15kW Baudouin Diesel Generator Technical Datasheets | ||||||
| Genset model | TG20WBS | |||||
| Genset Type | Super Silent | |||||
| Rate Voltage | 440V//415V/400V/380V/230V/220V/110V | |||||
| Frequency | 50Hz | |||||
| Speed | 1500rpm | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 29.6A | |||||
| Prime Power | 15kW / 18kVA | |||||
| Standby Power | 16kW / 20kVA | |||||
| Engine | Brand | Weichai Baudouin | ||||
| Model | 4M06G20/5 | |||||
| Alternator | Brand | Stamford | ||||
| Model | SOL2-G1 | |||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Genset Weight | 760kgs | |||||
| Genset Dimensions | L2200 * W 1000 * 1400 | |||||
| Weichai Baudouin Diesel Engine Data | ||||||
| Brand | Isuzu | |||||
| Engine Model | 4M06G20/5 | |||||
| Number of Cylinders | 4 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Natural Intake | |||||
| Displacement | 2.3L | |||||
| Compression ratio | 17.5:1 | |||||
| Bore×Stroke | 89*92mm | |||||
| Speed | 1500rpm | |||||
| Prime Power | 20kW | |||||
| Standby Power | 22kW | |||||
| Speed Governor | MECH or Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 207g/kwh@1500rpm | |||||
| Origin Stamford Alternator Data | ||||||
| Brand | Stamford | |||||
| Model | SOL2-G1 | |||||
| Frequency/speed | 50HZ/1500RPM | |||||
| Rate Output | 18kVA | |||||
| No. of Phase | 3 Phase, 4 Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| DEIF Controller System | ||||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Function | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent | ||
| 10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay | |||
| 16kW ~ 600kW | Deutz | Marathon | DEIF | |||
| 7kW ~ 64kW | Yangdong |
Tecgen
|
||||
| 7kW ~ 76kW | Quanchai | |||||
| 18kW ~ 3000kW | Weichai | |||||
| 8kW ~ 800kW | SDEC | |||||
| 12kW ~ 320kW | FAWDE | |||||
| 18kW ~ 1200kW | Yuchai | |||||
| 11kW ~ 104kW | Beinei Aircooled | |||||
| 7kW ~ 1800kW | Perkins | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage:
Suitable as a backup power source for hospitals, factories, construction sites, and any other facilities requiring continuous and reliable power.
Options:
- ATS (Automatic Transfer Switch) - built-in or wall-mounted.
- Extended fuel tank for 24-hour operation.
- Remote monitoring and startup capabilities.
- Oil-water separator and water jacket heater.
- Output switch and parallel operation for multiple units.
Advantages:
- Brand Options: Choose from a range of engines and alternators, including SDEC, Yuchai, and Stamford.
- Corrosion Resistance: Internal fuel tank designed to prevent corrosion in coastal or damp environments.
- Industrial Grade Components: Delixi or CHNT breakers and industrial-grade mufflers for optimal performance.
FAQ:
Q: What is the noise level of this generator?
A: It is designed as a super silent type, ensuring minimal noise pollution.
Q: Can I use a different brand of engine or alternator?
A: Yes, we offer a range of optional engines and alternators to choose from.
Q: How long can the generator run on a full tank?
A: With the standard tank, it can run for several hours. Optionally, you can add an extended fuel tank for longer runtime.
Why Choose Us?
With an annual production capacity of 3000 units, we pride ourselves on delivering high-quality Baudouin Diesel Generators that meet the strictest standards of performance and reliability. Our generators are backed by exceptional customer service and comprehensive after-sales support, ensuring peace of mind for all our customers.
Contact us today for more information or to place your order!
