Single Phase Dg Cummins Silent Genset 60Hz Cummins Generators 20kW 30kVA Prime
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent Single Phase Genset | Output Type | Single Phase |
|---|---|---|---|
| Frequency | 60Hz / 1800rpm | Voltage | 220V |
| Connection | 1 Phase , 2 Wire | Prime Output | 24kW / 30kVA |
| Standby Output | 26kW / 33kVA | Engine Model | DCEC Cummins 4B3.9-G2 |
| Highlight | Single phase Cummins silent genset,30kVA Cummins silent genset,60Hz Cummins silent genset |
||
Product Description

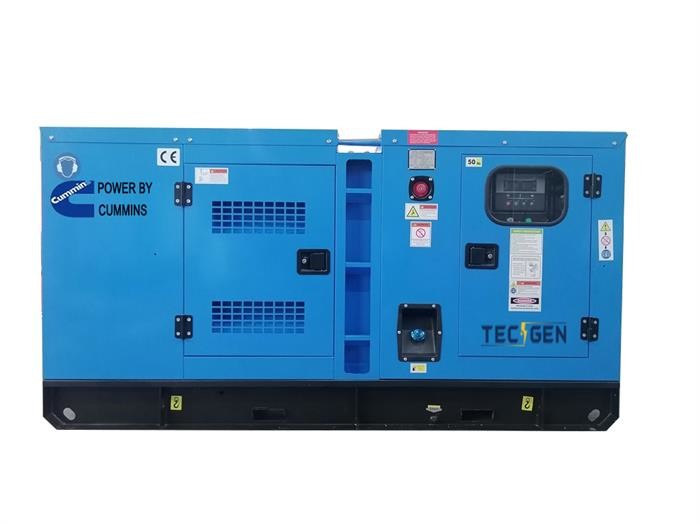

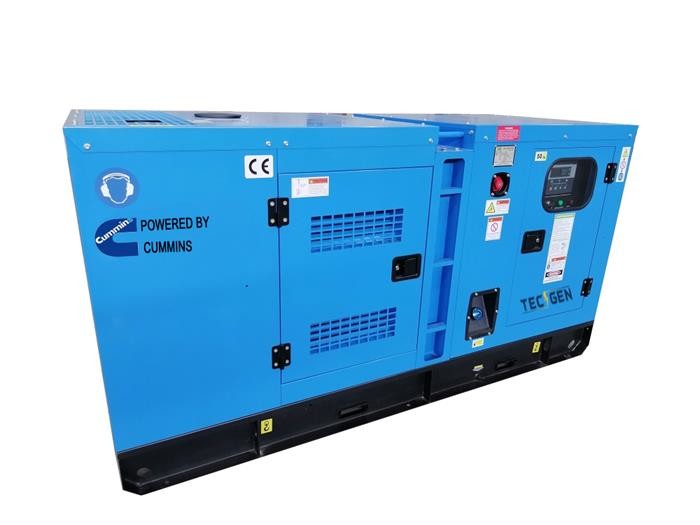

Single phase dg Cummins silent genset 60Hz Cummins Generators 20kW 30kVA Prime
Product Name: 60Hz DG Cummins Single Phase Generator Set
Standard Feature:
- Frequency Stabilized at 60Hz for consistent and reliable power output.
- 1800RPM rated speed for efficient and quiet operation.
- 220V single-phase output with optional 2 or 3 wire configurations.
- Open or silent enclosure options to suit various noise level requirements.
Key Feature:
- Powerful Cummins 4B3.9-G2 engine for robust performance and durability.
- Leroy Somer TAL-A42-C alternator for clean and stable power generation.
- DEEPSEA DSE6020 controller for precise and intelligent generator set control.
- 60Hz DG Cummins genset - the perfect choice for your power needs.
24kW 60Hz dg Cummins Genset Specifications:
| Technical Specification: | ||
| 60Hz DG Cummins Single Phase Genset Specification | ||
| Genset Model | TG33CD6-1 | TG33CSD6-1 |
| Open | Silent | |
| Frequency | 60Hz | |
| Rate Speed | 1800RPM | |
| Voltage | 220V | |
| Phase | Single Phase, 2 or 3 Wires | |
| Rate Current | 136.4A | |
| Prime Power | 24kW / 30kVA | |
| Standby Power | 26kW / 33kVA | |
| Engine Model | Cummins 4B3.9-G2 | |
| Alternator Model | Leroy Somer TAL-A42-C | |
| Controller | DEEPSEA DSE6020 | |
| Weight & Dimensions | ||
| Length (mm) | 1700 | 2300 |
| width (mm) | 830 | 960 |
| Height (mm) | 1300 | 1450 |
| Weight (kgs) | 830 | 1200 |
| Engine Specifications | ||
| Brand | DCEC Cummins | |
| Engine Model | 4B3.9-G2 | |
| Prime/Standby power | 30kW / 33kW | |
| Injection | Indirect | |
| Aspiration | Naturally Aspirated | |
| No. of cylinders | 4 | |
| Speed | 1800RPM | |
| Bore of Stroke (mm) | 102 x 120 | |
| Displacement (L) | 3.9 | |
| Cooling | Water Cooled | |
| Compression Ratio | 18:1 | |
| Engine Oil capacity (L) | 7.2 | |
| Coolant Capacity ( In radiator) | 7.2 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 60Hz | |
| 100% Load (L/h) | 6.7 | |
| 75% Load (L/h) | 5.2 | |
| 50% Load (L/h) | 3.9 | |
| 25% Load (L/h) | 2.7 | |
| Alternator Specification | ||
| Brand | Leory Somer | |
| Model | TAL-A42-C | |
| Rate Output (kVA) | 30 | |
| Speed | 1800RPM | |
| Pole | 4 | |
| Phase No. | Single Phase | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | DEIF | |
| Model | DEIF SGC-420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Usage:
Ideal for a wide range of applications including backup power, industrial use, and off-grid locations where reliable power is crucial.
Advantage:
- High prime power output of 24kW / 30kVA with standby power up to 26kW / 33kVA.
- Indirect injection and naturally aspirated design for improved fuel efficiency and reduced maintenance.
- Water-cooled engine ensures optimal operating temperatures and longer engine life.
- Electric governor maintains constant speed and power output under varying loads.
Option:
- Optional equipment includes ATS box, remote control, daily fuel tank, and various heaters for enhanced functionality and convenience.
- Parallel panel allows for easy connection of multiple generator sets for increased power capacity.
FAQ:
- Q: What is the noise level of the silent type generator set?
A: The silent type generator set is designed to minimize noise output, providing a quiet and comfortable environment for operation. - Q: How does the generator set handle varying loads?
A: The generator set is equipped with an electric governor that maintains constant speed and power output, even under varying loads. - Q: What is the warranty period for the generator set?
A: Please refer to our warranty policy for detailed information on the warranty period and coverage.
