Low Noise Ultrasonic Generators Three Phase Ultra Silent Diesel Generator 22kVA Prime

  • Low Noise Ultrasonic Generators Three Phase Ultra Silent Diesel Generator 22kVA Prime
  • Low Noise Ultrasonic Generators Three Phase Ultra Silent Diesel Generator 22kVA Prime
Place of Origin Fuzhou, China
Brand Name Tecgen Power
Certification CE / SASO / SONCAP / COC / PVOC
Model Number TG25QCS
Minimum Order Quantity One Set
Price $1800 - $2400
Packaging Details Stretch film packaging or Polywooden Package
Delivery Time 20 Days
Payment Terms T/T, L/C, D/A, D/P
Supply Ability 300 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Genset Type Ultrasonic Silent Engine Brand Quanchai
Engine Model QC490D Engine Cylinder 4 Cylinder
Engine Power 24kW Genset Output Prime 22kVA
Output Type 3 Phase Weight 750kgs
Highlight

Low noise ultra silent diesel generator

,

three phase ultra silent diesel generator

,

22kVA ultra silent diesel generator
Leave a Message
Product Description

Low noise ultrasonic generators three phase ultra silent diesel generator 22kVA prime



Product Description: Ultra Silent Diesel Genset with Ultrasonic Generators





Standard Features:



Our ultra silent diesel genset is designed with the latest technology, boasting a rated output of 18kW / 22kVA and a standby output of 20kW / 25kVA. Operating at a standard frequency of 50Hz and a rated voltage of 240/415V, it ensures a stable and reliable power supply for various applications. The three-phase output with a power factor of 0.8 ensures maximum efficiency.





Key Features:



  1. Ultra-Silent Operation: The genset is equipped with advanced noise reduction technology, making it ultra-silent and suitable for noise-sensitive environments.
  2. Ultrasonic Generators: Featuring ultrasonic generators, the genset provides clean and stable power output, minimizing any potential fluctuations.
  3. High Efficiency: With an efficiency rating of 92.50%, the alternator ensures maximum power output with minimal energy loss.
  4. Durable Construction: The diesel engine, made by Quanchai, is known for its durability and reliability, ensuring long-term performance.

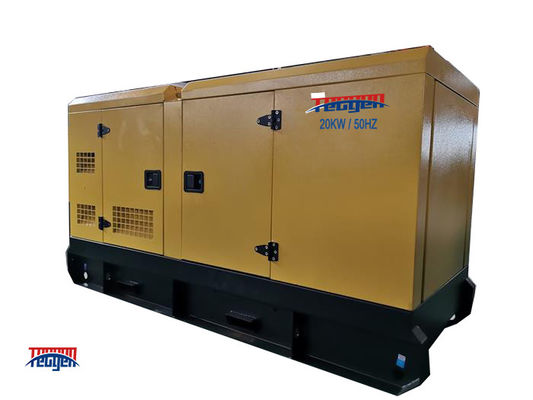

Low Noise Ultrasonic Generators Three Phase Ultra Silent Diesel Generator 22kVA Prime 0



22kVA Ultrasonic Generators Specifications:



QUANCHAI Diesel Generator Set Datasheet
Genset Model TG25QCS
Rated Output 18kW / 22kVA
Standby Output 20kW / 25kVA
Frequency 50Hz
Rated Voltage 240/415V
Output Type Three Phase, 0.8
Rated Current (A) 30.6A
Dimension (mm) L2000 x W900 x H1000
Gross Weight (kg) 750
Diesel Engine Brand Quanchai
Model QC490D
Configuration Four-stroke,Water-cooling,Direct Injection
Rated Power 24kW
Rated Speed (rpm) 1500rpm
Cylinder No. 4
Bore*Stroke (mm) 90 x 105
Displacement(L) 2.67
Intake Natural Intake
Oil Consumption (g/Kw*h) 230@100% load
Starting method 24V DC
Alternator Brand Tecgen
Model TGI184S18
Rated Power 17kW
Materials 100% pure copper
Efficiency 92.50%
Voltage Regulation <=±1
Voltage Regulation Brushless, Self-excitation
Insulation Class H
Option brands Stamford / Leroy Somer / Meccalte
Control System Brand DEIF
Model SGC-420
Working Voltage DC8.0V to DC35.0V, continuous
Overall Dimensions (mm) 233*38.5*173
Panel Cutout (mm) 219*158
Working Condition 0 to 95 % RH. To IEC 60068-2-78
Functions AMF/ATS
RS485 & CAN communication
9 Inlet & 7 Outlet
PLC & BTN
Protections Under-speed
Over-speed
Configurable crank connect
Battery monitoring
Charging alternator
Pre-heat
Coolant temperature
Lube oil pressure
Fuel level detection
Fuel theft detection
ECU communication failure
ECU diagnostic lamp
Option brands Deepsea / Smartgen / ComAp / Mebay
Genset option equipment
Integrated-Fuel-Tank ATS Box / Cabinet
PMG Alternator Sync Panel
Trailer Type Engine Heater
Water Heater Fuel – Water Separator
Maintenance Timetable of Diesel Generating Set
Items Job Content Everyday Every Week Every Month Every Six Month Every Year or 250 Hours
Lubricating System Check Oil leakage √ √ √ √ √
Level of engine oil √ √ √ √ √
Replace Oil Filter       √ √
Engine Olil       √ √
Clean Crankcase box       √ √
Cooling System Check Oil leakage √ √ √ √ √
Radiator Block     √ √ √
Soft Tube and Joint     √ √ √
Fluid   √ √ √ √

Antifreeze and

Anticorrosion

     √ √ √
Belt Status       √ √

Add Grease

lubricant

 Fan and Tensing       √ √
Belt wheel       √ √
Check Driving Belt wheel and pump       √ √
Replace Cooling Liquid Every 12 months
Clean Cooling System
Airflow System Check Oil Gas     √ √ √
Cleaner   √ √ √ √
Pipe Fittings and Joint       √ √
Replace Core of Air Cleaner         √
Fuel System Check Leakage √ √ √ √ √
Quality of Fuel   √ √ √ √
Pump Nozzle         √
Fuel pipe and Joint       √ √
Oil Pump     √ √ √
Discharged Deposition of Fuel Tank     √ √ √
Replace Filter of oil       √ √
Check Nozzle Every Two Years
Adjust Value         √





Usage:



Our ultra silent diesel genset is ideal for a wide range of applications, including but not limited to hospitals, data centers, construction sites, and other critical facilities that require a reliable and quiet power source.

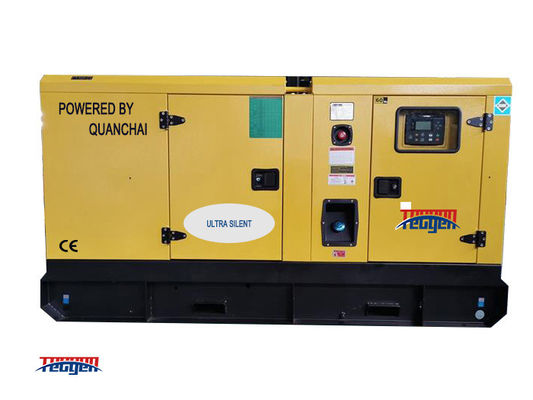

Low Noise Ultrasonic Generators Three Phase Ultra Silent Diesel Generator 22kVA Prime 1



Advantages:



  1. Versatile: With its multiple output options and configurations, the genset can be tailored to meet specific power requirements.
  2. Easy to Maintain: The genset is designed for easy maintenance, with accessible components and a user-friendly control system.
  3. Eco-Friendly: The diesel engine meets strict emission standards, making it an environmentally friendly choice.
  4. Comprehensive Protection: The control system offers a range of protections, including under-speed, over-speed, and fuel theft detection, ensuring the safety of the genset.





Options:





We offer a variety of optional equipment and accessories to enhance the functionality and performance of our ultra silent diesel genset. These include integrated fuel tanks, ATS boxes/cabinets, PMG alternators, sync panels, and more.





FAQ:



  1. Q: How noisy is the genset?
    A: Our genset is designed to be ultra-silent, making it suitable for noise-sensitive environments.
  2. Q: What is the efficiency rating of the alternator?
    A: The alternator has an efficiency rating of 92.50%, ensuring maximum power output with minimal energy loss.
  3. Q: Can the genset be customized to meet specific power requirements?
    A: Yes, our genset offers multiple output options and configurations, allowing it to be tailored to meet specific power requirements.
