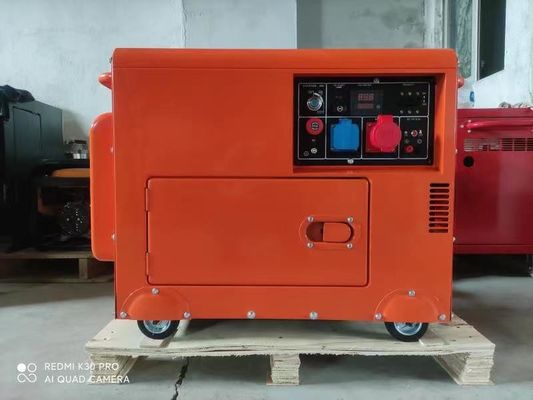

Portable Silent Generators 5KVA 6.5KVA Silent Diesel Generator Air Cooled Generator
| Place of Origin | China |
|---|---|
| Brand Name | TECGEN Air Cooled Diesel Generator |
| Certification | ISO / CE / SASO / SONCAP |
| Model Number | TG |
| Minimum Order Quantity | 10 Units |
| Price | Negotiation |
| Packaging Details | By Carton |
| Delivery Time | 15 working days after received deposit |
| Payment Terms | T/T / L/C |
| Supply Ability | 3000 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Option | ATS | Frequency | 50Hz / 60Hz |
|---|---|---|---|
| Output Type | AC Single Phase/Three Phase | Speed | 3000RPM / 3600RPM |
| Product | Air Cooled Diesel Generator | Type | Silent Type |
| Highlight | 5KVA Portable Silent Generators,Air Cooled Portable Silent Generators,6.5KVA Portable Silent Generators |
||
Product Description
Portable Silent Generators 5KVA 6.5KVA Silent Diesel Generator Air Cooled Generator
Product Description:
TG Air Cooled Diesel Generator is available in two speed options, 3000RPM and 3600RPM, allowing for flexibility in operation and efficiency.
Features:
- Product Name: Portable Diesel Generators
- Product: Air Cooled Diesel Generator
- Model Number: TG
- Option: ATS
- Speed: 3000RPM / 3600RPM
- Output Type: AC Single Phase/Three Phase
- Silent Design
Technical Parameters:
| Model(silent type) | DG3500SE | DG5500SE | DG6500SE |
| Rated frequency[Hz] | 50 | ||
| Rated voltage[V] | 220 | ||
| Rated output power[KW/KVA] | 3 | 4.5 | 6 |
| Max output power[KW/KVA] | 3.3 | 5 | 6.5 |
| Rated rotation speed[rpm] | 3000 | ||
| Power factor[cos@] | 1 | ||
| Phase number | Single phase | ||
| Noise level[Db(A)@7m] | 75 | ||
| Excitation mode | Self-excitation brush | ||
| Engine model | Single cylinder,4-stroke,air-cooled,direct injection, diesel engine | ||
| Engine type | SD178F | SD186FA | SD188F |
| Displacement[ml(cu/in)] | 296 | 418 | 456 |
| Starting system | Electric start | ||
| Fuel | 0#(summer) or -10#(winter) -35#(chillness) diesel oil | ||
| Lube | CDgrade or SAE 10W-30,15W-40 | ||
| Low oil pressure alert system | With | ||
| Indications | Voltage--yes and Current --No | ||
| Overall dimension(LxWxH)[mm] | 950x565x770 | ||
| Dry weight[kg] | 100 | 170 | 175 |
| Guarantee period | 1 year | 1 year | 1 year |
| package | carton | carton | carton |
| 20'' container(pcs) | 72 | 72 | 72 |
Applications:
Other Generators: TECGEN Air Cooled Diesel Generator
The TECGEN Air Cooled Diesel Generator is designed to provide reliable power for a variety of applications. Its brushless alternator with 100% copper winding and an AC alternator ensures its superior performance. It has a minimum order quantity of 1 SET, and is certified by ISO, CE, SASO and SONCAP. The price is negotiable, and delivery time is 15 working days after received deposit. Payment terms are T/T or L/C, and the supply ability is 3000 units per month. This generator has a frequency of 50Hz or 60Hz, and a speed of 1500RPM or 1800RPM. It is a perfect solution for a variety of power needs.
Customization:
TECGEN Air Cooled Diesel Generator
Brand Name: TECGEN
Model Number: TG
Place of Origin: China
Certification: ISO / CE / SASO / SONCAP
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: By Carton
Delivery Time: 15 working days after received deposit
Payment Terms: T/T / L/C
Supply Ability: 3000 Units Per Month
Frequency: 50Hz / 60Hz
Support and Services:
We provide technical support and service for our customers. Our technical support team has the expertise and knowledge to assist with any issues or inquiries. We offer online support and technical assistance to help our customers troubleshoot and resolve any technical issues. We also provide technical advice and guidance on the installation and use of our products. Additionally, our service team can assist with any product returns or replacements.
