3 Cylinders 9kVA Perkins Diesel Generator Silent Genset Powered By Perkins Engine
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG10PS |
| Minimum Order Quantity | 1 unit |
| Price | 3937$ - 4355$ |
| Packaging Details | Stretch film packaging |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C, D/A, D/P |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent Type | Engine Brand | Perkins |
|---|---|---|---|
| Engine Model | 403D-11G | Alternator Brand | Stamford |
| Alternator Model | PI 044E | Voltage | 220 / 380V |
| Frequency | 50Hz | Prime Power | 7kW / 9kVA |
| Highlight | silent genset Perkins diesel generator,3 Cylinders Perkins diesel generator,9kVA Perkins diesel generator |
||
Product Description

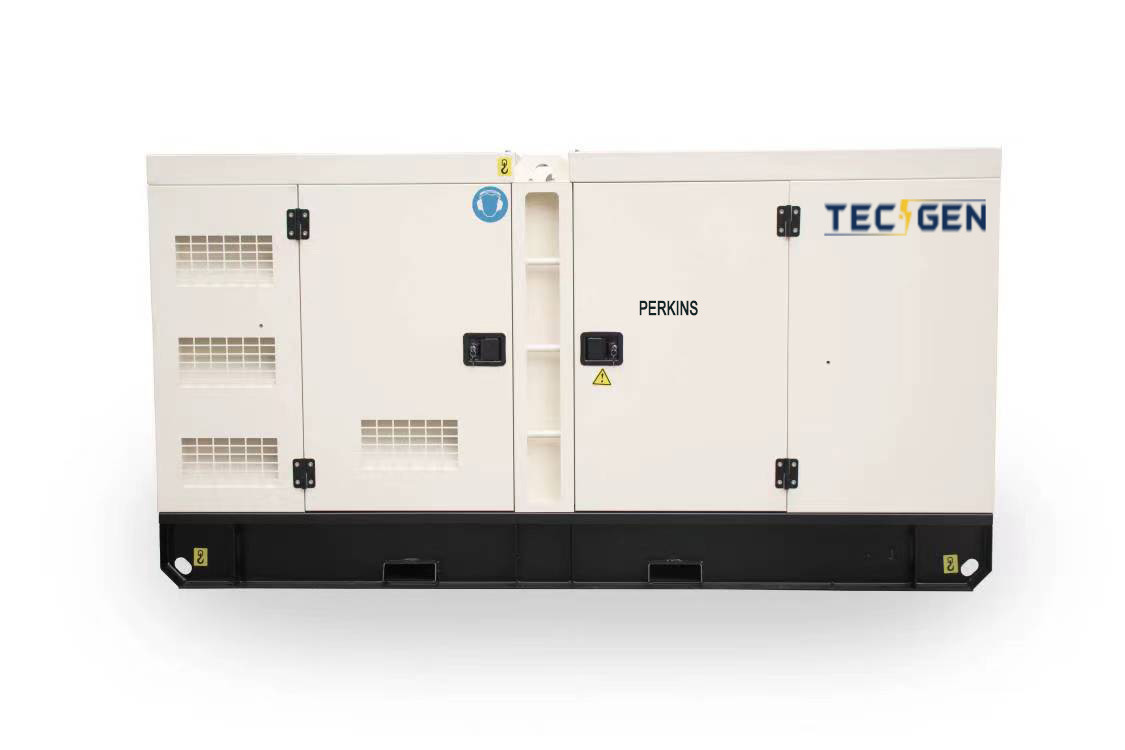

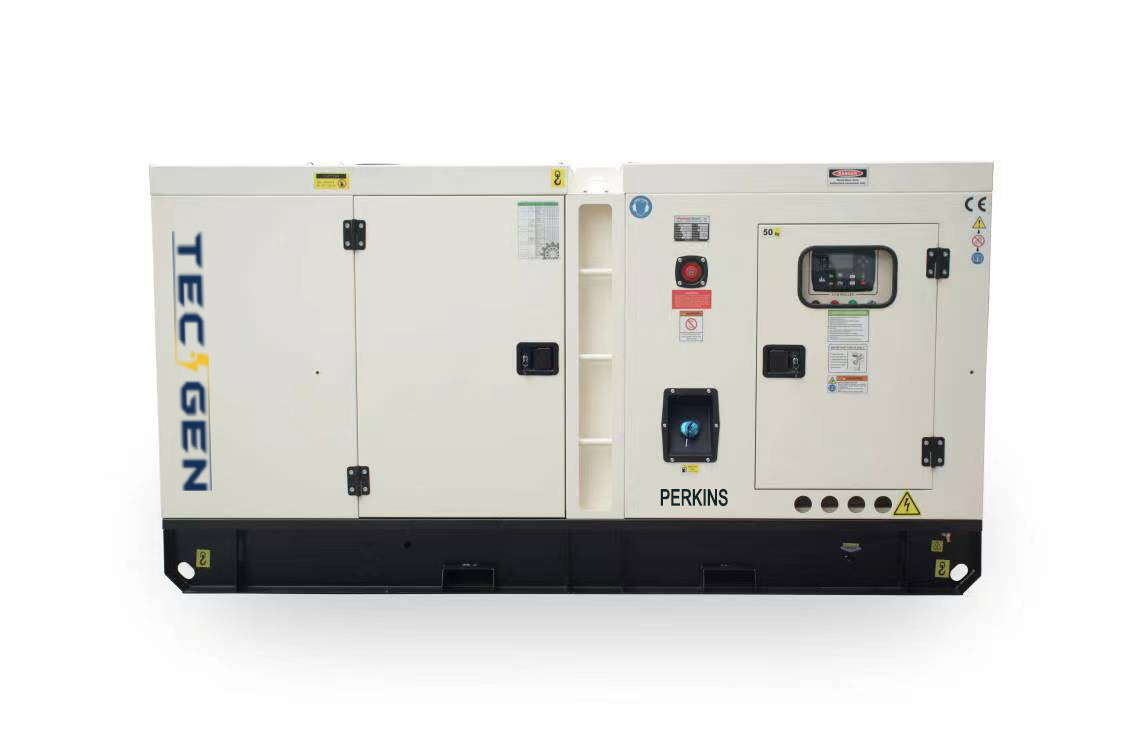

3 Cylinders 9kVA Perkins diesel generator silent genset powered by Perkins engine
Our 3 Cylinders 9kVA Perkins Diesel Generator is a robust and reliable solution for backup power needs. It comes standard with a Perkins 403D-11G engine, a Stamford PI 044E alternator, and a DEIF SGC-420 controller. The Perkins diesel generator offers a rated output of 9kVA, perfect for various applications.
Key Features
- Powerful Engine: The Perkins 403D-11G engine with 3 cylinders delivers consistent and reliable power.
- Efficient Alternator: The Stamford PI 044E alternator converts engine power into stable electrical output efficiently.
- Advanced Controller: The DEIF SGC-420 controller provides advanced monitoring and protection features.
- Compact Design: With a compact size of L1900 * W7320 * H1100mm, it is easy to transport and install.
3 Cylinders 9kVA Perkins Diesel Generator Specifications:
| 3 Cylinders 9kVA Perkins Diesel Generator Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG10PS | 403D-11G | PI 044E | DEIF SGC-420 | 9kVA | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of 9kVA Perkins Land-based Diesel Generator Set | |||||
| Engine Model | 403D-11G | ||||
| Alternator Mode | PI 044E | ||||
| Rated Output | 7kW / 9kVA | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 220 / 380V | ||||
| Rated Current | 13.7A | ||||
| Breaker | 63A Aisikai Breaker | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 70dB(A) | ||||
| Net Weight | 570KGS | ||||
| Genset size | L1900 * W7320 * H1100mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for 9kVA Perkins Land-based Diesel Generator Set | |||||
| Manufacture | Perkins (Wuxi) | ||||
| Model | 403D-11G | ||||
| Rated Output/Speed | 8.6KW/1500RPM | ||||
| Standby Output/Speed | 9.5KW/1500RPM | ||||
| Aspiration | Naturally aspirated | ||||
| Speed Governor | MECH or Electric | ||||
| Engine Type | 3 cylinders in line | ||||
| Bore X Stroke | 77*81mm | ||||
| Displacement | 1.131 L | ||||
| Compression ratio | 23:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 2.6 L / h | ||||
| Fuel Consumption/standby output | 2.9 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for 9kVA Perkins Land-based Diesel Generator Set | |||||
| Alternator Model | PI 044E | ||||
| Manufacture | Stamford | ||||
| Rate Output | 10kVA | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of 9kVA Perkins Land-based Diesel Generator Set | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Usage
The 3 Cylinders 9kVA Perkins Diesel Generator is suitable for a wide range of applications, including backup power for homes, businesses, construction sites, and events. It can provide stable and reliable power during power outages or emergencies.
Advantages
- Reliability: Built with high-quality components, it ensures reliable and dependable operation.
- Efficiency: The efficient engine and alternator provide optimal fuel economy and low maintenance costs.
- Ease of Use: With simple controls and automatic functions, it is easy to operate and maintain.
- Low Noise: The Perkins diesel generator operates at a low noise level of 70dB(A) @ 7m, making it suitable for both indoor and outdoor use.
Options
Customize your Perkins diesel generator with the following options:
- Integrated Fuel Tank
- Water Heater
- ATS (Automatic Transfer Switch)
- PMG Generator
- SYNC Function
- 12/24 Hours Fuel Tank
- 3000 hours Spare Parts
FAQs
- Q: What is the noise level of this Perkins generator?
A: The noise level is 70dB(A) @ 7m, making it suitable for most applications. - Q: How long does it take to deliver the Perkins Diesel Generator?
A: Delivery time is typically 15 working days. - Q: What is the voltage regulation rate?
A: The voltage regulation rate is ≤±1%, ensuring stable output voltage.
