60Hz 131kVA Cummins Diesel Genset Open Type Diesel Generator For Emergency Power
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG144CD6 |
| Minimum Order Quantity | 1 unit |
| Price | 8100$ - 8600$ |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 20 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 50 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type Of Unit | Open Type | Engine Brand | DCEC Cummins |
|---|---|---|---|
| Engine Model | 6BTA5.9-G2 | Engine Power | 120kW |
| Frequency | 60Hz | Speed | 1800rpm |
| Genset Rate Power | 131kVA / 105kW | HS CODE | 8502120000 |
| Highlight | 60Hz Cummins diesel genset,open Cummins diesel genset,emergency power Cummins diesel genset |
||
Product Description

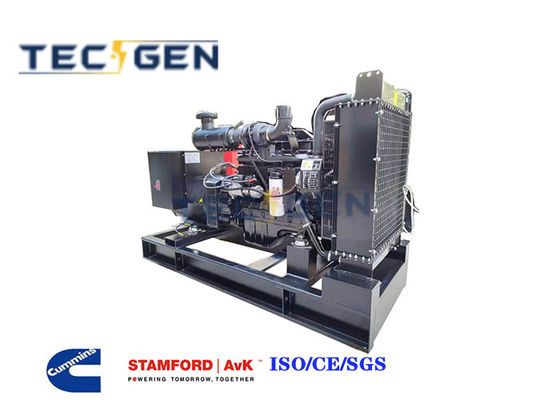

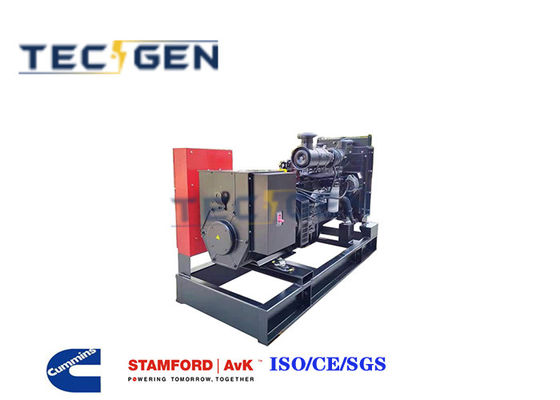

60Hz 131kVA Cummins diesel genset open type diesel generator for emergency power
Standard Features:
Our 60Hz 131kVA Cummins Diesel Genset, model TG144CSD6, offers an extensive list of standard features to ensure reliability and durability. Featuring a 6BTA5.9-G2 Cummins diesel engine, this genset produces 105kW of prime power and 116kW of standby power at 1800rpm. The Leroy Somer TAL-A44-H alternator ensures a stable power output with a frequency of 60Hz.
Key Features:
- Powerful Cummins Engine: The 6BTA5.9-G2 Cummins diesel engine is designed for high performance and efficiency.
- Silent Operation Option: Ideal for noise-sensitive environments, this genset operates with minimal noise.
- Versatile Voltage Output: Supports multiple voltage outputs, including 480V, 240V, 230V, 220V, and 110V.
- Reliable Leroy Somer Alternator: Ensures stable and clean power output.
- DEIF Controller: Provides advanced control and monitoring functions.
60Hz 131kVA Cummins Diesel Genset Specifications:
| 60Hz 131kVA Cummins Diesel Genset Technical Datasheets | ||||||
| Genset model | TG144CD6 | |||||
| Genset Type | Open | |||||
| Rate Voltage | 480V//240V/230V/220V/110V | |||||
| Frequency | 60Hz | |||||
| Speed | 1800rpm | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 157.6A | |||||
| Prime Power | 105kW / 131kVA | |||||
| Standby Power | 116kW / 144kVA | |||||
| Engine | Brand | DCEC Cummins | ||||
| Model | 6BTA5.9-G2 | |||||
| Alternator | Brand | Leory Somer | ||||
| Model | TAL-A44-H | |||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Genset Weight | 1500kgs | |||||
| Genset Dimensions | L2450 * W 1100 * 1530 | |||||
| DCEC Cummins Diesel Engine Data | ||||||
| Brand | Dongfeng Cummins Engine Co., ltd | |||||
| Engine Model | 6BTA5.9-G2 | |||||
| Number of Cylinders | 6 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Turbocharged & Water-Air Intercooled | |||||
| Displacement | 5.9L | |||||
| Compression ratio | 17.3:1 | |||||
| Bore×Stroke | 102*120mm | |||||
| Speed | 1800rpm | |||||
| Prime Power | 120kW | |||||
| Standby Power | 132kW | |||||
| Speed Governor | Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 211g/kwh@1800rpm | |||||
| Leroy Somer Alternator Data | ||||||
| Brand | Leroy Somert | |||||
| Model | TAL-A44-H | |||||
| Frequency/speed | 60HZ/1800RPM | |||||
| Rate Output | 110kW | |||||
| No. of Phase | 3 Phase, 4 Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| DEIF Controller System | ||||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Function | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent | ||
| 10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay | |||
| 16kW ~ 600kW | Deutz | Marathon | DEIF | |||
| 7kW ~ 64kW | Yangdong |
Tecgen
|
||||
| 7kW ~ 76kW | Quanchai | |||||
| 18kW ~ 3000kW | Weichai | |||||
| 8kW ~ 800kW | SDEC | |||||
| 12kW ~ 320kW | FAWDE | |||||
| 18kW ~ 1200kW | Yuchai | |||||
| 11kW ~ 104kW | Beinei Aircooled | |||||
| 7kW ~ 1800kW | Perkins | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage:
The 60Hz 131kVA Cummins Diesel Genset is perfect for a variety of applications, including emergency backup power, construction sites, industrial facilities, and remote locations.
Advantages:
- Efficient and Reliable: The Cummins diesel engine and Leroy Somer alternator provide unmatched reliability and efficiency.
- Low Noise Option: The silent design ensures minimal noise pollution, making it suitable for noise-sensitive environments.
- Versatile Voltage Options: Supports multiple voltage outputs to cater to different power needs.
- Advanced Control: The DEIF controller offers advanced monitoring and control functions for ease of use.
Options:
- Customized Voltage Output: We offer customized voltage outputs to suit your specific requirements.
- Additional Accessories: Available accessories include transfer switches, batteries, and fuel tanks.
- Extended Warranty: Extended warranty options are available for added peace of mind.
FAQ:
Q: What is the power output of this genset?
A: The prime power output is 105kW, and the standby power is 116kW.
Q: Is this genset silent?
A: Yes, this is a silent diesel genset designed for minimal noise pollution.
Q: What engine brand does this genset use?
A: This genset uses a Cummins diesel engine, model 6BTA5.9-G2.
Q: What alternator brand is used?
A: The alternator is a Leroy Somer TAL-A44-H model.
