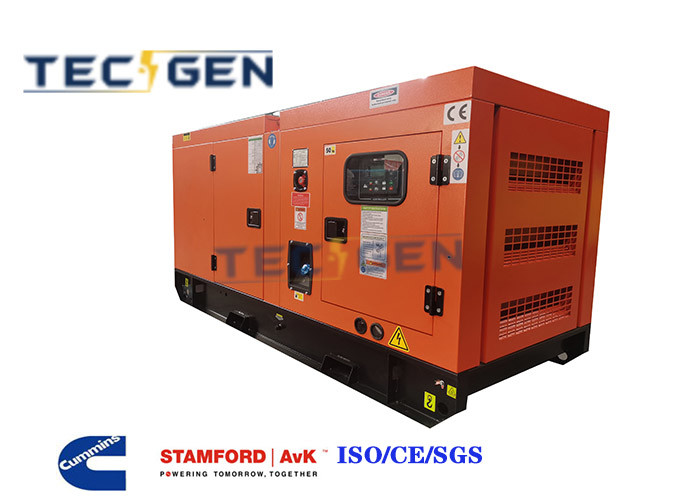

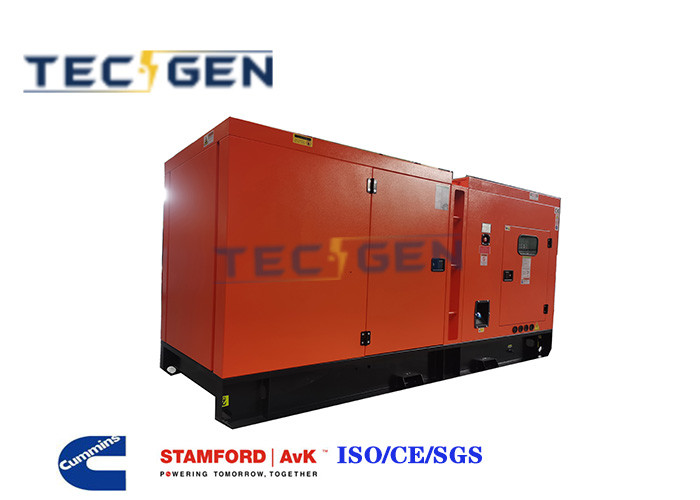

Silent 145kVA Cummins Diesel Genset 60Hz Diesel Generator For Continuous Use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Soundproof | Product | Cummins Diesel Genset |
|---|---|---|---|
| Frequency | 60Hz | Speed | 1800rpm |
| Engine Brand | Cummins | Engine Model | 6BTAA5.9-G2 |
| Alternator Model | TAL-A44-J | Prime Power | 116kW / 145kVA |
| Highlight | continuous use Silent Cummins diesel genset,145kVA Silent Cummins diesel genset,60Hz Silent Cummins diesel genset |
||
Product Description
Silent 145kVA Cummins diesel genset 60Hz diesel generator for continuous use
Standard Features:
Our Silent 145kVA Cummins Diesel Genset offers the utmost in reliability and durability. This unit boasts a robust 6-cylinder Cummins diesel engine, model 6BTAA5.9-G2, with a turbocharged and water-air intercooled system to ensure smooth operation under any condition. The Leroy Somer alternator, model TAL-A44-J, produces clean and stable electricity with a frequency of 60Hz, making it suitable for a wide range of applications.
Key Features:
- Powerful Engine: The Cummins diesel engine provides up to 145kVA prime power and 160kVA standby power, ideal for both commercial and industrial use.
- Silent Operation: The enclosed design ensures minimal noise emission, making it suitable for noise-sensitive environments.
- Efficient Cooling: Forced water cooling ensures the engine remains at optimal temperatures, even under heavy loads.
- Durable Construction: IP23 protection grade and H-grade insulation ensure long-lasting performance.
Silent 145kVA Cummins Diesel Genset Specifications:
| Silent 145kVA Cummins Diesel Genset Technical Datasheets | ||||||
| Genset model | TG160CSD6 | |||||
| Genset Type | Silent | |||||
| Rate Voltage | 480V//440V/240/230V/220V/110V | |||||
| Frequency | 60Hz | |||||
| Speed | 1800rpm | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 174.4A | |||||
| Prime Power | 116kW / 145kVA | |||||
| Standby Power | 128kW / 160kVA | |||||
| Engine | Brand | DCEC Cummins | ||||
| Model | 6BTAA5.9-G2 | |||||
| Alternator | Brand | Leroy Somer | ||||
| Model | TAL-A44-J | |||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Genset Weight | 2000kgs | |||||
| Genset Dimensions | L2900 * W 1100 * 1530 | |||||
| DCEC Cummins Diesel Engine Data | ||||||
| Brand | Dongfeng Cummins Engine Co., ltd | |||||
| Engine Model | 6BTAA5.9-G2 | |||||
| Number of Cylinders | 6 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Turbocharged & Water-Air Intercooled | |||||
| Displacement | 5.9L | |||||
| Compression ratio | 17.3:1 | |||||
| Bore×Stroke | 102*120mm | |||||
| Speed | 1800rpm | |||||
| Prime Power | 120kW | |||||
| Standby Power | 132kW | |||||
| Speed Governor | Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 211g/kwh@1800rpm | |||||
| Leroy Somer Alternator Data | ||||||
| Brand | Leroy Somer | |||||
| Model | TAL-A44-J | |||||
| Frequency/speed | 60HZ/1800RPM | |||||
| Rate Output | 120kW | |||||
| No. of Phase | 3 Phase, 4 Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| DEIF Controller System | ||||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Function | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent | ||
| 10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay | |||
| 16kW ~ 600kW | Deutz | Marathon | DEIF | |||
| 7kW ~ 64kW | Yangdong |
Tecgen
|
||||
| 7kW ~ 76kW | Quanchai | |||||
| 18kW ~ 3000kW | Weichai | |||||
| 8kW ~ 800kW | SDEC | |||||
| 12kW ~ 320kW | FAWDE | |||||
| 18kW ~ 1200kW | Yuchai | |||||
| 11kW ~ 104kW | Beinei Aircooled | |||||
| 7kW ~ 1800kW | Perkins | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage:
The Silent 145kVA Cummins Diesel Genset is perfect for powering critical equipment in hospitals, data centers, construction sites, and other facilities where a reliable backup power source is essential. It can also be used as a primary power source in remote locations.
Advantages:
- Reliability: Cummins engines are renowned for their durability and reliability.
- Versatility: With multiple voltage options, this generator can power a wide range of equipment.
- Easy Maintenance: Simple design and easy access to components make maintenance a breeze.
- Eco-Friendly: Low fuel consumption and clean emissions contribute to a greener environment.
Options:
- Custom voltage configurations
- Extended warranty packages
- Remote monitoring and control systems
FAQs:
Q: What is the noise level of this generator?
A: Due to its silent design, the noise level is significantly lower than that of conventional generators.
Q: How often does this generator require maintenance?
A: Regular maintenance is essential to ensure optimal performance. Our team recommends scheduled inspections and oil changes as per the maintenance manual.
Q: Can this generator be used as a primary power source?
A: Yes, the Silent 145kVA Cummins Diesel Genset is capable of providing continuous power, making it suitable for use as a primary power source.
Classification Synonyms:
- Diesel Generator Set
- Cummins Power Generator
- Silent Diesel Generator
- Backup Power Supply
- Industrial Generator
- Emergency Power System
- Commercial Generator
- Stable Power Generator
- Turbocharged Generator
- Power Backup Solution
With its Silent 145kVA Cummins Diesel Genset, our product offers unparalleled performance and reliability, ensuring that your power needs are met efficiently and silently. Browse our range of diesel generators today and find the perfect solution for your needs.
