Standby 19kVA Silent Perkins Genset 3 Cylinder Perkins Genset With Wall Mounted Ats
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Standby Perkins Diesel Genset | Type | Silent Enclosed |
|---|---|---|---|
| Frequency | 60Hz / 1800rpm | Voltage | 208V |
| ATS | 63A Wall Mounted ATS | Standby Genset Output | 19kVA |
| Controller | DEIF SGC-420 | ATS Brand | Aisikai |
| Highlight | wall mounted ats Standby Perkins genset,19kVA Standby Perkins genset,3 cylinder Standby Perkins genset |
||
Product Description

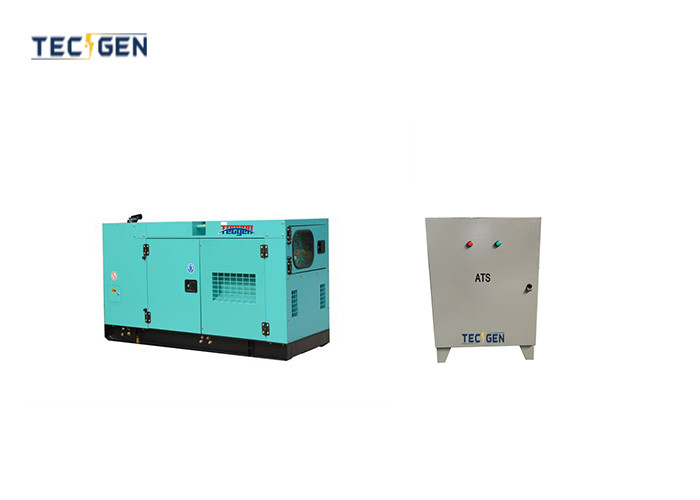

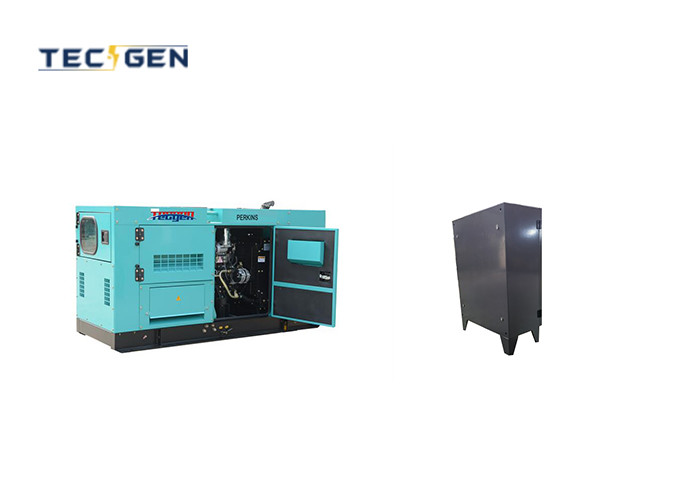

Standby 19kVA silent Perkins genset 3 cylinder Perkins genset with wall mounted ats
Product Description:
Our Standby 19kVA Silent Perkins Genset is a high-quality generator that combines the power of a Perkins engine with advanced technology. With a compact and silent design, this genset is ideal for various applications, providing reliable backup power in residential, commercial, and industrial settings.
Standard Features:
- The Perkins 403A-15G2 engine ensures efficient and dependable performance.
- The Leroy Somer TAL-A40-E alternator delivers consistent power output.
- The DEIF SGC-420 controller panel offers advanced monitoring and control capabilities.
- The included Varta maintenance-free battery ensures hassle-free operation.
- The aluminum water tank keeps the genset cool even under high temperatures.
- The 63A Aisikai breaker provides protection against overloads.
Key Features:
- Reliable Power: The Perkins engine, renowned for its durability and performance, guarantees a stable power supply in any situation.
- Silent Operation: Our genset is designed with a soundproof enclosure, which reduces noise levels to a mere 68dB(A) at a distance of 7 meters.
- Compact Design: The compact size and smart dimensions of the genset make it easy to install and transport.
- Precise Control: The DEIF SGC-420 controller allows for seamless monitoring of key parameters and ensures efficient performance.
- Fuel Efficiency: With a low fuel consumption rate of 4.9 L/h at rated output, our genset provides cost-effective operation.
Standby 19kVA Silent Perkins Genset Specifications:
| Standby 19kVA Silent Perkins Genset Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG19PSD6 | 403A-15G2 | TAL-A40-E | DEIF SGC-420 | 19kVA | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of Standby 19kVA Silent Perkins Engine Genset | |||||
| Engine Model | 403A-15G2 | ||||
| Alternator Mode | TAL-A40-E | ||||
| Standby Output | 19kVA | ||||
| Rated Speed | 1800 RPM | ||||
| Frequency | 60 HZ | ||||
| Rated Voltage | 208V | ||||
| Rated Current | 50.0A | ||||
| ATS | 63A ATS Box | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 68dB(A) | ||||
| Net Weight | 750KGS | ||||
| Genset size | L1900 * W730 * H1100mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for Standby 19kVA Silent Perkins Engine Genset | |||||
| Manufacture | Perkins (Wuxi) | ||||
| Model | 403A-15G2 | ||||
| Rated Output/Speed | 16.33KW/1800RPM | ||||
| Standby Output/Speed | 17.96KW/1800RPM | ||||
| Aspiration | Naturally aspirate | ||||
| Speed Governor | MECH or Electric | ||||
| Engine Type | 3 cylinders in line | ||||
| Bore X Stroke | 84*90mm | ||||
| Displacement | 1.496 L | ||||
| Compression ratio | 22.5:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1800rpm | ||||
| Fuel Consumption/rated output | 4.9 L / h | ||||
| Fuel Consumption/standby output | 5.9 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for Standby 19kVA Silent Perkins Engine Genset | |||||
| Alternator Model | TAL-A40-E | ||||
| Manufacture | Leroy Somer | ||||
| Rate Output | 14kW | ||||
| Rated voltage(V) | 208V | ||||
| Speed | 1800rpm | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of Standby 19kVA Silent Perkins Engine Genset | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Usage:
This Standby 19kVA Silent Perkins Genset is suitable for a wide range of applications, including:
- Residential: Ensure uninterrupted power supply during blackouts, keeping your home appliances running smoothly.
- Commercial: Provide backup power for small businesses, offices, and retail establishments, preventing data loss and maintaining productivity.
- Industrial: Support critical operations in factories, construction sites, and manufacturing facilities, minimizing downtime and maximizing productivity.
Advantages:
- Seamless Integration: Perkins genset can be easily integrated into existing power systems, offering a seamless backup power solution.
- Quick Start: The D.C. 24V electric starter motor ensures reliable and swift engine startup, saving time during emergencies.
- Voltage and Frequency Regulation: The genset maintains stable voltage and frequency levels, protecting sensitive equipment from damage.
- Easy Maintenance: The included dry type air filter, fuel filter, and oil filter simplify maintenance and prolong the lifespan of the genset.
- Trusted Brand: Perkins and Leroy Somer are renowned manufacturers known for their quality and reliability, ensuring long-term satisfaction.
Options:
To further enhance your power solution, we offer the following optional features:
- Integrated Fuel Tank: Extend the runtime of the genset with an integrated fuel tank for prolonged power supply.
- Water Heater: Ensure optimal performance in cold environments with a water heater that prevents freezing.
- ATS (Automatic Transfer Switch): Enable automatic switching between the mains and generator power during outages.
- PMG Generator: Enhance the generator's stability and performance with a Permanent Magnet Generator (PMG).
- SYNC Function: Synchronize multiple generators for increased power capacity and redundancy.
- 12/24 Hours Fuel Tank: Choose between a fuel tank capacity suitable for 12 or 24 hours of continuous operation.
- 3000 Hours Spare Parts: Have peace of mind with spare parts readily available for extended usage.
FAQs:
Q1: Can this genset be used for sensitive electronic equipment?
A1: Absolutely. The genset provides stable voltage and frequency regulation, ensuring safe operation for sensitive electronics.
Q2: What is the warranty period for this genset?
A2: We offer a standard warranty of 18 months for our Standby 19kVA Silent Perkins Genset.
Q3: Can I install the genset outdoors?
A3: Yes, the genset is designed with a silent enclosure that offers protection against weather conditions, allowing for outdoor installation.
Q4: How often should I perform maintenance on the genset?
A4: Regular maintenance is recommended at intervals specified in the user manual or as advised by a certified technician.
Invest in the Standby 19kVA Silent Perkins Genset today and enjoy uninterrupted power supply whenever you need it. Don't compromise on reliability and performance – choose the trusted Perkins generator for your power needs.
