210kW Emergency Industrial Diesel Generator 60Hz Diesel Genset For Industrial Power Supply
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG289CSD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Cummins Diesel Generators | Type Of Genset | Silent |
|---|---|---|---|
| Frequency | 60Hz / 1800rpm | Voltage | 480V//240V/230V/220V/208V/110V |
| AMPS | 316.3A | Engine Model | DCEC 6LTAA8.9-G2 |
| Alternator | Leroy Somer TAL-A46-C | Genset Prime Power | 210kW / 263kVA |
| Highlight | Industrial power supply industrial diesel generator,60Hz industrial diesel generator,210kW genset industrial diesel generator |
||
Product Description

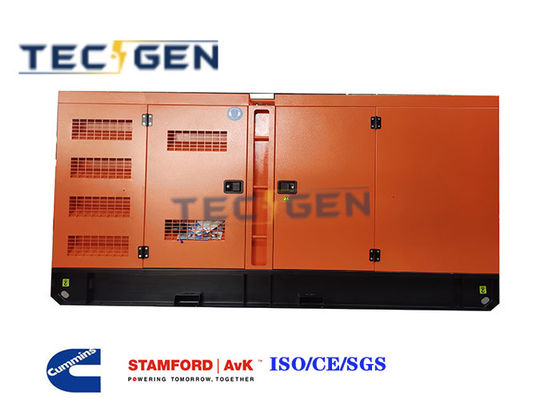

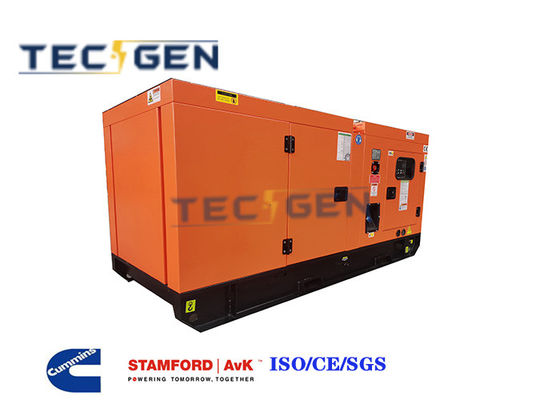

210kW emergency industrial diesel generator 60Hz diesel genset for industrial power supply
Standard Features:
The 210kW Emergency Industrial Diesel Generator, model TG289CSD6, is a reliable and efficient power solution for industrial applications. Its silent design ensures minimal noise disturbance, while the 480V//240V/230V/220V/208V/110V multi-voltage output caters to various power requirements. Operating at 60Hz and 1800rpm, this generator provides a stable and continuous power supply.
Key Features:
- High Power Output: With a prime power of 210kW and standby power of 231kW, it can handle heavy loads with ease.
- Durable Engine: Powered by a DCEC Cummins 6LTAA8.9-G2 diesel engine, it offers long-lasting performance and durability.
- Efficient Alternator: The Leory Somer TAL-A46-C alternator ensures stable voltage output and excellent power quality.
- Advanced Controller: The DEIF SGC-420 controller offers automatic main failure detection, battery charging, and emergency stop functions.
210kW Emergency Industrial Diesel Generator Specifications:
| 210kW Emergency Industrial Diesel Generator Technical Datasheets | ||||||
| Genset model | TG289CSD6 | |||||
| Genset Type | Silent | |||||
| Rate Voltage | 480V//240V/230V/220V/208V/110V | |||||
| Frequency | 60Hz | |||||
| Speed | 1800rpm | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 316.3A | |||||
| Prime Power | 210kW / 263kVA | |||||
| Standby Power | 231kW / 289kVA | |||||
| Engine | Brand | DCEC Cummins | ||||
| Model | 6LTAA8.9-G2 | |||||
| Alternator | Brand | Leory Somer | ||||
| Model | TAL-A46-C | |||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Genset Weight | 830kgs | |||||
| Genset Dimensions | L2200 * W 1000 * 1400 | |||||
| DCEC Cummins Diesel Engine Data | ||||||
| Brand | Dongfeng Cummins Engine Co., Ltd | |||||
| Engine Model | 6LTAA8.9-G2 | |||||
| Number of Cylinders | 6 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Turbocharged & Air-Air Intercooled | |||||
| Displacement | 8.9L | |||||
| Compression ratio | 16.6:1 | |||||
| Bore×Stroke | 114*145mm | |||||
| Speed | 1800rpm | |||||
| Prime Power | 235kW | |||||
| Standby Power | 258kW | |||||
| Speed Governor | MECH or Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 197g/kwh@1800rpm | |||||
| Leory Somer Alternator Data | ||||||
| Brand | Leory Somer | |||||
| Model | TAL-A46-C | |||||
| Frequency/speed | 60HZ/1800RPM | |||||
| Rate Output | 230kVA | |||||
| No. of Phase | 3 Phase, 4 Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| DEIF Controller System | ||||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Function | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent | ||
| 10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay | |||
| 16kW ~ 600kW | Deutz | Marathon | DEIF | |||
| 7kW ~ 64kW | Yangdong |
Tecgen
|
||||
| 7kW ~ 76kW | Quanchai | |||||
| 18kW ~ 3000kW | Weichai | |||||
| 8kW ~ 800kW | SDEC | |||||
| 12kW ~ 320kW | FAWDE | |||||
| 18kW ~ 1200kW | Yuchai | |||||
| 11kW ~ 104kW | Beinei Aircooled | |||||
| 7kW ~ 1800kW | Perkins | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage:
Ideal for use in hospitals, data centers, factories, and other critical facilities where power reliability is paramount. The 210kW Emergency Industrial Diesel Generator can be used as a backup power source or a primary power source in remote locations.
Advantages:
- Rapid Deployment: Ready for use in emergencies, with quick and easy installation.
- Low Maintenance: Reliable components and advanced diagnostics reduce maintenance costs.
- Versatile Voltage Output: Supports a wide range of voltage options to meet different equipment needs.
- Environmentally Friendly: Efficient diesel engine design minimizes emissions and fuel consumption.
Options:
- Customization: Customizable paint schemes and additional safety features are available upon request.
- Maintenance Contracts: Extended maintenance contracts offer peace of mind and guaranteed service.
FAQs:
- Q: How long does it take to install the generator?
- A: Installation time depends on the complexity of the site and the availability of resources, but typically ranges from 24 to 48 hours.
- Q: What is the fuel consumption rate?
- A: At 100% load, the fuel consumption is approximately 197g/kwh.
Synonyms for Industrial Diesel Generator:
- Industrial diesel power generator
- Emergency diesel generator
- Backup diesel generator
- Standby diesel generator
- Industrial power generator
- Heavy-duty diesel generator
- Diesel backup power
- Diesel emergency power
- Industrial power supply
- Diesel-powered generator
