55kW 60Hz Diesel Generator Perkins Diesel Generators With Stamford Alternator Open Type
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Open Type | Product | Perkins Diesel Power Genset |
|---|---|---|---|
| Frequency | 60Hz | Engine Brand | Perkins |
| Engine Model | Perkins 1103A-33TG2 | Cylinder Of Engine | 3 Cylinder |
| Prime Output | 55W / 69 KVA | Max Output | 61kW / 76kVA |
| Highlight | 60Hz diesel generators Perkins,Perkins diesel generators 55kW,Open type diesel generators Perkins |
||
Product Description

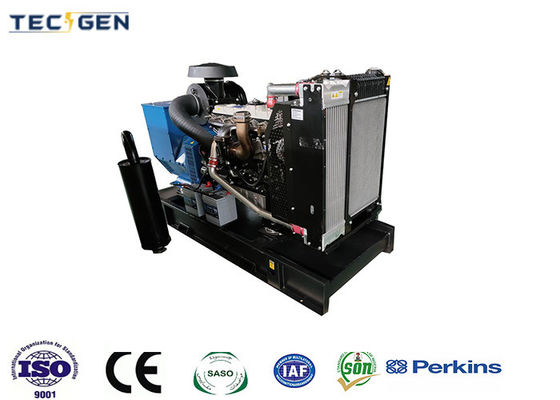

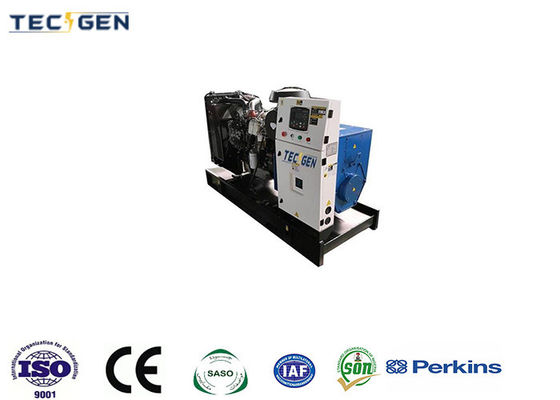

55kW 60Hz diesel generator Perkins diesel generators with Stamford alternator open type
Standard Features:
- Frequency: 60Hz
- Voltage: 220V
- Phase: 3 Phase, 4 Wires
- Rated Current: 180.4A
- Prime Power: 55W / kVA
- Standby Power: 61kW / 76kVA
- Engine Model: Perkins 1103A-33TG2
- Alternator Model: Stamford UCI 224F
- ATS: 250A Auto Transfer Switch Box
- Controller: SGC-420
Key Features:
- Reliable Power: Our 55kW Diesel Engine Genset delivers consistent and dependable power, ensuring uninterrupted performance for your applications.
- High Efficiency: Powered by the Perkins 1103A-33TG2 engine, this genset offers efficient fuel consumption, optimizing cost-effectiveness and reducing operational expenses.
- Robust Construction: Built with durable materials and advanced engineering, this genset is designed to withstand harsh environments and deliver long-lasting performance.
- Easy Operation: The SGC-420 controller system provides user-friendly control, allowing for effortless operation and monitoring of the genset.
- Versatile Applications: Suitable for a wide range of industries, including businesses, events, and emergency backup power, this genset offers versatile power solutions to meet various needs.
60Hz Generator Set Datasheets:
| Technical Specification: | ||
| 60Hz Generator Set Specification | ||
| Genset Model | TG76PD6 | TG76PD6 |
| Open | Silent | |
| Frequency | 60Hz | |
| Voltage | 220V | |
| Phase | 3 Phase, 4 Wires | |
| Rate Current | 180.4A | |
| Prime Power | 55W / 69kVA | |
| Standby Power | 61kW / 76kVA | |
| Engine Model | Perkins 1103A-33TG2 | |
| Alternator Model | Stamford UCI 224F | |
| ATS | 250A Auto Transfer Switch Box | |
| Controller | SGC-420 | |
| Weight & Dimensions | ||
| Length (mm) | 2060 | 2690 |
| width (mm) | 800 | 1050 |
| Height (mm) | 1200 | 1300 |
| Weight (kgs) | 1060 | 1500 |
| Engine Specification | ||
| Brand | Perkins | |
| Engine Model | 1103A-33TG2 | |
| Prime power | 65kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged | |
| No. of cylinders | 3 | |
| Bore of Stroke (mm) | 105 x 127 | |
| Displacement (L) | 3.3 | |
| Cooling | water | |
| Compression Ratio | 17.25:1 | |
| Engine Oil capacity (L) | 4.4 | |
| Coolant Capacity ( In radiator) | 10.2 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 60Hz | |
| 100% Load (L/h) | 16.6 | |
| 75% Load (L/h) | 12.5 | |
| 50% Load (L/h) | 8.8 | |
| 25% Load (L/h) | 5.1 | |
| Alternator Specification | ||
| Brand | Stamford | |
| Model | UCI 224F | |
| Rate Output | 58kW | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Tecgen | |
| Model | TG6120 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, ABB Breaker, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Generator Heater, Parallel Panel, Fuel-water separator, Super Silent type, Trailer Type, 3000Hours Spare Parts | ||
Usage:
The 55kW Diesel Engine Genset is perfect for powering your critical equipment and ensuring uninterrupted operations. It is ideal for businesses, construction sites, data centers, events, and other applications that require reliable and efficient power supply.
Options:
Customize your genset with optional equipment including an ATS Box, Switch Box, ABB Breaker, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Generator Heater, Parallel Panel, Fuel-water separator, Super Silent type, Trailer Type, and 3000 Hours Spare Parts. These options provide added convenience and meet specific requirements.
FAQ:
Q: What is the power output of this genset?
A: The 55kW Diesel Engine Genset delivers a prime power output of 55kW and a standby power output of 61kW.
Q: What applications is this genset suitable for?
A: This genset is versatile and can be used in various applications, including businesses, construction sites, data centers, events, and as emergency backup power.
Q: Does the genset come with a controller system?
A: Yes, the genset is equipped with the user-friendly SGC-420 controller system for easy operation and monitoring.
In summary, our 55kW Diesel Engine Genset is a reliable and efficient power solution designed for 60Hz applications. Choose our genset for dependable power generation and a competitive edge in the market.
