900kW Chinese Power Genset Yuchai Diesel Generator For Manufacturing Plants
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Open Type | Speed | 1500rpm |
|---|---|---|---|
| Rate Output | 900kW / 1125kVA | Standby Output | 990kW / 1238kVA |
| Engine Brand | Yuchai | Engine Model | YC12VTD1500-D30 |
| Test Items | 10%, 25%, 50%, 75%, 100%, 110% Load | Option Type | Container Silent Type |
| Highlight | Manufacturing Plants Yuchai diesel generator,Chinese Yuchai diesel generator,900kW Yuchai diesel generator |
||
Product Description

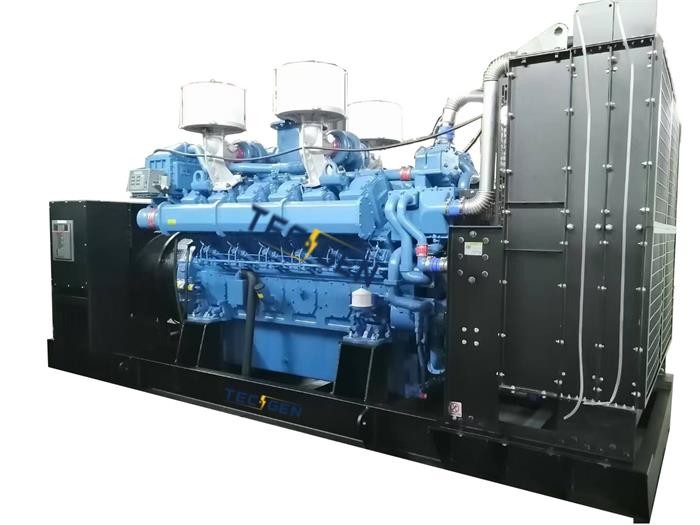

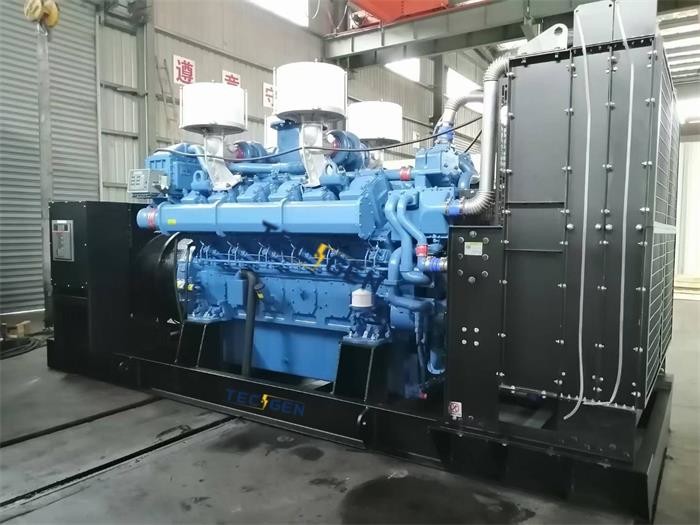

900kW Chinese power genset Yuchai diesel generator for manufacturing plants
Introducing our high-performance 900kW Chinese Power Genset, the TG1238YC. This state-of-the-art genset is specifically designed to meet your power generation requirements, offering exceptional reliability, efficiency, and versatility. With its advanced features and cutting-edge technology, this genset is the perfect choice for various industrial and commercial applications.
Standard Features:
- The TG1238YC model boasts a robust power output of 900kW / 1125kVA, ensuring a steady and reliable power supply.
- It operates at a frequency of 50Hz, making it suitable for use in regions with this standard.
- The rated voltage of 240 / 415V allows for seamless integration into existing power systems.
- With its electric governor, this genset ensures precise and stable power generation.
- The dimensions of L4800 x W2100 x H2300 (mm) provide a compact and space-saving design, ideal for versatile installation options.
- Weighing 11000kg, this genset is built with durability and longevity in mind.
Key Features:
- The Yuchai YC12VTD1500-D30 diesel engine powers this genset, delivering maximum engine power of 1100kW. With its 12-cylinder configuration and four-stroke, water-cooling, direct injection technology, it guarantees exceptional performance and fuel efficiency.
- The Tecgen TGI404S900 alternator, made with 100% pure copper materials, ensures efficient power generation. With an efficiency rating of 92.50% and brushless, self-excitation technology, it provides reliable and stable electrical output.
- The DEIF SGC-420 control system offers comprehensive protection and monitoring features, including under-speed and over-speed protection, battery monitoring, and coolant temperature and fuel level detection. It allows for seamless integration with other systems and offers options for communication and control.
900kW Chinese Power Genset Specifications:
| 900kW Chinese Power Genset | |||||||||||||
| Genset Model | TG1238YC | ||||||||||||
| Rated Power | 900kW / 1125kVA | ||||||||||||
| Standby Power | 990kW / 1238kVA | ||||||||||||
| Governor | Electric | ||||||||||||
| Frequency | 50Hz | ||||||||||||
| Rated Voltage | 240 / 415V | ||||||||||||
| Rated Current (A) | 1565.2A | ||||||||||||
| Dimension (mm) | L4800 x W2100 x H2300 | ||||||||||||
| Gross Weight (kg) | 11000 | ||||||||||||
| Diesel Engine | Brand | Yuchai | |||||||||||
| Model | YC12VTD1500-D30 | ||||||||||||
| Configuration | Four-stroke,Water-cooling,Direct Injection | ||||||||||||
| Max Engine Power | 1100kW | ||||||||||||
| Rated Speed (rpm) | 1500rpm | ||||||||||||
| Cylinder No. | 12 | ||||||||||||
| Bore*Stroke (mm) | 152 x 180 | ||||||||||||
| Displacement(L) | 39.2 | ||||||||||||
| Intake | Turbocharged and Intercooled | ||||||||||||
| Fuel Consumption (g/Kw*h) | 218@100% load | ||||||||||||
| Starting method | 24V DC / 200Ah | ||||||||||||
| Alternator | Brand | Tecgen | |||||||||||
| Model | TGI404S900 | ||||||||||||
| Rated Power | 900kW | ||||||||||||
| Materials | 100% pure copper | ||||||||||||
| Efficiency | 92.50% | ||||||||||||
| Voltage Regulation | <=±1 | ||||||||||||
| Voltage Regulation | Brushless, Self-excitation | ||||||||||||
| Insulation Class | H | ||||||||||||
| Option brands | Stamford / Leroy Somer / Meccalte | ||||||||||||
| Control System | Brand | DEIF | |||||||||||
| Model | SGC-420 | ||||||||||||
| Working Voltage | DC8.0V to DC35.0V, continuous | ||||||||||||
| Overall Dimensions (mm) | 233*38.5*173 | ||||||||||||
| Panel Cutout (mm) | 219*158 | ||||||||||||
| Working Condition | 0 to 95 % RH. To IEC 60068-2-78 | ||||||||||||
| Functions | AMF/ATS | ||||||||||||
| RS485 & CAN communication | |||||||||||||
| 9 Inlet & 7 Outlet | |||||||||||||
| PLC & BTN | |||||||||||||
| Protections | Under-speed | ||||||||||||
| Over-speed | |||||||||||||
| Configurable crank connect | |||||||||||||
| Battery monitoring | |||||||||||||
| Charging alternator | |||||||||||||
| Pre-heat | |||||||||||||
| Coolant temperature | |||||||||||||
| Lube oil pressure | |||||||||||||
| Fuel level detection | |||||||||||||
| Fuel theft detection | |||||||||||||
| ECU communication failure | |||||||||||||
| ECU diagnostic lamp | |||||||||||||
| Option brands | Deepsea / Smartgen / ComAp / Mebay | ||||||||||||
| Genset option equipment | |||||||||||||
| Integrated-Fuel-Tank | ATS Box / Cabinet | ||||||||||||
| PMG Alternator | Sync Panel | ||||||||||||
| Trailer Type | Engine Heater | ||||||||||||
| Water Heater | Fuel – Water Separator | ||||||||||||
| Maintenance Timetable of Diesel Generating Set | |||||||||||||
| Items | Job | Content | Everyday | Every Week | Every Month | Every Six Month | Every Year or 250 Hours | ||||||
| Lubricating System | Check | Oil leakage | √ | √ | √ | √ | √ | ||||||
| Level of engine oil | √ | √ | √ | √ | √ | ||||||||
| Replace | Oil Filter | √ | √ | ||||||||||
| Engine Olil | √ | √ | |||||||||||
| Clean | Crankcase box | √ | √ | ||||||||||
| Cooling System | Check | Oil leakage | √ | √ | √ | √ | √ | ||||||
| Radiator Block | √ | √ | √ | ||||||||||
| Soft Tube and Joint | √ | √ | √ | ||||||||||
| Fluid | √ | √ | √ | √ | |||||||||
|
Antifreeze and Anticorrosion |
√ | √ | √ | ||||||||||
| Belt Status | √ | √ | |||||||||||
|
Add Grease lubricant |
Fan and Tensing | √ | √ | ||||||||||
| Belt wheel | √ | √ | |||||||||||
| Check | Driving Belt wheel and pump | √ | √ | ||||||||||
| Replace | Cooling Liquid | Every 12 months | |||||||||||
| Clean | Cooling System | ||||||||||||
| Airflow System | Check | Oil Gas | √ | √ | √ | ||||||||
| Cleaner | √ | √ | √ | √ | |||||||||
| Pipe Fittings and Joint | √ | √ | |||||||||||
| Replace | Core of Air Cleaner | √ | |||||||||||
| Fuel System | Check | Leakage | √ | √ | √ | √ | √ | ||||||
| Quality of Fuel | √ | √ | √ | √ | |||||||||
| Pump Nozzle | √ | ||||||||||||
| Fuel pipe and Joint | √ | √ | |||||||||||
| Oil Pump | √ | √ | √ | ||||||||||
| Discharged | Deposition of Fuel Tank | √ | √ | √ | |||||||||
| Replace | Filter of oil | √ | √ | ||||||||||
| Check | Nozzle | Every Two Years | |||||||||||
| Adjust | Value | √ | |||||||||||
Usage:
This 900kW Chinese Power Genset is designed to provide reliable and uninterrupted power for a wide range of applications. It is suitable for industrial settings, including manufacturing plants, construction sites, and mining operations. Additionally, it caters to commercial establishments, such as hotels, hospitals, and shopping centers, ensuring a stable power supply during critical operations.
Advantages:
- Exceptional Power Output: With a rating of 900kW, this genset delivers substantial power to meet your energy demands efficiently.
- Reliable Performance: The Yuchai diesel engine and Tecgen alternator provide reliable and consistent power generation, ensuring uninterrupted operations.
- Advanced Control System: The DEIF control system offers comprehensive protection and monitoring, enhancing safety and facilitating seamless integration with other equipment.
- Space-Saving Design: The compact dimensions of the genset allow for flexible installation, even in areas with limited space.
- Customizable Options: Choose from reputable brands like Stamford, Leroy Somer, Meccalte, Deepsea, Smartgen, ComAp, or Mebay for the alternator and control system to meet your specific requirements.
FAQ:
Q: What is the maximum power output of the TG1238YC genset?
A: The TG1238YC genset has a maximum power output of 900kW, ensuring ample energy supply for various applications.
Q: Can this genset be used in regions with a frequency of 60Hz?
A: The TG1238YC operates at a frequency of 50Hz, which is not compatible with regions using a 60Hz frequency.
Q: Is the control system compatible with other monitoring equipment?
A: Yes, the DEIF SGC-420 control system offers options for communication and control, allowing seamless integration with other monitoring systems.
In summary, our 900kW Chinese Power Genset, the TG1238YC, combines exceptional power output, reliable performance, and advanced control features. With its compact design, customizable options, and compatibility with various applications, it is the ideal choice for fulfilling your power generation needs. Invest in this genset to ensure uninterrupted power supply and enhance the efficiency of your operations. Trust in our expertise and experience in delivering high-quality gensets.
