Cummins 150kW Genset Silent Type Generator Set With Brushless Type Alternator
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG433CSD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent | Frequency | 60Hz |
|---|---|---|---|
| Speed | 1800rpm | Engine | CCEC Cummins |
| Model | NTA855-G3 | Cylinder | 6 Cylinder |
| Alternator | Stamford/Leory Somer/MECCALTE/TECGEN | Controller | DEIF/Smartgen/Comap/Deepsea |
| Highlight | Silent type generator set,Cummins 150kW genset,Brushless type alternator genset |
||
Product Description

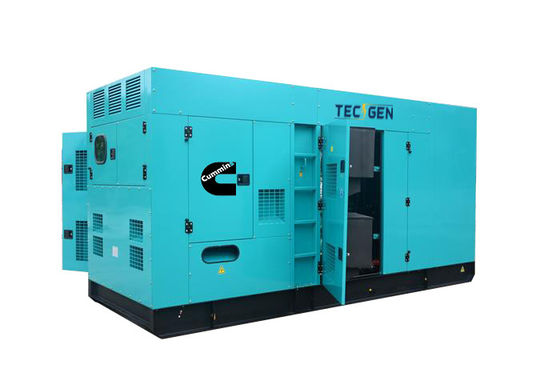

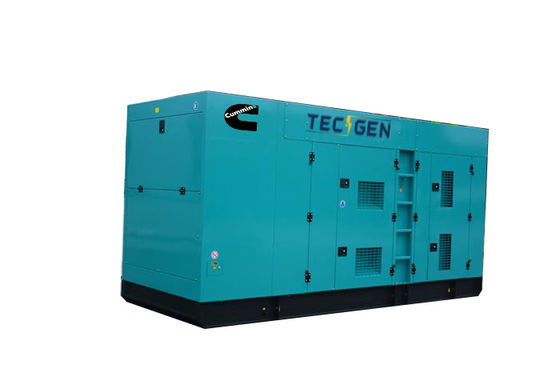

Cummins 150kW genset silent type generator set with brushless type alternator
Product Description:
Introducing the exceptional 315Kw Cummins Silent Diesel Generator Set, the ultimate power solution for unparalleled reliability and performance. Engineered with precision and durability in mind, this generator set offers unparalleled efficiency and longevity. With its cutting-edge features, customizable enhancements, numerous benefits, and versatile applications, it stands as the preferred choice for a wide range of needs.
Key Features:
- Powerful Performance: Boasting a 315kW capacity, this generator set provides consistent and dependable power to fulfill all your energy demands.
- Premium CCEC Cummins Engine: Fueled by a top-tier Cummins diesel engine, renowned for its reliability and fuel efficiency, it guarantees optimal power generation.
- Ultra-Silent Operation: Incorporating advanced soundproofing technology, it significantly reduces noise levels, making it ideal for residential areas and noise-sensitive environments.
- Intuitive Controls: The user-friendly control panel offers ease of operation and monitoring, providing a convenient and hassle-free experience.
- Rugged Construction: Constructed with premium materials and a robust frame, this generator set is designed to withstand challenging conditions and deliver long-lasting performance.
Options:
- Automated Transfer Switch (ATS): Seamlessly transitions between grid and generator power, ensuring continuous electricity supply during outages with zero manual intervention.
- Remote Monitoring System: Enables real-time monitoring of the generator's performance and status, providing instant updates and alerts for enhanced convenience and peace of mind.
315kW Cummins Genset Specifications:
| 315kW Cummins Genset Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG433CSD6 | NTA855-G3 | TGI314S315 | DEIF SGC-420 | 315kW | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of 315kW Cummins Diesel Engine Genset | |||||
| Engine Model | NTA855-G3 | ||||
| Alternator Mode | TGI314S315 | ||||
| Rated Output | 394kVA / 315kW | ||||
| Standby Output | 433kVA / 347kW | ||||
| Rated Speed | 1800 RPM | ||||
| Frequency | 60 HZ | ||||
| Rated Voltage | 480V | ||||
| Rated Current | 473.6A | ||||
| Breaker | 630A Aisikai Breaker | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 72dB(A) | ||||
| Net Weight | 4000KGS | ||||
| Genset size | L3900 * W1600 * H2000mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for 315kW Cummins Diesel Engine Genset | |||||
| Manufacture | CCEC Cummins | ||||
| Model | NTA855-G3 | ||||
| Rated Output/Speed | 358KW/1800RPM | ||||
| Standby Output/Speed | 399KW/1800RPM | ||||
| Aspiration | Turbocharged and Aftercooled | ||||
| Speed Governor | Electric | ||||
| Engine Type | 6 cylinders in line | ||||
| Bore X Stroke | 140*152mm | ||||
| Displacement | 14 L | ||||
| Compression ratio | 14:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1800rpm | ||||
| Fuel Consumption/rated output | 22.9 L / h | ||||
| Fuel Consumption/standby output | 25.3 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for 315kW Cummins Diesel Engine Genset | |||||
| Alternator Model | TGI314S315 | ||||
| Manufacture | Fujian Tecgen Power Co., Ltd | ||||
| Rate Output | 315kW | ||||
| Rated voltage(V) | 480V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of 315kW Cummins Diesel Engine Genset | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Advantages:
- Unwavering Backup Power: Ensure your critical appliances and systems stay operational during power outages, maintaining consistent productivity and comfort levels.
- Versatility Unparalleled: Perfect for residential backup, small businesses, bustling construction sites, and outdoor extravaganzas, this generator caters to a vast array of power demands.
- Optimized Fuel Economy: The Cummins engine excels in fuel consumption, slashing operating costs and minimizing environmental impact.
- Ultra-Low Noise Output: The silent design diminishes noise levels to a whisper, offering a serene environment during operation.
- Enduring Reliability: Engineered with superior components, this generator set is designed to handle rigorous usage and deliver dependable performance for years to come.
Usage:
• Residential Backup Power: Maintain a constant flow of power to essential appliances, lighting, and HVAC systems, ensuring uninterrupted comfort during outages.
• Small Business Continuity: Keep offices, retail outlets, and small-scale operations humming with productivity, minimizing financial losses during power disruptions.
• Construction Site Reliability: Provide steadfast power to construction equipment, tools, and temporary lighting, ensuring smooth progress and productivity on the job site.
• Outdoor Event Excellence: Power outdoor events, concerts, or festivals with ease, ensuring a seamless and enjoyable experience for all attendees.
