Cummins 750kW Diesel Generator Open Type Generator Set For Factory Emergency Power
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Open Type | Rate Power | 750kW |
|---|---|---|---|
| Stanbdy Power | 825kW | Engine | KTA38-G2B |
| Frequency | 60Hz | Speed | 1800rpm |
| Voltage | 480V | Breaker | CHNT Brand |
| Highlight | Cummins 750kW diesel generator,Cummins 750kW open type generator set,750kW cummins diesel generators |
||
Product Description

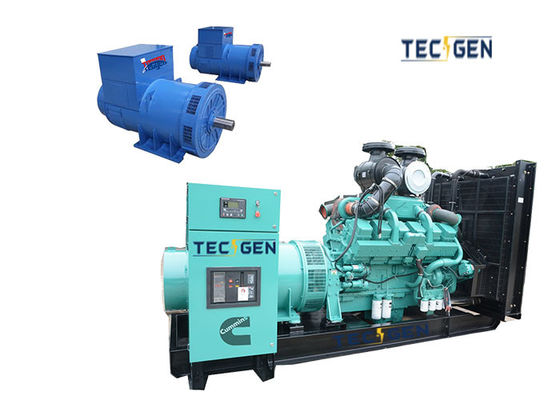

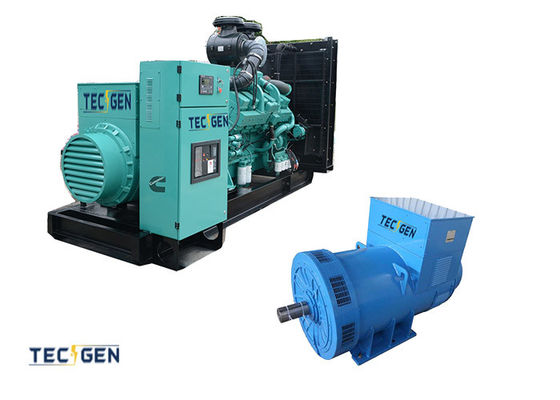

Cummins 750kW diesel generator open type generator set for factory emergency power
Unique Selling Proposition:
Fujian Tecgen Power Co., Ltd. stands apart in the market as a premier supplier of diesel engine generators, offering an extensive range of branded options from industry leaders like Cummins, SDEC, Perkins, and more. Our commitment to excellence, backed by over 15 years of manufacturing experience, ensures that we deliver tailored solutions to meet the unique demands of customers worldwide.
Detailed Specification:
- Frequency: Precisely tuned to 60Hz for consistent and reliable performance.
- Power Rating: Offering a standard rating of 938kVA/750kW, with a maximum output of 1031kVA/825kW to handle even the most demanding applications.
- Diesel Engine Model: The KTA38-G2B diesel engine, renowned for its durability and fuel efficiency.
- Generator Model: The TIG404S750 generator, designed to complement the engine's performance and ensure optimal energy output.
- Controller: Equipped with the DEIF SGC-420 controller, providing advanced monitoring and control capabilities.
- Fuel Tank: Customized to provide a 4-hour capacity, ensuring uninterrupted operation during extended use.
Value-Added Options:
- Weatherproof Canopy: Available as an additional layer of protection against harsh weather conditions, ensuring your generator remains operational regardless of the external environment.
- ATS (Automatic Transfer Switch): An optional feature that enables seamless power transfer during utility failures, minimizing downtime and maximizing uptime for your critical applications.
Open Type 750kW Generator General Datasheets:
| Open Type 750kW Generator Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG1031CD6 | KTA38-G2B | TIG404S750 | DEIF SGC-420 | 750kW | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of 750kW Cummins Diesel Genset | |||||
| Engine Model | KTA38-G2B | ||||
| Alternator Mode | TIG404S750 | ||||
| Rated Output | 938kVA / 750kW | ||||
| Standby Output | 1031kVA / 825kW | ||||
| Rated Speed | 1800 RPM | ||||
| Frequency | 60 HZ | ||||
| Rated Voltage | 480V | ||||
| Rated Current | 902.1A | ||||
| Breaker | 1000 CHNT Breaker | ||||
| ATS | 1000A ATS Cabinet for option | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 85dB(A) | ||||
| Net Weight | 7500KGS | ||||
| Genset size | L4450 * W1750 * H2200mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for 750kW Cummins Diesel Genset | |||||
| Manufacture | CCEC Cummins | ||||
| Model | KTA38-G2B | ||||
| Rated Output/Speed | 789KW/1800RPM | ||||
| Standby Output/Speed | 867KW/1800RPM | ||||
| Aspiration | Turbocharged & Intercooled | ||||
| Speed Governor | Electric | ||||
| Engine Type | 12 cylinders in line | ||||
| Bore X Stroke | 159*159mm | ||||
| Displacement | 38 L | ||||
| Compression ratio | 14.5:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1800rpm | ||||
| Fuel Consumption/rated output | 205.4 L / h | ||||
| Fuel Consumption/standby output | 225.9 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for 750kW Cummins Diesel Genset | |||||
| Alternator Model | TIG404S750 | ||||
| Manufacture | Copy Stamford | ||||
| Rate Output | 750kW | ||||
| Rated voltage(V) | 480V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of 750kW Cummins Diesel Genset | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Enhanced Control Panel Features:
The Control Panel boasts an array of advanced components to ensure smooth operation and optimal performance:
- Standard Instrumentation: Accurate and reliable engine monitoring instruments.
- Selective Voltmeters & Ammeters: Equipped with selector switches for precise voltage and current readings.
- Frequency Meter: Ensures consistent power output at the desired 60Hz frequency.
- Current Transformers: Provides protection and enhances the performance of electrical systems.
- Rated MCB: Miniature Circuit Breakers with suitable ratings for robust overload and short-circuit protection.
Optional Add-Ons for Enhanced Convenience:
- AMF Panel: The Automatic Mains Failure control panel offers seamless transition during power outages.
- ATS Integration: The Automatic Transfer Switch ensures smooth power transfer between sources.
FAQs with a Twist:
Q1. What's the Frequency of Cummins Generator Sets?
A1. These generator sets are tuned to a 60Hz frequency, making them ideal for regions with a 60Hz power grid.
Q2. How Powerful Are the Cummins Diesel Generator Sets?
A2. They offer a standard power rating of 938kVA/750kW, with a peak output of 1031kVA/825kW, delivering maximum power where you need it.
Q3. Can I Remotely Control and Monitor Cummins Generator?
A3. Absolutely! Equipped with the imported DEIF SGC-420 controller, these generator sets allow for sophisticated remote monitoring and control capabilities.
Q4. How Long Can These Generator Sets Run Without Refueling?
A4. With a customized 4-hour fuel tank, these generator sets provide extended runtime, ensuring continuous power supply.
