Soundproof 470kW China Made Genset Cummins Generator With Soundproof / Weather Proof Canopy
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Soundproof | Usage | Common Units, Standby Unit, Emergency Crew |
|---|---|---|---|
| Output Type | AC 3 Phase | Engine | Diesel Engine |
| Governor Type | Electric | Engine Modol | KTAA19-G5 |
| Engine Power | 533KW/1800RPM | Genset Power | 470kW Prime |
| Highlight | 470kW Cummins generator,Soundproof Cummins generator,China made Cummins generator |
||
Product Description

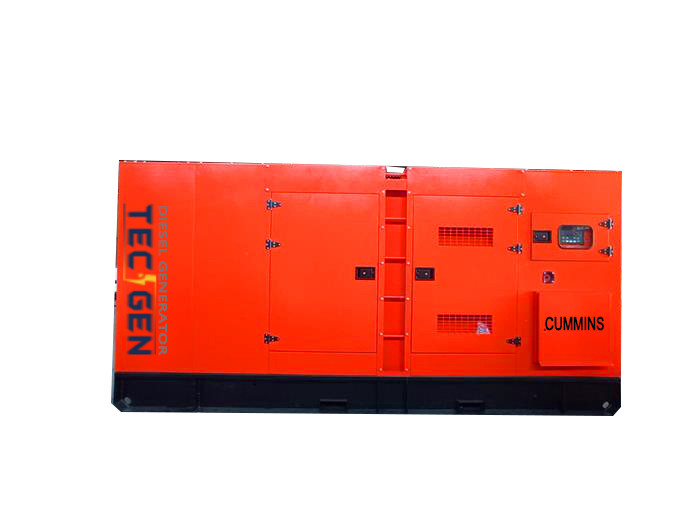

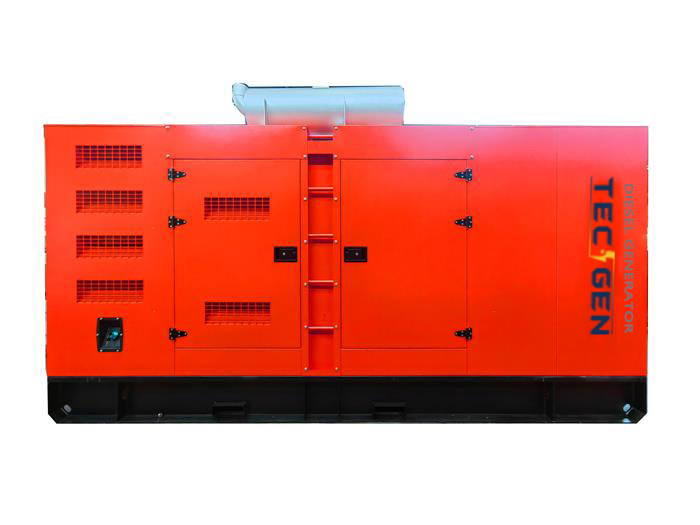

Soundproof 470kW China made genset Cummins generator with soundproof / weather proof canopy
Introducing the Soundproof 470kW China Made Genset Powered by Cummins Engine
Experience reliable and efficient power generation with our premium Soundproof 470kW China Made Genset, featuring a powerful Cummins KTAA19-G5 engine. Built for durability and performance, this genset is the ideal solution for industrial, commercial, and backup power applications requiring quiet operation and high output.
Standard Features:
- Cummins Engine: Equipped with the renowned KTAA19-G5 Cummins diesel engine, renowned for its reliability and fuel efficiency.
- Soundproof Enclosure: Designed with advanced sound-insulating materials, ensuring a low noise level of just 85dB(A) at 7 meters, making it suitable for noise-sensitive environments.
- High-Efficiency Alternator: The TIG354S470 alternator delivers a rated output of 470kW with excellent voltage and frequency regulation.
- Automatic Voltage Regulator (AVR): Ensures stable voltage output, protecting your equipment from voltage fluctuations.
Key Features:
- Powerful Performance: With a standby output of up to 517kW, this genset can handle heavy loads with ease.
- Easy Maintenance: Designed for simplified maintenance, reducing downtime and increasing overall productivity.
- Compact Design: Despite its powerful engine, the genset is compact and portable, making it easy to deploy in various locations.
Soundproof 470kW China Made Genset Datasheets:
| Soundproof 470kW China Made Genset Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG646CSD6 | KTAA19-G5 | TIG354S470 | DEIF SGC-420 | 470kW | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of 470kW Diesel Engine Genset | |||||
| Engine Model | KTAA19-G5 | ||||
| Alternator Mode | TIG354S470 | ||||
| Rated Output | 588kVA / 470kW | ||||
| Standby Output | 646kVA / 517kW | ||||
| Rated Speed | 1800 RPM | ||||
| Frequency | 60 HZ | ||||
| Rated Voltage | 480V | ||||
| Rated Current | 706.7A | ||||
| Breaker | 800A CHNT Breaker | ||||
| ATS | 800A ATS Cabinet for option | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 85dB(A) | ||||
| Net Weight | 5200KGS | ||||
| Genset size | L4500 * W1600 * H2100mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for 470kW Diesel Engine Genset | |||||
| Manufacture | CCEC Cummins | ||||
| Model | KTAA19-G5 | ||||
| Rated Output/Speed | 533KW/1800RPM | ||||
| Standby Output/Speed | 605KW/1800RPM | ||||
| Aspiration | Turbocharged and Air to Air Aftercooled | ||||
| Speed Governor | Electric | ||||
| Engine Type | 6 cylinders in line | ||||
| Bore X Stroke | 159*159mm | ||||
| Displacement | 19 L | ||||
| Compression ratio | 13.5:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1800rpm | ||||
| Fuel Consumption/rated output | 134 L / h | ||||
| Fuel Consumption/standby output | 155 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for 470kW Diesel Engine Genset | |||||
| Alternator Model | TIG354S470 | ||||
| Manufacture | Copy Stamford | ||||
| Rate Output | 470kW | ||||
| Rated voltage(V) | 480V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of 470kW Diesel Engine Genset | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Usage:
Ideal for hospitals, hotels, factories, data centers, and any other facility requiring a reliable backup or primary power source.
Advantages:
- Cost-Effective: High fuel efficiency and low maintenance costs ensure long-term savings.
- Reliability: Backed by Cummins' legendary reliability, you can count on this genset in times of need.
- Versatility: With optional features like ATS, fuel tank, and PMG generator, it can be customized to fit your specific requirements.
Options:
- Integrated Fuel Tank for extended runtime
- Water Heater for cold environments
- Automatic Transfer Switch (ATS) for seamless power transfer
- Permanent Magnet Generator (PMG) for enhanced voltage stability
- SYNC Function for parallel operation
FAQs:
- Q: What is the noise level of this genset?
- A: The noise level is 85dB(A) at 7 meters, making it suitable for noise-sensitive environments.
- Q: Can I customize the genset with additional options?
- A: Yes, we offer a range of options including fuel tanks, ATS, PMG generator, and more to meet your specific needs.
Conclusion:
Experience the ultimate in power generation with our Soundproof 470kW China Made Genset powered by Cummins. Whether you're looking for a reliable backup power solution or a primary power source, our genset delivers unparalleled performance, efficiency, and versatility. Order now and enjoy peace of mind knowing your power needs are taken care of.
