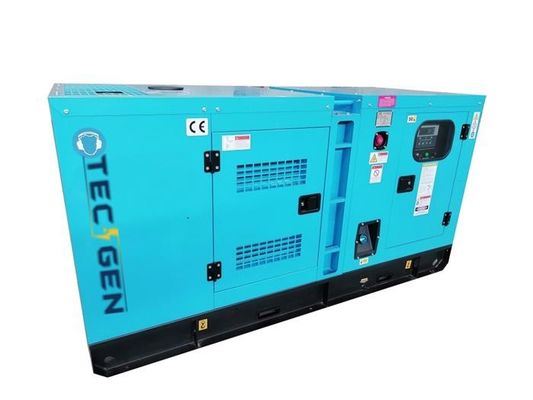

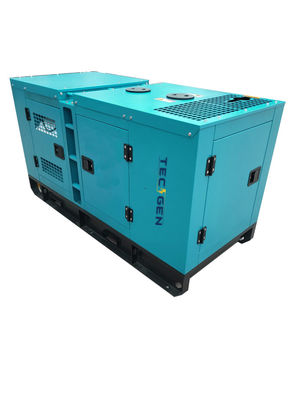

Continuous 9kW silent diesel generator Perkins generator with silent type for continuous use

  • Continuous 9kW silent diesel generator Perkins generator with silent type for continuous use
  • Continuous 9kW silent diesel generator Perkins generator with silent type for continuous use
Place of Origin Fuzhou, China
Brand Name Tecgen Power
Certification CE / SASO / SONCAP / COC / PVOC
Model Number TG12PSD6
Minimum Order Quantity 1 unit
Price $3285 - $4052
Packaging Details Stretch film packaging
Delivery Time 15 Days
Payment Terms T/T, L/C
Supply Ability 200 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Silent / Super Silent Conditions Of Use Land Use
Frequency 60Hz Voltage 208 / 120V
Output Type Three Phase Engine Model 403D-11G
Genset Power 9kW / 11kVA Options ATS, Super Silent Type, Trailer Type
Highlight

Continuous 9kW silent diesel generator

,

Perkins silent diesel generator

,

9kW silent diesel generator
Leave a Message
Product Description

Continuous 9kW silent diesel generator Perkins generator with silent type for continuous use





Product Title:


Continuous 9kW Silent Diesel Generator with Perkins Engine - Reliable Power Solution





Standard Features:


Experience seamless power backup with our TG12PSD6, a premium 9kW/11kVA silent diesel generator. Equipped with a Perkins Wuxi 403D-11G engine, this generator boasts a robust four-stroke, water-cooled, direct injection system for maximum efficiency and durability. The compact design (L1700 x W850 x H1000mm) and lightweight (600kg) make it easy to transport and install.





Key Features:



  • Ultra-Silent Operation: Perfect for noise-sensitive environments, our generator operates at whisper-quiet levels.
  • Powerful Perkins Engine: Powered by a reliable Perkins 403D-11G engine, delivering 10.7kW of rated power for uninterrupted power supply.
  • High-Efficiency Alternator: The Tecgen TGI164S9 alternator ensures 92.5% efficiency, providing clean and stable AC power.
  • Advanced Control System: Equipped with DEIF SGC-420 controller, featuring comprehensive protections and AMF/ATS functionality for automatic start/stop.
  • Durable & Maintenance-Friendly: Long-lasting components and easy access to service points reduce downtime and maintenance costs.



Continuous 9kW silent diesel generator Perkins generator with silent type for continuous use 0



Continuous 9kW Silent Diesel Generator Datasheets:





Continuous 9kW Silent Diesel Generator Specification
Genset Model TG12PSD6
Rated Power 9kW / 11kVA
Max Power 10kW / 12kVA
Frequency 60Hz
Rated Voltage 208 / 120V
Rated Current (A) 31.2A
ATS 63A ATS
Dimension (mm) L1700 x W850 x H1000
Gross Weight (kg) 600
Diesel Engine Brand Perkins Wuxi
Model 403D-11G
Configuration Four-stroke,Water-cooling,Direct Injection
Rated Power 10.7kW
Rated Speed (rpm) 1800rpm
Cylinder No. 3
Bore*Stroke (mm) 77 x 81
Displacement(L) 1.131
Compression ratio 23:1
Intake Naturally aspirated
Fuel Consumption (g/Kw*h) 240@100% load
Starting method 12/24V DC
AC Alternator Brand Tecgen
Model TGI164S9
Rated Power 9kW
Speed 1800rpm
Materials 100% pure copper
Efficiency 92.50%
Voltage Regulation <=±1
Voltage Regulation Brushless, Self-excitation
Insulation Class H
Option brands Stamford / Leroy Somer / Meccalte
Control System Brand DEIF
Model SGC-420
Working Voltage DC8.0V to DC35.0V, continuous
Overall Dimensions (mm) 233*38.5*173
Panel Cutout (mm) 219*158
Working Condition 0 to 95 % RH. To IEC 60068-2-78
Functions AMF/ATS
RS485 & CAN communication
9 Inlet & 7 Outlet
PLC & BTN
Protections Under-speed
Over-speed
Configurable crank connect
Battery monitoring
Charging alternator
Pre-heat
Coolant temperature
Lube oil pressure
Fuel level detection
Fuel theft detection
ECU communication failure
ECU diagnostic lamp
Option brands Deepsea / Smartgen / ComAp / Mebay
Genset option equipment
Integrated-Fuel-Tank ATS Box / Cabinet
PMG Alternator Sync Panel
Trailer Type Engine Heater
Water Heater Fuel – Water Separator
Maintenance Timetable of Diesel Generating Set
Items Job Content Everyday Every Week Every Month Every Six Month Every Year or 250 Hours
Lubricating System Check Oil leakage √ √ √ √ √
Level of engine oil √ √ √ √ √
Replace Oil Filter       √ √
Engine Olil       √ √
Clean Crankcase box       √ √
Cooling System Check Oil leakage √ √ √ √ √
Radiator Block     √ √ √
Soft Tube and Joint     √ √ √
Fluid   √ √ √ √

Antifreeze and

Anticorrosion

     √ √ √
Belt Status       √ √

Add Grease

lubricant

 Fan and Tensing       √ √
Belt wheel       √ √
Check Driving Belt wheel and pump       √ √
Replace Cooling Liquid Every 12 months
Clean Cooling System
Airflow System Check Oil Gas     √ √ √
Cleaner   √ √ √ √
Pipe Fittings and Joint       √ √
Replace Core of Air Cleaner         √
Fuel System Check Leakage √ √ √ √ √
Quality of Fuel   √ √ √ √
Pump Nozzle         √
Fuel pipe and Joint       √ √
Oil Pump     √ √ √
Discharged Deposition of Fuel Tank     √ √ √
Replace Filter of oil       √ √
Check Nozzle Every Two Years
Adjust Value         √





Usage:


Ideal for use in homes, offices, hospitals, data centers, and remote locations where reliable power is crucial. Suitable for emergency backup, prime power, or continuous operation.



Continuous 9kW silent diesel generator Perkins generator with silent type for continuous use 1



Advantage:



  • Silent Performance: Reduces noise pollution, making it suitable for residential and commercial applications.
  • Fuel Efficiency: Low fuel consumption (240g/kWh at 100% load) minimizes operational costs.
  • Versatile Options: Choose from various alternator brands and optional equipment like integrated fuel tanks, ATS boxes, and trailers for customized solutions.
  • Easy Maintenance: Regular maintenance tasks are straightforward, ensuring your generator stays in top condition.





Options:



  • Opt for Stamford, Leroy Somer, or Meccalte alternators for enhanced performance.
  • Upgrade with an integrated fuel tank for extended runtime.
  • Add an ATS box for automatic power transfer.
  • Choose from various trailer types for easy transportation.





FAQ:



  • Q: How loud is this generator?
  • A: It's designed for ultra-silent operation, making it suitable for noise-sensitive areas.
  • Q: What's the fuel consumption at full load?
  • A: The fuel consumption is 240g/kWh at 100% load, ensuring cost-effective operation.
  • Q: Can I customize the generator with additional features?
  • A: Yes, we offer various optional equipment to tailor the generator to your specific needs.



Experience the reliability and power of the Continuous 9kW Silent Diesel Generator with Perkins Engine. Order now and enjoy uninterrupted power supply for all your essential needs.
