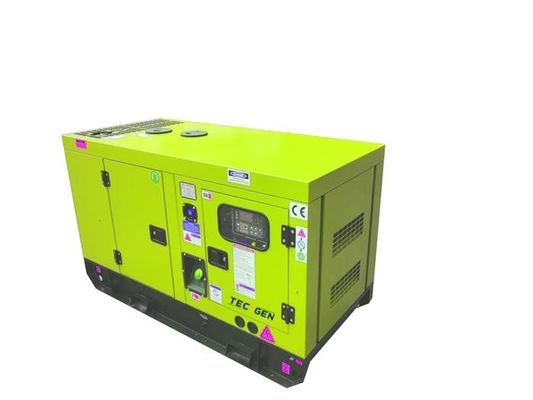

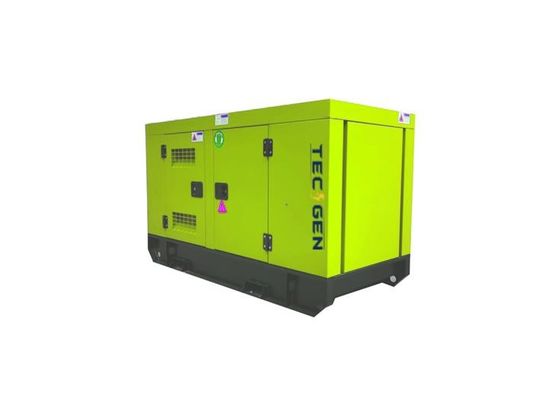

Three phase ISUZU diesel power generator silent power generator with JX ISUZU diesel engine
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG21JIS |
| Minimum Order Quantity | 1 unit |
| Price | $3000 - $3700 |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent, Super Silent, Trailer | Frequency | 50Hz |
|---|---|---|---|
| Engine Brand | JX ISUZU | Engine Model | JE493DB-04 |
| Engine Datails | 21kW, Natural Inatke, 4 Cylinder, 2.585L Displacement | Alternator Model | Stamford S0L2-G1 |
| Genset Power | 15kW / 19kVA | Option | Open Type, Super Soundproof, Trailer Type, ATS |
| Highlight | JX ISUZU diesel power generator,Silent diesel power generator,Three phase diesel power generator |
||
Product Description
Three phase ISUZU diesel power generator silent power generator with JX ISUZU diesel engine
Product Title: Three Phase ISUZU Diesel Power Generator - Reliable & Efficient Backup Power
Standard Features:
Experience unparalleled reliability with our Three Phase ISUZU Diesel Power Generator, model TG21JIS. Designed for silent operation, it features a versatile voltage range (415V/400V/380V/240V/230V/220V/110V) and a stable 50Hz frequency, ensuring compatibility with various electrical systems.
Key Features:
- Powerful ISUZU Engine: Equipped with an ISUZU JE493DB-04 diesel engine, delivering 15kW prime power and 17kW standby power, it's perfect for demanding applications.
- Stamford Alternator: The S0L2-G1 alternator ensures clean, stable power output with a power factor of 0.8, ensuring efficient operation of your appliances.
- Smartgen DEIF Controller: The SGC-420 controller automates operations, including auto mains failure detection, ATS & RS485 connectivity, and emergency stop functionality.
Three Phase ISUZU Diesel Power Generator Parameters:
| Three Phase ISUZU Diesel Power Generator Technical Datasheets | ||||||
| Genset model | TG21JIS | |||||
| Genset Type | Silent/Soundproof | |||||
| Rate Voltage | 415V/400V/380V/240V/230V/220V/110V | |||||
| Frequency | 50Hz | |||||
| Speed | 1500rpm | |||||
| Output Type | 3 Phase | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 28.9A | |||||
| Prime Power | 15kW / 19kVA | |||||
| Standby Power | 17kW / 21kVA | |||||
| Engine | Brand | ISUZU | ||||
| Model | JE493DB-04 | |||||
| Alternator | Brand | Stamford | ||||
| Model | S0L2-G1 | |||||
| Controller | Brand | Smartgen | ||||
| Model | DEIF SGC-420 | |||||
| Fuel Tank Capacity | 60L | |||||
| Genset Weight | 630kgs | |||||
| Genset Dimensions | L2080 * W 880 * 1100 | |||||
| ISUZU Diesel Engine Data | ||||||
| Brand | Isuzu | |||||
| Engine Model | JE493DB-04 | |||||
| Number of Cylinders | 4 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Natural Intake | |||||
| Displacement | 2.585L | |||||
| Compression ratio | 18.2L | |||||
| Bore×Stroke | 93*102mm | |||||
| Speed | 1500rpm | |||||
| Prime Power | 21kW | |||||
| Standby Power | 24kW | |||||
| Speed Governor | MECH or Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 207g/kwh@1500rpm | |||||
| Stamford Alternator Data | ||||||
| Brand | Stamford | |||||
| Model | S0L2-G1 | |||||
| Frequency/speed | 50HZ/1500RPM | |||||
| Rate Output | 19kVA | |||||
| No. of Phase | Three Phase, 3 Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| DEIF Controller System | ||||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Function | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent | ||
| 10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay | |||
| 16kW ~ 600kW | Deutz | Marathon | DEIF | |||
| 7kW ~ 64kW | Yangdong |
Tecgen
|
||||
| 7kW ~ 76kW | Quanchai | |||||
| 18kW ~ 3000kW | Weichai | |||||
| 8kW ~ 800kW | SDEC | |||||
| 12kW ~ 320kW | FAWDE | |||||
| 18kW ~ 1200kW | Yuchai | |||||
| 11kW ~ 104kW | Beinei Aircooled | |||||
| 7kW ~ 1800kW | Perkins | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage:
Ideal for residential, commercial, and industrial use, this generator is perfect for powering essential equipment during power outages or as a primary power source in remote locations. Its compact design and lightweight construction (630kgs) make it easy to transport and install.
Advantage:
- Soundproof Design: Advanced soundproofing technology ensures quiet operation, making it suitable for noise-sensitive environments.
- Fuel Efficiency: At just 207g/kwh@1500rpm, it minimizes operational costs and ensures long runtime on a 60L fuel tank.
- Versatile Voltage Options: Supports multiple voltage outputs, providing flexibility for various power requirements.
Options:
Choose from various customization options, including speed governors (MECH or Electrical), additional fuel tanks, and extended warranties, to tailor the generator to your specific needs.
FAQs:
- Q: What is the maximum power output of this generator?
- A: It provides 15kW prime power and 17kW standby power.
- Q: What brand of engine does it use?
- A: It's powered by an ISUZU JE493DB-04 diesel engine.
- Q: Can it be used for emergency backup power?
- A: Yes, its auto mains failure detection feature makes it ideal for emergency backup power.
Experience the ultimate in backup power with our Three Phase ISUZU Diesel Power Generator. Trusted by professionals worldwide, it's the perfect solution for your power needs. Get yours today and enjoy reliable, efficient power anytime, anywhere.
