4 Cylinders 50kVA diesel engine genset isuzu diesel generator for factory back-up power
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG33JISD6 |
| Minimum Order Quantity | 1 unit |
| Price | $3700 - $4700 |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 20 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 50Hz / 380V | Type | Silent Type |
|---|---|---|---|
| Cooling | Water Cooled | Engine Brand | JX ISUZU |
| Engine Model | JE493ZLDC-02 | Alternator | Leory Somer TAL-A40-C |
| Genset Power | Prime 50kVA / Standby 55kVA | Controller | DEIF SGC-420 |
| Highlight | 50kVA diesel engine genset,Isuzu diesel engine genset,4 Cylinders diesel engine genset |
||
Product Description

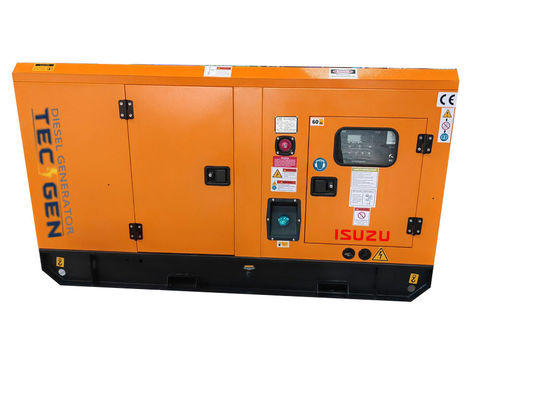

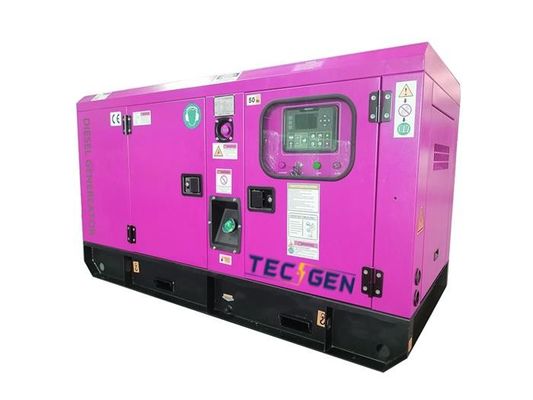

4 Cylinders 50kVA diesel engine genset isuzu diesel generator for factory back-up power
Product Title: 50kVA JX ISUZU Diesel Generator Set - TG55JIS Model
Product Description:
Experience unparalleled power and reliability with the 50kVA JX ISUZU Diesel Generator Set, model TG55JIS. Engineered with precision and backed by the renowned quality of JX ISUZU, this genset is the ultimate solution for your industrial, commercial, or residential power needs.
Key Specifications:
- Engine: JE493ZLDC-02 diesel engine, delivering 51kW rated output and 56kW standby output, ensuring robust performance.
- Alternator: TAL-A40-C, producing 50kVA at 220/380V, with a voltage regulation rate of ≤±1%, ensuring stable power output.
- Controller: Equipped with the DEIF SGC-420 intelligent controller for seamless monitoring and control.
- Rated Output: 50kVA, capable of handling heavy loads with ease.
Features & Advantages:
- High Efficiency: With a fuel consumption of just 10L/h at rated output, this genset offers cost-effective operation.
- Silent Operation: Noise levels as low as 70dB(A) @ 7m, making it suitable for noise-sensitive environments.
- Durability: Boasting a 4-cylinder inline engine with forced water cooling, the TG55JIS ensures long-lasting performance.
- Compact Design: Measuring L2400 * W730 * H1000mm, it's easy to transport and install.
4 Cylinders 50kVA Diesel Engine Genset Specifications:
| 4 Cylinders 50kVA Diesel Engine Genset Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG55JIS | JE493ZLDC-02 | TAL-A40-C | DEIF SGC-420 | 50kVA | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of 40kW JX ISUZU Diesel Generator | |||||
| Engine Model | JE493ZLDC-02 | ||||
| Alternator Mode | TAL-A40-C | ||||
| Rated Output | 40kW / 50kVA | ||||
| Max Output | 44kW / 55kVA | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 220 / 380V | ||||
| Rated Current | 76A | ||||
| Breaker | 80A Aisikai Breaker | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 70dB(A) | ||||
| Net Weight | 1150KGS | ||||
| Genset size | L2400 * W730 * H1000mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for 40kW JX ISUZU Diesel Generator | |||||
| Manufacture | JX ISUZU | ||||
| Model | JE493ZLDC-02 | ||||
| Rated Output/Speed | 51KW/1500RPM | ||||
| Standby Output/Speed | 56KW/1500RPM | ||||
| Aspiration | intercooling turbo | ||||
| Speed Governor | MECH or Electric | ||||
| Engine Type | 4 cylinders in line | ||||
| Bore X Stroke | 93*105mm | ||||
| Displacement | 2.85 L | ||||
| Compression ratio | 18.2:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 10 L / h | ||||
| Fuel Consumption/standby output | 11 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for 40kW JX ISUZU Diesel Generator | |||||
| Alternator Model | TAL-A40-C | ||||
| Manufacture | Leroy Somer | ||||
| Rate Output | 50kVA | ||||
| Rated voltage(V) | 230 / 400V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of 40kW JX ISUZU Diesel Generator | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Options & Accessories:
- Integrated Fuel Tank
- Water Heater
- Automatic Transfer Switch (ATS)
- PMG Generator
- SYNC Function
- 12/24 Hours Fuel Tank
- 3000 Hours Spare Parts Kit
General Information:
- Payment Terms: FOB Fuzhou Port
- Delivery Time: 15 working days
- Payment Method: 30% deposit, 70% before delivery
- Price Validity: 30 days
Technical Details:
- Rated Voltage: 220/380V
- Rated Current: 76A
- Breaker: 80A Aisikai Breaker
- Power Factor: 0.8
- Genset Phase: 3 phase, 4-wire connection
- Fuel Tank Capacity: Sufficient for 8 running hours
- Cooling System: Forced Water Cooling Cycle
- Starter Motor: D.C. 24V Electric starting
- Alternator Model: TAL-A40-C
FAQs:
- Q: What is the fuel consumption at rated output?
- A: The fuel consumption at rated output is 10 liters per hour.
- Q: How long does it take to deliver the genset?
- A: Delivery takes 15 working days after order confirmation.
- Q: Can I customize the genset with additional options?
- A: Yes, several customization options are available, including an integrated fuel tank, water heater, ATS, and more.
Experience the power and reliability of the 50kVA JX ISUZU Diesel Generator Set, model TG55JIS. Order now and enjoy seamless power backup for your essential applications.
