Cummins 75kVA generator set silent diesel generator with smartgen HGM6120N controller

Cummins 75kVA generator set silent diesel generator with smartgen HGM6120N controller

Product Description: Cummins 75kVA Generator Set - Silent Diesel Generator for Reliable Power Solutions

Standard Features:

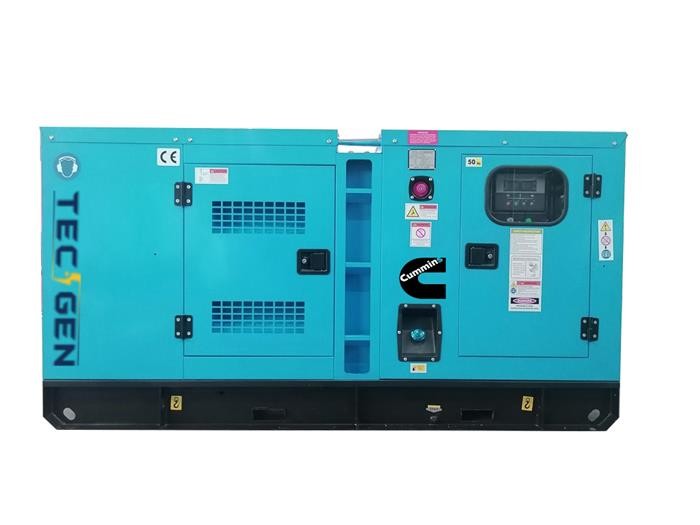

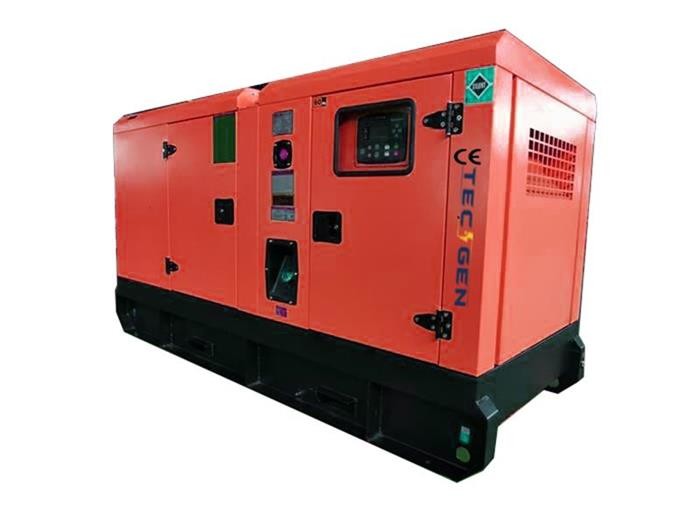

Introducing the Cummins 75kVA Generator Set, the epitome of reliable and efficient power generation. Available in both open and silent configurations (TG83CD6 & TG83CSD6), this generator set ensures a seamless power supply for all your industrial and commercial needs. Operating at a frequency of 60Hz and a rated speed of 1800RPM, it delivers a stable voltage of 220/127V through its 3-phase, 4-wire system. Equipped with a DCEC 4BTA3.9G11 engine and a Tecgen TGI224S60 alternator, this generator set boasts a prime power output of 60kW/75kVA and a standby power of 66kW/83kVA, making it ideal for critical applications requiring uninterrupted power supply.

Key Features:

• Silent Operation: The silent model (TG83CSD6) provides whisper-quiet operation, making it perfect for noise-sensitive environments like hospitals, schools, and residential areas.
• Powerful Engine: Powered by the reliable DCEC 4BTA3.9G11 engine, it delivers exceptional performance with a turbocharged and aftercooled design, ensuring optimal fuel efficiency and reduced emissions.
• Smart Control: Equipped with the Smartgen HGM6120N controller, it offers advanced features like automatic voltage regulation, AMF (Automatic Mains Failure) module, and an emergency stop push button for added safety and convenience.
• Fuel Efficiency: With a fuel consumption rate ranging from 5.3L/h at 25% load to 17.6L/h at full load, the generator ensures cost-effective operation.
• Durable Construction: Featuring IP23-rated enclosures and H-class insulation, the alternator is designed for long-term use and withstands harsh environmental conditions.

Cummins 75kVA Generator Set Datasheets:

Usage:

The Cummins 75kVA Generator Set is widely used in various industries, including construction, mining, healthcare, data centers, and event management. It serves as a primary or backup power source during power outages, ensuring continuous operation of critical equipment and systems.

Advantage:

• Versatility: With its compact design and optional equipment like ATS Box, Remote Control, and Trailer Type, it offers unmatched flexibility and can be easily transported and integrated into any power system.
• Low Maintenance: The dry element air filter and electric governor ensure hassle-free maintenance, while the Smartgen controller simplifies monitoring and troubleshooting.
• Eco-Friendly: The turbocharged and aftercooled engine design minimizes emissions, making it an environmentally responsible choice.

Options:

• Choose from open or silent configurations to suit your noise level requirements.
• Add an ATS Box for automatic transfer switching between generator and mains power.
• Opt for a Remote Control system for convenient monitoring and operation from a distance.
• Enhance fuel efficiency with a Fuel-Water Separator.

FAQs:

• Q: What is the maximum altitude this generator set can operate at?
  A: The Cummins 75kVA Generator Set can operate at altitudes up to 1000 meters.
• Q: How long can it run on a full tank of fuel?
  A: Depending on the load, the 160L fuel tank can provide anywhere from 9 to 30 hours of continuous operation.
• Q: Does it come with a warranty?
  A: Yes, the generator set comes with a standard warranty, and additional warranty options may be available.

Experience the reliability and performance of the Cummins 75kVA Generator Set, the silent diesel generator designed to power your world, efficiently and seamlessly.
