xProduct Details
| Frequency | 60Hz | Speed | 1800rpm |
|---|---|---|---|
| Voltage | 120/127/208/220/230/240/480V | Engine Brand | Perkins |
| Engine Model | 403A-15G1 | Prime Genset Power | 12kW / 15kVA |
| Breaker Brand | Delixi / CHNT | ATS | 63A |
| Highlight | Silent Perkins Diesel Generator,12kW Perkins Diesel Generator,Continuous Perkins Diesel Generator |
||
Product Description

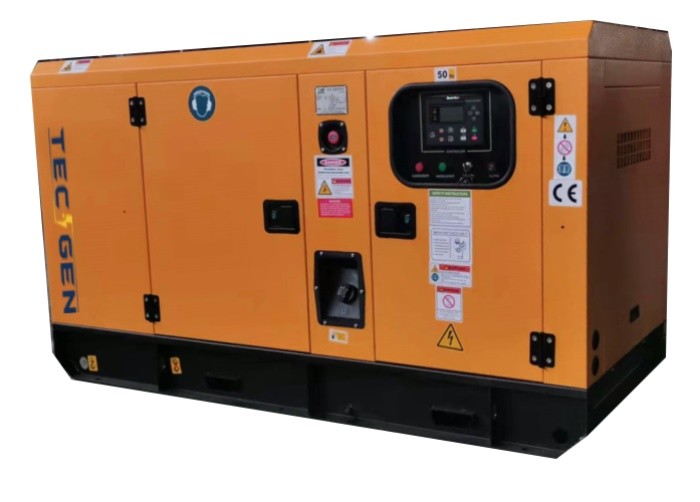

Continuous 12kW Soundproof Diesel Generator silent Perkins genset for continuous power
Product Title:
Continuous 12kW Soundproof Perkins Silent Diesel Generator - TG17PSD6
Standard Features:
Introducing the TG17PSD6, a state-of-the-art 12kW/15kVA diesel generator designed for continuous power supply with unparalleled soundproofing. Equipped with a Perkins Wuxi 403A-15G1 engine, this generator ensures reliable performance and minimal noise pollution, making it ideal for a wide range of applications.
Key Features:
- Powerful Performance: Delivering up to 13kW/17kVA of maximum power, the TG17PSD6 powers through even the most demanding tasks with ease.
- Ultra-Silent Operation: With advanced soundproofing technology, this generator operates at whisper-quiet levels, ensuring a peaceful environment.
- Efficient Engine: The Perkins Wuxi 403A-15G1 engine boasts a 14.6kW rated power, direct injection, and water-cooling for optimal fuel efficiency and longevity.
- High-Quality Alternator: The Tecgen TGI164S12 alternator guarantees pure sine wave output, 92.5% efficiency, and brushless, self-excitation for maintenance-free operation.
- Intelligent Control System: The DEIF SGC-420 controller provides comprehensive monitoring and protection, including ATS/AMF functionality, RS485 & CAN communication, and multiple protection modes.
Continuous 12kW Soundproof Diesel Generator Datasheets:
| Continuous 12kW Soundproof Diesel Generator Specification | |||||||||||||
| Genset Model | TG17PSD6 | ||||||||||||
| Rated Power | 12kW / 15kVA | ||||||||||||
| Max Power | 13kW / 17kVA | ||||||||||||
| Frequency | 60Hz | ||||||||||||
| Rated Voltage | 208 / 120V | ||||||||||||
| Rated Current (A) | 41.6A | ||||||||||||
| ATS | 63A ATS | ||||||||||||
| Dimension (mm) | L1700 x W850 x H1000 | ||||||||||||
| Gross Weight (kg) | 650 | ||||||||||||
| Diesel Engine | Brand | Perkins Wuxi | |||||||||||
| Model | 403A-15G1 | ||||||||||||
| Configuration | Four-stroke,Water-cooling,Direct Injection | ||||||||||||
| Rated Power | 14.6kW | ||||||||||||
| Rated Speed (rpm) | 1800rpm | ||||||||||||
| Cylinder No. | 3 | ||||||||||||
| Bore*Stroke (mm) | 84 x 90 | ||||||||||||
| Displacement(L) | 1.496 | ||||||||||||
| Compression ratio | 22.5:1 | ||||||||||||
| Intake | Naturally aspirated | ||||||||||||
| Fuel Consumption (g/Kw*h) | 240@100% load | ||||||||||||
| Starting method | 12/24V DC | ||||||||||||
| AC Alternator | Brand | Tecgen | |||||||||||
| Model | TGI164S12 | ||||||||||||
| Rated Power | 12kW | ||||||||||||
| Speed | 1800rpm | ||||||||||||
| Materials | 100% pure copper | ||||||||||||
| Efficiency | 92.50% | ||||||||||||
| Voltage Regulation | <=±1 | ||||||||||||
| Voltage Regulation | Brushless, Self-excitation | ||||||||||||
| Insulation Class | H | ||||||||||||
| Option brands | Stamford / Leroy Somer / Meccalte | ||||||||||||
| Control System | Brand | DEIF | |||||||||||
| Model | SGC-420 | ||||||||||||
| Working Voltage | DC8.0V to DC35.0V, continuous | ||||||||||||
| Overall Dimensions (mm) | 233*38.5*173 | ||||||||||||
| Panel Cutout (mm) | 219*158 | ||||||||||||
| Working Condition | 0 to 95 % RH. To IEC 60068-2-78 | ||||||||||||
| Functions | AMF/ATS | ||||||||||||
| RS485 & CAN communication | |||||||||||||
| 9 Inlet & 7 Outlet | |||||||||||||
| PLC & BTN | |||||||||||||
| Protections | Under-speed | ||||||||||||
| Over-speed | |||||||||||||
| Configurable crank connect | |||||||||||||
| Battery monitoring | |||||||||||||
| Charging alternator | |||||||||||||
| Pre-heat | |||||||||||||
| Coolant temperature | |||||||||||||
| Lube oil pressure | |||||||||||||
| Fuel level detection | |||||||||||||
| Fuel theft detection | |||||||||||||
| ECU communication failure | |||||||||||||
| ECU diagnostic lamp | |||||||||||||
| Option brands | Deepsea / Smartgen / ComAp / Mebay | ||||||||||||
| Genset option equipment | |||||||||||||
| Integrated-Fuel-Tank | ATS Box / Cabinet | ||||||||||||
| PMG Alternator | Sync Panel | ||||||||||||
| Trailer Type | Engine Heater | ||||||||||||
| Water Heater | Fuel – Water Separator | ||||||||||||
| Maintenance Timetable of Diesel Generating Set | |||||||||||||
| Items | Job | Content | Everyday | Every Week | Every Month | Every Six Month | Every Year or 250 Hours | ||||||
| Lubricating System | Check | Oil leakage | √ | √ | √ | √ | √ | ||||||
| Level of engine oil | √ | √ | √ | √ | √ | ||||||||
| Replace | Oil Filter | √ | √ | ||||||||||
| Engine Olil | √ | √ | |||||||||||
| Clean | Crankcase box | √ | √ | ||||||||||
| Cooling System | Check | Oil leakage | √ | √ | √ | √ | √ | ||||||
| Radiator Block | √ | √ | √ | ||||||||||
| Soft Tube and Joint | √ | √ | √ | ||||||||||
| Fluid | √ | √ | √ | √ | |||||||||
|
Antifreeze and Anticorrosion |
√ | √ | √ | ||||||||||
| Belt Status | √ | √ | |||||||||||
|
Add Grease lubricant |
Fan and Tensing | √ | √ | ||||||||||
| Belt wheel | √ | √ | |||||||||||
| Check | Driving Belt wheel and pump | √ | √ | ||||||||||
| Replace | Cooling Liquid | Every 12 months | |||||||||||
| Clean | Cooling System | ||||||||||||
| Airflow System | Check | Oil Gas | √ | √ | √ | ||||||||
| Cleaner | √ | √ | √ | √ | |||||||||
| Pipe Fittings and Joint | √ | √ | |||||||||||
| Replace | Core of Air Cleaner | √ | |||||||||||
| Fuel System | Check | Leakage | √ | √ | √ | √ | √ | ||||||
| Quality of Fuel | √ | √ | √ | √ | |||||||||
| Pump Nozzle | √ | ||||||||||||
| Fuel pipe and Joint | √ | √ | |||||||||||
| Oil Pump | √ | √ | √ | ||||||||||
| Discharged | Deposition of Fuel Tank | √ | √ | √ | |||||||||
| Replace | Filter of oil | √ | √ | ||||||||||
| Check | Nozzle | Every Two Years | |||||||||||
| Adjust | Value | √ | |||||||||||
Usage:
Perfect for homes, offices, construction sites, or as a backup power source during emergencies, the TG17PSD6 ensures uninterrupted power supply. Its compact design and easy portability make it a versatile addition to any power solution.
Advantages:
- Durability: Built with premium materials and components, this generator is designed for long-lasting performance.
- Fuel Efficiency: With a fuel consumption of just 240g/Kw*h at full load, the TG17PSD6 minimizes operational costs.
- User-Friendly: Intuitive controls and comprehensive monitoring systems make operation and maintenance hassle-free.
- Versatile Options: Choose from a range of optional equipment, including integrated fuel tanks, ATS boxes, and engine heaters, to tailor the generator to your specific needs.
Options:
- Integrated Fuel Tank
- ATS Box/Cabinet
- PMG Alternator
- Sync Panel
- Trailer Type
- Engine Heater
- Water Heater
- Fuel-Water Separator
FAQs:
Q: Is this generator soundproof?
A: Yes, the TG17PSD6 features advanced soundproofing technology for ultra-quiet operation.
Q: What is the maximum power output?
A: The generator has a maximum power output of 13kW/17kVA.
Q: What engine does it use?
A: It is powered by a Perkins Wuxi 403A-15G1 engine, renowned for its reliability and fuel efficiency.
Experience the peace of mind that comes with a Continuous 12kW Soundproof Perkins Silent Diesel Generator - TG17PSD6. Order now and enjoy reliable, quiet power for all your needs.
