640kW Container silent generator silent Cummins genset for bank emergency power use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Name | ISO Container Silent Genset | Silent Canopy | Standard 20ft Container Canopy |
|---|---|---|---|
| Frequency | 50Hz | Engine Model | Cummins KTA38-G2B |
| Cylinder | 12 Cylinder | Displacement | 38L |
| Engine Power | 711kW | Prime Genset Power | 640kW / 800kVA |
| Highlight | 640kW Container silent generator,bank emergency power use Cummins genset,640kW silent Cummins genset |
||
Product Description

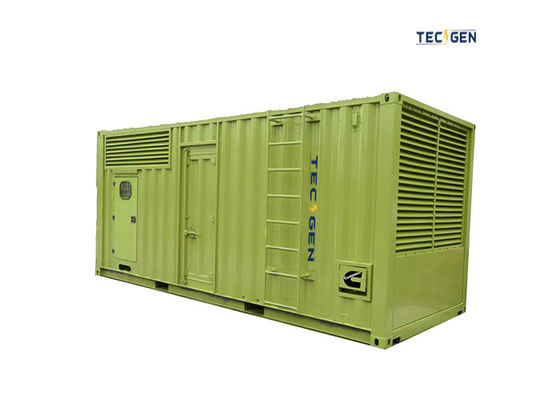

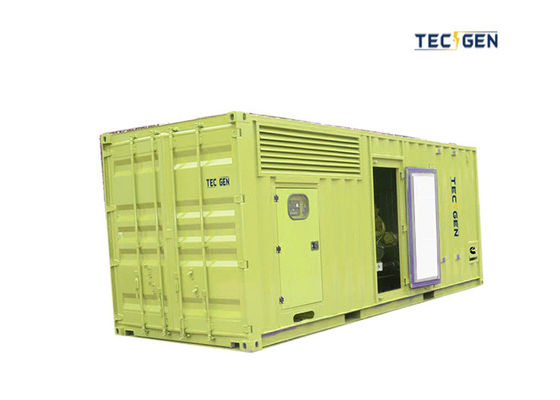

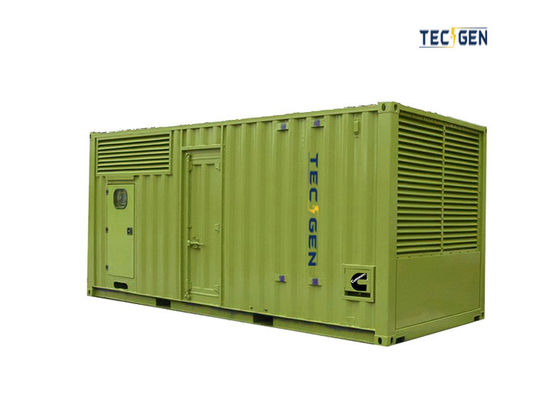

640kW Container silent generator silent Cummins genset for bank emergency power use
Product Title:
640kW Container Silent Generator with Cummins Engine - Powerful & Quiet Solution
Standard Features:
Introducing the TG880CS, a robust 640kW / 800kVA container silent generator, purpose-built for reliable power generation. Powered by a Cummins KTA38-G2B diesel engine, this generator boasts a standby output of 704kW / 880kVA, ensuring uninterrupted power supply even during peak demand. Operating at a steady 50Hz with a rated voltage of 230/400V, it's the ideal choice for industrial, commercial, and backup power applications.
Key Features:
- Silent Operation: Equipped with advanced soundproofing technology, the TG880CS delivers 640kW of power while maintaining low noise levels, making it the Silent Cummins Genset you've been searching for.
- High Efficiency: Featuring a Tecgen TGI404S640 alternator, this generator achieves an impressive 92.50% efficiency, maximizing fuel economy and reducing operating costs.
- Durability: The Cummins KTA38-G2B engine, with its four-stroke, water-cooled, and turbocharged configuration, ensures long-lasting performance and minimal downtime.
- Intelligent Control: The Smartgen HGM6120N control system offers comprehensive monitoring and protection, including under-speed, over-speed, and coolant temperature alarms, ensuring safe and efficient operation.
640kW Container Silent Generator Specifications:
| 640kW Container Silent Generator Datasheet | |||||||||||||
| Genset Model | TG880CS | ||||||||||||
| Rated Output | 640kW / 800kVA | ||||||||||||
| Standby Output | 704kW / 880kVA | ||||||||||||
| Frequency | 50Hz | ||||||||||||
| Rated Voltage | 230/400V | ||||||||||||
| Output Type | Three Phase, 0.8 | ||||||||||||
| Rated Current (A) | 1154.7A | ||||||||||||
| Dimension (mm) | L6000 x W2100 x H2300 | ||||||||||||
| Gross Weight (kg) | 8800 | ||||||||||||
| Diesel Engine | Brand | Cummins Engine Co., Ltd | |||||||||||
| Model | KTA38-G2B | ||||||||||||
| Configuration | Four-stroke,Water-cooling,Direct Injection | ||||||||||||
| Rated Power | 711kW | ||||||||||||
| Rated Speed (rpm) | 1500rpm | ||||||||||||
| Cylinder No. | 12 | ||||||||||||
| Bore*Stroke (mm) | 159 x 159 | ||||||||||||
| Displacement(L) | 38 | ||||||||||||
| Intake | Turbocharged & Intecooled | ||||||||||||
| Oil Consumption (g/Kw*h) | 209@100% load | ||||||||||||
| Starting method | 24V DC | ||||||||||||
| Alternator | Brand | Tecgen | |||||||||||
| Model | TGI404S640 | ||||||||||||
| Rated Power | 640kW | ||||||||||||
| Materials | 100% pure copper | ||||||||||||
| Efficiency | 92.50% | ||||||||||||
| Voltage Regulation | <=±1 | ||||||||||||
| Voltage Regulation | Brushless, Self-excitation | ||||||||||||
| Insulation Class | H | ||||||||||||
| Option brands | Stamford / Leroy Somer / Meccalte | ||||||||||||
| Control System | Brand | Smartgen | |||||||||||
| Model | HGM6120N | ||||||||||||
| Working Voltage | DC8.0V to DC35.0V, continuous | ||||||||||||
| Overall Dimensions (mm) | 233*38.5*173 | ||||||||||||
| Panel Cutout (mm) | 219*158 | ||||||||||||
| Working Condition | 0 to 95 % RH. To IEC 60068-2-78 | ||||||||||||
| Functions | AMF/ATS | ||||||||||||
| RS485 & CAN communication | |||||||||||||
| 9 Inlet & 7 Outlet | |||||||||||||
| PLC & BTN | |||||||||||||
| Protections | Under-speed | ||||||||||||
| Over-speed | |||||||||||||
| Configurable crank connect | |||||||||||||
| Battery monitoring | |||||||||||||
| Charging alternator | |||||||||||||
| Pre-heat | |||||||||||||
| Coolant temperature | |||||||||||||
| Lube oil pressure | |||||||||||||
| Fuel level detection | |||||||||||||
| Fuel theft detection | |||||||||||||
| ECU communication failure | |||||||||||||
| ECU diagnostic lamp | |||||||||||||
| Option brands | Deepsea / Smartgen / ComAp / Mebay | ||||||||||||
| Genset option equipment | |||||||||||||
| Integrated-Fuel-Tank | ATS Box / Cabinet | ||||||||||||
| PMG Alternator | Sync Panel | ||||||||||||
| Trailer Type | Engine Heater | ||||||||||||
| Water Heater | Fuel – Water Separator | ||||||||||||
| Maintenance Timetable of Diesel Generating Set | |||||||||||||
| Items | Job | Content | Everyday | Every Week | Every Month | Every Six Month | Every Year or 250 Hours | ||||||
| Lubricating System | Check | Oil leakage | √ | √ | √ | √ | √ | ||||||
| Level of engine oil | √ | √ | √ | √ | √ | ||||||||
| Replace | Oil Filter | √ | √ | ||||||||||
| Engine Olil | √ | √ | |||||||||||
| Clean | Crankcase box | √ | √ | ||||||||||
| Cooling System | Check | Oil leakage | √ | √ | √ | √ | √ | ||||||
| Radiator Block | √ | √ | √ | ||||||||||
| Soft Tube and Joint | √ | √ | √ | ||||||||||
| Fluid | √ | √ | √ | √ | |||||||||
|
Antifreeze and Anticorrosion |
√ | √ | √ | ||||||||||
| Belt Status | √ | √ | |||||||||||
|
Add Grease lubricant |
Fan and Tensing | √ | √ | ||||||||||
| Belt wheel | √ | √ | |||||||||||
| Check | Driving Belt wheel and pump | √ | √ | ||||||||||
| Replace | Cooling Liquid | Every 12 months | |||||||||||
| Clean | Cooling System | ||||||||||||
| Airflow System | Check | Oil Gas | √ | √ | √ | ||||||||
| Cleaner | √ | √ | √ | √ | |||||||||
| Pipe Fittings and Joint | √ | √ | |||||||||||
| Replace | Core of Air Cleaner | √ | |||||||||||
| Fuel System | Check | Leakage | √ | √ | √ | √ | √ | ||||||
| Quality of Fuel | √ | √ | √ | √ | |||||||||
| Pump Nozzle | √ | ||||||||||||
| Fuel pipe and Joint | √ | √ | |||||||||||
| Oil Pump | √ | √ | √ | ||||||||||
| Discharged | Deposition of Fuel Tank | √ | √ | √ | |||||||||
| Replace | Filter of oil | √ | √ | ||||||||||
| Check | Nozzle | Every Two Years | |||||||||||
| Adjust | Value | √ | |||||||||||
Usage:
Suitable for a wide range of applications, from hospitals and data centers requiring continuous power supply to construction sites and remote locations where electricity grids are unreliable. The portable design with an integrated fuel tank and trailer options makes it easy to deploy and relocate as needed.
Advantages:
- Easy Maintenance: Regular maintenance tasks are simplified with accessible components and clear maintenance timetables.
- Versatile Connectivity: Supports RS485 and CAN communication for seamless integration into existing systems.
- Environmentally Friendly: Low oil consumption and efficient operation contribute to a greener footprint.
- Brand Flexibility: Choose from alternative alternator brands like Stamford, Leroy Somer, or Meccalte to suit your specific requirements.
Options:
- Integrated fuel tank for extended operation without refueling.
- ATS (Automatic Transfer Switch) box for seamless power transfer.
- Engine heater and water heater for cold climate operation.
- Fuel-water separator to protect your engine from contaminants.
FAQs:
Q: What is the noise level of the TG880CS?
A: The TG880CS is designed for silent operation, significantly reducing noise levels to ensure a comfortable working environment.
Q: Can I customize the alternator brand?
A: Yes, we offer the option to choose from alternative alternator brands like Stamford, Leroy Somer, or Meccalte to fit your specific needs.
Q: How do I ensure proper maintenance?
A: Regular checks for oil leakage, coolant levels, and engine oil levels are crucial. Our maintenance timetable guides you through the necessary steps for optimal performance.
Experience the power of the 640kW Container Silent Generator with Cummins Engine – a reliable, efficient, and eco-friendly solution for all your power generation needs.
