Standby 220kW Diesel Genset Silent Generator Set For Emergency Backup Power Use
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG275YCS |
| Minimum Order Quantity | 1 unit |
| Price | $9000 - $13000 |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 15 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Yuchai Silent Genset | Certificate | Ce/ISO/SGS/Soncap/Saso/COC |
|---|---|---|---|
| Frequency | 50Hz | Voltage | 220V/127V 380V/220V 400V/230V 415V/240V 480V/277V |
| Rated Power/Standby Power | 200kW / 250kVA, 220kW / 275kVA | Engine Model | YCA08350-D30 |
| Controller Brand | DEIF | Color Available | White, Blue, Red, Yellow And Customized Color |
| Highlight | 220kW diesel genset,Silent diesel genset,Emergency backup power diesel genset |
||
Product Description

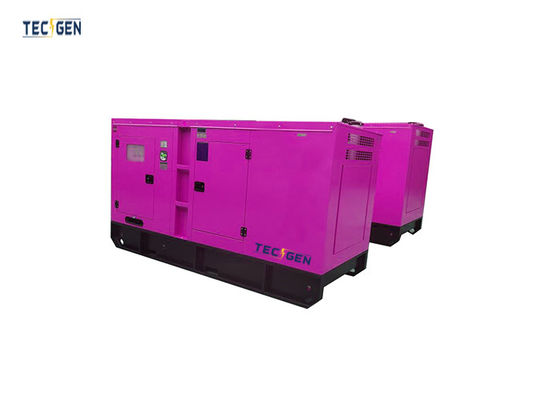

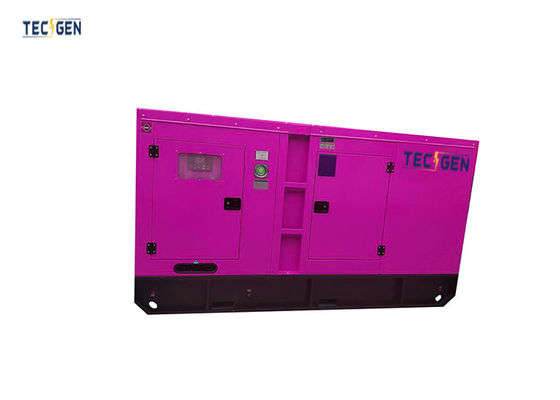

Standby 220kW diesel genset silent generator set for emergency backup power use
Product Description: Standby 220kW Diesel Genset - Silent Generator Set for Reliable Power Backup
Introducing our premium Standby 220kW Diesel Genset, the ultimate silent generator set designed for seamless power backup in critical applications. Whether you're in need of a reliable power source for hospitals, data centers, or remote industrial sites, our TG275YCS model offers unparalleled performance and efficiency, ensuring uninterrupted power supply even during unexpected outages.
Standard Features:
- Powerful Engine: Equipped with the robust Yuchai YCA08350-D30 engine, delivering a maximum power of 259kW, this genset boasts a standby capacity of 220kW/275kVA, ensuring ample power for even the most demanding applications.
- Silent Operation: The enclosed soundproof canopy reduces noise levels significantly, making it an ideal silent generator set for noise-sensitive environments. Perfect for residential areas or anywhere quiet operation is crucial.
- Stable Voltage: Equipped with an AVR (Automatic Voltage Regulator), our generator maintains a steady state voltage regulation of 1%, ensuring clean and stable power output for sensitive electronic equipment.
- Easy Control: Managed by the advanced DEIF SGC-420 controller, featuring AMF (Automatic Mains Failure) module, automatic battery charger, and emergency stop push button, operation is intuitive and hassle-free.
Key Features:
- Turbocharged & Intercooled: The engine's turbocharging and intercooling system enhances performance and efficiency, maximizing fuel economy and reducing emissions.
- High-Quality Alternator: The Fujian Tecgen Power TGI274S200 alternator ensures reliable power generation with a rate output of 250kVA, providing clean and stable AC power.
- Long-lasting Durability: With a robust construction and high-quality components, this genset is built to last, ensuring years of reliable service.
- Versatile Fuel Tank: An 8-hour fuel tank capacity allows for extended runtime without the need for frequent refueling, making it ideal for remote or off-grid applications.
Standby 220kW Diesel Genset Specification:
| Technical Specification: | ||
| Standby 220kW Diesel Genset Specification | ||
| Genset Model | TG275YC | TG275YCS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 415/240V | |
| Phase | 3 | |
| Rate Current (A) | 347.8 | |
| Prime Power | 200kW / 250kVA | |
| Standby Power | 220kW / 275kVA | |
| Engine Model | YCA08350-D30 | |
| Alternator Model | TGI274S200 | |
| Controller | DEIF SGC-420 | |
| Breaker | CHNT | |
| Fuel Tank Capacity | 8 running hours | |
| Weight And Dimensions | ||
| Length (mm) | 2750 | 4000 |
| Width (mm) | 1150 | 1400 |
| Height (mm) | 1680 | 2100 |
| Weight (kgs) | 2790 | 3300 |
| Engine Specification | ||
| Engine Brand | Yuchai | |
| Engine Model | YCA08350-D30 | |
| Max Power | 259kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged & Intercooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 110 x 132 | |
| Displacement (L) | 7.53 | |
| Cooling | water | |
| Compression Ratio | 16:1 | |
| Engine Oil capacity (L) | 41 | |
| Coolant Capacity ( In radiator) | 41 | |
| Governor | ECM | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 47.6 | |
| 75% Load (L/h) | 35.7 | |
| 50% Load (L/h) | 23.8 | |
| 25% Load (L/h) | 11.9 | |
| Alternator Specification | ||
| Brand | Fujian Tecgen Power Co., Ltd | |
| Model | TGI274S200 | |
| Rate Output | 250kVA | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | single | |
| Controller System | ||
| Brand | DEIF | |
| Model | SGC-420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Usage:
Ideal for a wide range of applications requiring reliable standby power, including hospitals, telecommunications centers, emergency services, construction sites, and more. Its silent operation and powerful performance make it the perfect choice for any situation where uninterrupted power is vital.
Advantage:
- Instant Power Backup: In the event of a power outage, the Standby 220kW Diesel Genset automatically starts up, providing instant power backup to critical loads.
- Low Maintenance: Designed for easy maintenance, with accessible components and user-friendly control systems, minimizing downtime and maintenance costs.
- Eco-Friendly: Efficient fuel consumption and low emissions make this genset an environmentally responsible choice for power backup.
- Customizable Options: With a range of optional equipment available, including ATS boxes, remote controls, and parallel panels, this genset can be tailored to meet your specific needs.
Optional Equipment:
- ATS Box for seamless transfer between mains and generator power
- Remote Control for convenient monitoring and operation from a distance
- Daily Fuel Tank for extended autonomy
- Engine and Water Heaters for cold weather operation
- Fuel-Water Separator for cleaner fuel intake
- Trailer Type for easy transportation and deployment
- 3000 Hours Spare Parts Kit for maintenance readiness
FAQ:
Q: How does the Standby 220kW Diesel Genset ensure silent operation?
A: The genset is housed in an enclosed soundproof canopy, effectively reducing noise levels to make it suitable for noise-sensitive environments.
Q: What is the maximum power output of the engine?
A: The Yuchai YCA08350-D30 engine has a maximum power output of 259kW, with a standby capacity of 220kW/275kVA.
Q: How does the AVR maintain stable voltage?
A: The Automatic Voltage Regulator (AVR) continuously monitors and adjusts the output voltage to maintain a steady state voltage regulation of 1%, ensuring clean and stable power for sensitive loads.
Experience the reliability and efficiency of our Standby 220kW Diesel Genset - the ultimate silent generator set for your power backup needs. Contact us today to learn more and discover how our products can enhance your power security.
