900kW Cummins Engine Genset Open Type Diesel Generator For Heavy Duty Continuous Use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Open Type Diesel Generator | Model Series | Tecgen Cummins |
|---|---|---|---|
| Cummins Power Range | 16kW - 1200kW | Engine Model | KTA38-G9 |
| Speed | 1500rpm | Rated Voltage | 415/240V, Various Voltage Available |
| Prime Power | 900kW | Engine Manufacture | Chongqing Cummins Engine Co., Ltd |
| Highlight | Heavy Duty Cummins engine genset,900kW Cummins engine genset,Open Type Cummins engine genset |
||
Product Description

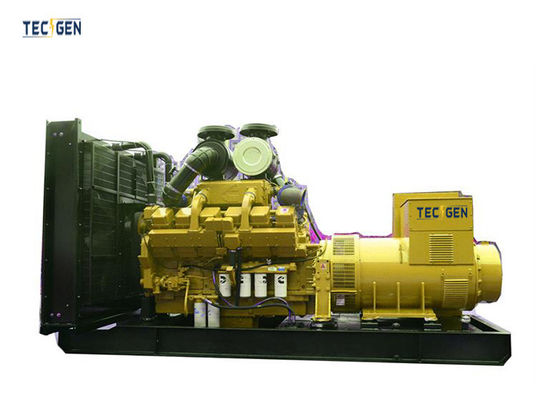

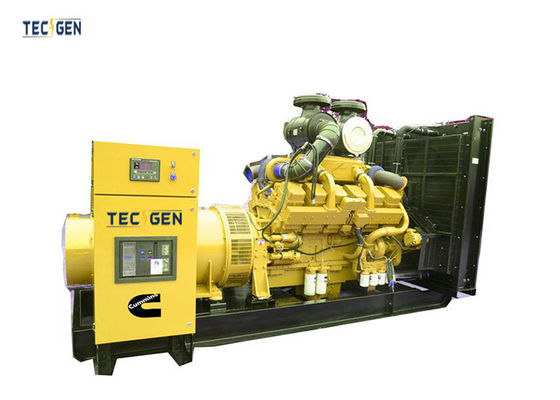

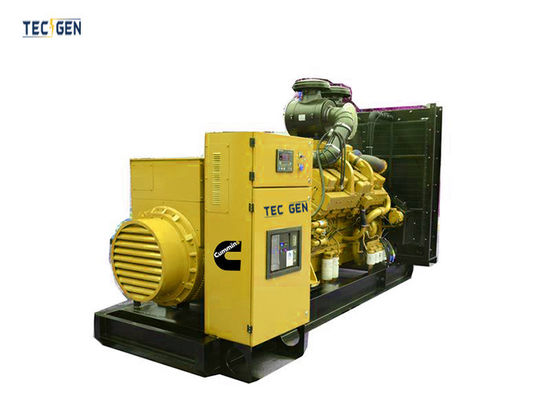

900kW Cummins engine genset open type diesel generator for heavy duty continuous use
Introducing the Powerful 900kW Cummins Engine Genset: Your Reliable Open Type Diesel Generator Solution
Empower your industrial operations with the formidable 900kW Cummins Engine Genset, a masterpiece of engineering excellence designed to meet the most demanding power requirements. This open type diesel generator, featuring the iconic CCEC Cummins KTA38-G9 engine, sets the benchmark for reliability, efficiency, and durability in the power generation industry.
Standard Features:
- Powerful Engine: Equipped with the KTA38-G9, a 12-cylinder, four-stroke, water-cooled, direct-injection diesel engine, delivering a maximum output of 1089kW, ensuring ample power reserves for critical applications.
- Versatile Output: Rated at 900kW/1125kVA with a standby capacity of 990kW/1238kVA, this genset effortlessly adapts to varying loads, ensuring uninterrupted power supply.
- Electric Governor: Precisely controls engine speed for stable frequency (50Hz) and voltage (240/415V), ensuring clean and reliable power output.
- Rugged Construction: Built to withstand harsh environments, the generator's sturdy frame and components ensure long-term durability.
Key Features:
- Efficient Alternator: The Tecgen TGI404S900 alternator boasts a 92.50% efficiency rating, crafted from 100% pure copper, ensuring minimal energy loss and maximum power conversion.
- Brushless Design: Self-excitation and brushless voltage regulation (+/-1%) ensure maintenance-free operation and stable voltage output, enhancing overall system reliability.
- Advanced Control System: Integrated with the DEIF SGC-420 control panel, offering comprehensive monitoring and protection functions, including under-speed, over-speed, coolant temperature, and fuel level detection, ensuring safe and efficient operation.
900kW Cummins Engine Genset Specifications:
| 900kW Cummins Engine Genset Datasheet | ||
| Genset Model | TG1238C | |
| Rated Power | 900kW / 1125kVA | |
| Standby Power | 990kW / 1238kVA | |
| Governor | Electric | |
| Frequency | 50Hz | |
| Rated Voltage | 240 / 415V | |
| Rated Current (A) | 1565.2A | |
| Dimension (mm) | L4800 x W2100 x H2300 | |
| Gross Weight (kg) | 8600 | |
| Diesel Engine | Brand | CCEC Cummins |
| Model | KTA38-G9 | |
| Configuration | Four-stroke,Water-cooling,Direct Injection | |
| Max Engine Power | 1089kW | |
| Rated Speed (rpm) | 1500rpm | |
| Cylinder No. | 12 | |
| Bore*Stroke (mm) | 159 x 159 | |
| Displacement(L) | 37.8 | |
| Intake | Turbocharged and Aftercooled | |
| Fuel Consumption (g/Kw*h) | 219@100% load | |
| Starting method | 24V DC / 200Ah | |
| Alternator | Brand | Tecgen |
| Model | TGI404S900 | |
| Rated Power | 900kW | |
| Materials | 100% pure copper | |
| Efficiency | 92.50% | |
| Voltage Regulation | <=±1 | |
| Voltage Regulation | Brushless, Self-excitation | |
| Insulation Class | H | |
| Option brands | Stamford / Leroy Somer / Meccalte | |
| Control System | Brand | DEIF |
| Model | SGC-420 | |
| Working Voltage | DC8.0V to DC35.0V, continuous | |
| Overall Dimensions (mm) | 233*38.5*173 | |
| Panel Cutout (mm) | 219*158 | |
| Working Condition | 0 to 95 % RH. To IEC 60068-2-78 | |
| Functions | AMF/ATS | |
| RS485 & CAN communication | ||
| 9 Inlet & 7 Outlet | ||
| PLC & BTN | ||
| Protections | Under-speed | |
| Over-speed | ||
| Configurable crank connect | ||
| Battery monitoring | ||
| Charging alternator | ||
| Pre-heat | ||
| Coolant temperature | ||
| Lube oil pressure | ||
| Fuel level detection | ||
| Fuel theft detection | ||
| ECU communication failure | ||
| ECU diagnostic lamp | ||
| Option brands | Deepsea / Smartgen / ComAp / Mebay | |
| Genset option equipment | ||
| Integrated-Fuel-Tank | ATS Box / Cabinet | |
| PMG Alternator | Sync Panel | |
| Trailer Type | Engine Heater | |
| Water Heater | Fuel – Water Separator | |
Usage:
Ideal for use in a wide range of industries, including construction sites, hospitals, data centers, and industrial complexes, the 900kW Cummins Engine Genset serves as a primary or backup power source, ensuring continuous operation during power outages or grid failures. Its open type design allows for easy maintenance and accessibility, making it the perfect choice for large-scale power generation needs.
Advantages:
- High-Performance Engine: The Cummins KTA38-G9 engine delivers unparalleled power and torque, ensuring swift response to load changes.
- Cost-Effective: With low fuel consumption (219g/kWh at 100% load) and high efficiency, this genset offers exceptional value for money.
- Easy Maintenance: Open type design and modular components facilitate swift maintenance and repairs, minimizing downtime.
- Versatile Options: Choose from a range of optional equipment, including integrated fuel tanks, ATS boxes, PMG alternators, and more, to tailor the genset to your specific requirements.
Options:
- Integrated Fuel Tank: Ensure continuous operation with a built-in fuel tank that eliminates the need for frequent refueling.
- ATS Box/Cabinet: Seamlessly switch between primary and backup power sources with an automatic transfer switch.
- Engine Heater & Water Heater: Protect your investment from cold weather with optional heaters for the engine and cooling system.
- Control System Alternatives: Select from leading control system brands like Deepsea, Smartgen, ComAp, or Mebay for advanced monitoring and control capabilities.
FAQs:
Q: What is the maximum engine power of the 900kW Cummins Engine Genset?
A: The KTA38-G9 engine delivers a maximum power output of 1089kW.
Q: What is the rated voltage and frequency of this genset?
A: The genset is rated at 240/415V and 50Hz, ensuring compatibility with most electrical systems.
Q: Can I customize the control system?
A: Yes, you can choose from various control system options, including DEIF, Deepsea, Smartgen, ComAp, and Mebay, to suit your specific monitoring and protection needs.
Experience the unbeatable power and reliability of the 900kW Cummins Engine Genset – your trusted partner for all your open type diesel generator requirements. Order now and elevate your power generation capabilities to new heights!
