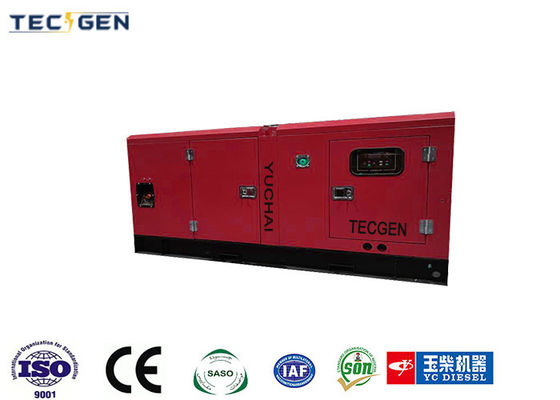

100kW Yuchai Generator Silent Enclosed Genset With Brushless Type Alternator For Backup Power
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG138YCS |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Yuchai Diesel Generator | Type | Silent |
|---|---|---|---|
| Output Type | 3 Phase , 4 Wire | Voltage | 220/380V |
| Engine Brand | Yuchai | Engine Model | YC4A180L-D20 |
| Engine Cylinder | 4 Cylinder | Genset Output | 100kW / 110kW |
| Highlight | 100kW backup power generator,100kW silent enclosed genset,100kW Yuchai generator |
||
Product Description
100kW Yuchai generator silent enclosed genset with brushless type alternator for backup power
Product Description: 100kW Yuchai Generator - Silent Enclosed Genset
Standard Features:
Introducing the ultimate power solution for your critical needs, the 100kW Yuchai Generator - a silent enclosed genset designed for seamless integration into any environment. This TG138YCS model boasts a powerful Yuchai diesel engine, coupled with a Stamford UCI 274ES alternator, ensuring reliable and efficient power generation. With a frequency of 50Hz and a speed of 1500rpm, it delivers a prime power of 125kVA/100kW and a standby power of 138kVA/110kW, perfect for supporting medium to large-scale applications.
Key Features:
- Silent Operation: The soundproof canopy, crafted from galvanized steel plate, ensures minimal noise emission, making it ideal for residential, commercial, and industrial use where quiet operation is paramount.
- Durable & Reliable: Equipped with a 4-cylinder YC4A180L-D20 Yuchai engine, renowned for its durability and performance, this generator ensures continuous power supply even under demanding conditions.
- Advanced Controller: The DEIF SGC-420 controller features AMF module for automatic control, emergency stop, and alarm functions, including over/under speed, low/high battery voltage, and overload protection, ensuring hassle-free operation.
- Versatile Power Output: Offering both 220V and 380V three-phase power, it caters to a wide range of electrical equipment, making it the perfect choice for construction sites, hospitals, data centers, and more.
- Efficient Fuel Consumption: With a fuel consumption rate of 26.2L at 100% load, it ensures maximum energy savings while maintaining optimal performance.
100kW Yuchai Generator Specifications:
| 100kW Yuchai Generator Specifications | |||
| Genset | Type | Silent | |
| Model | TG138YCS | ||
| Frequency | 50Hz | ||
| Speed | 1500rpm | ||
| Voltage | 220/380V | ||
| Phase | Three Phase | ||
| Prime Power | 125kVA / 100kW | ||
| Standby Power | 138kVA / 110kW | ||
| Rate Current | 189.9A | ||
| Breaker | Delixi / CHNT / ABB | ||
| Dimensions | L2900 x W1150 x H1700mm | ||
| Weight | 2050kgs | ||

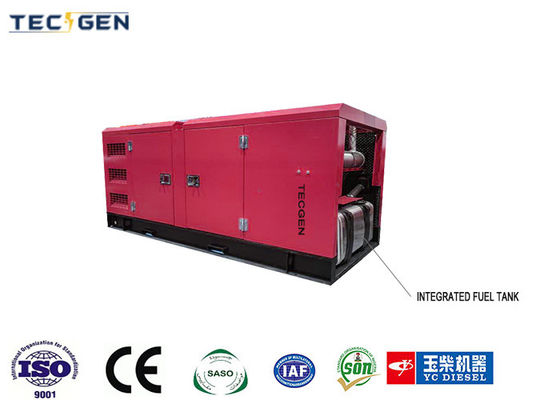

| Fuel Capacity | 200L (Integrated Fuel Tank) | ||
| General Features | |||
| Engine | Yuchai | Radiator | 50degrees max, fans driven by belt with safety guard |
| Alternator | Stamford | Charger | 24V trickle charger |
| Controller | DEIF SGC-420 | Governor | Mechanical or electronic |
| Circuit Breaker | DELIXI / CHNT / ABB | Canopy | Soundproof made by galvanized steel plate |
| ATS | AISIKAI/ABB | Filters | Dry type air filter, fuel filter, oil filter |
| Fuel Tank | 8hours / 12hours / 24hours, or as required | Absorber | High strength rubber |
| Start System | 12/24V electric start | Muffler | Ripple flex exhaust pipe, exhaust siphon, flange |
| Battery | Varta Maintenance free type | Manuals | Complete with engine, alternator and genset |
| Yuchai Diesel Engine Technical Data | |||
| Brand | Yuchai | ||
| Engine Model | YC4A180L-D20 | ||
| Rated Power | 120kW | ||
| Cylinder | 4 Cylinder | ||
| Bore*Stroke | 108*132mm | ||
| Displacement | 4L | ||
| Aspiration | Turbocharged & Intercooled | ||
| Speed | 1500rpm | ||
| Cooling System | Water Cooled | ||
| Fuel Consumption at 100% Load | 26.2L | ||
| Speed Governor | Electric | ||
| Start System | 12/24V Electric Starter | ||
| Option Engine Brands | |||
| Cummins, Deutz, Weifang Ricardo, Perkins, Yangdong, Quanchai, FAWDE, SDEC, Weichai, Yuchai, VMAN, JX ISUZU, YANMAR, Beinei Aircooled, Caterpillar, MITSUBISHI., ETC | |||
| AC Alternator Technical Data | |||
| Brand | Stamford | ||
| Alternator Model | UCI 274ES | ||
| Rated Power | 100kW | ||
| Speed | 1500rpm | ||
| Frequency | 50Hz | ||
| Phase | Three Phase, Four Wire | ||
| Power Factor | 0.8 | ||
| Exciter type | Single bearing, brushless, Self-excited | ||
| Voltage adjust range | ≥5% | ||
| Insulation Grade | H | ||
| Protection Grade | IP23 | ||
| Option Alternator Brands | |||
| Stamford, Leory Somer, Meccalte, Marathon, Tecgen | |||
| Controller System | |||
| Brand | DEIF | ||
| Model | SGC-420 | ||
| Functions | Control with AMF module | ||
| Static with auto. battery charger | |||
| Emergency stop push button | |||
| ATS Connection & RS485 & CANbus & PLS & BTS Functions | |||
| Alarms | Over and Under Speed | ||
| Low and High Battery Voltage | |||
| Start and Stop Failure | |||
| Charge Fail | |||
| Over Current | |||
| Under / Over Generator Voltage | |||
| Low Oil Pressure | |||
| Emergency Stop | |||
| High Engine Temperature | |||
| Over Load | |||
| OPTIONAL EQUIPMENTS | |||
| Daily Fuel Tank | Parallel Panel | Remote Control Panel | Soundproof Type |
| Engine Heater | Permanent Magnet | Auto. Transfer Switch | Trailer Type |
| Water Heater | Generator (PMG) | Switch Box | Spare Parts |
Usage:
The 100kW Yuchai Generator - Silent Enclosed Genset is perfect for applications requiring uninterrupted power supply, such as emergency backup, remote locations, and mission-critical facilities. Its compact design and silent operation make it an ideal solution for noise-sensitive environments like hospitals, schools, and residential complexes.
Advantage:
- Increased Efficiency: The combination of a turbocharged & intercooled engine and a brushless alternator results in higher energy conversion efficiency, reducing operational costs.
- Easy Maintenance: Equipped with dry-type air, fuel, and oil filters, along with a Varta maintenance-free battery, it simplifies routine maintenance and prolongs component life.
- Customization Options: Choose from various circuit breaker brands (Delixi, CHNT, ABB) and optional equipment like a daily fuel tank, engine heater, and remote control panel to tailor the generator to your specific needs.
- Rapid Deployment: With a compact footprint (L2900 x W1150 x H1700mm) and a weight of 2050kgs, it's easy to transport and install, ensuring quick power restoration during emergencies.
Option:
- Upgrade to an AISIKAI/ABB automatic transfer switch (ATS) for seamless power transfer between the generator and utility grid.
- Select from alternative engine brands like Cummins, Perkins, or Deutz for enhanced versatility and performance.
- Equip with a permanent magnet generator (PMG) for additional power generation capabilities.
FAQ:
Q: What is the maximum fuel capacity of this generator?
A: The integrated fuel tank holds up to 200L, providing extended runtime depending on load requirements.
Q: How does the soundproof canopy ensure low noise levels?
A: The canopy is constructed from high-quality galvanized steel plate and incorporates advanced sound-absorbing materials to minimize noise emissions.
Q: Can I customize the generator with additional features?
A: Absolutely! We offer a range of optional equipment, including a daily fuel tank, remote control panel, and engine heater, to suit your specific needs.
With its impressive list of standard and key features, the 100kW Yuchai Generator - Silent Enclosed Genset is the ultimate power solution for all your critical needs. Contact us today to learn more about how this generator can enhance your power backup capabilities.
