31kW Isuzu Diesel Generator Silent Power Generator Powered By JX Isuzu Diesel Engine

Place of Origin NINGDE, CHINA
Brand Name Tecgen Power
Certification ISO / CE / SASO / CIQ / COC
Model Number TG39JISD6
Minimum Order Quantity 1 Set
Price Negotiation
Packaging Details Foam and PE film package / Plywood case
Delivery Time 15-30 Working Days
Payment Terms T/T or L/C
Supply Ability 300 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standby Genset Power I39kVA / 31kW Equipment Options ATS, Water Heater, Remote Control
Output Type 3 Phase / 4 Wire Alternator Brushless Type AC Alternator
Frequency 60Hz Usage Continuous Use
Rate Genset Power 35kVA / 28kW Engine Model JX ISUZU JE493ZDB-03
Highlight

31kW isuzu diesel generator

,

Silent isuzu diesel generator

,

Diesel isuzu generator

Leave a Message
Product Description

31kW Isuzu diesel generator silent power generator powered by JX Isuzu diesel engine

Product Description:

Our generators are designed to run at a frequency of 60Hz, making them perfect for a wide range of applications. Whether you're looking to power your home, your business, or your industrial equipment, our generators have the power and capability to meet your needs.

One of the key features of our Silent Power Generators is the brushless type AC alternator. This type of alternator is highly efficient and reliable, providing you with a stable and consistent source of energy. With this alternator, you can be sure that your generator will run smoothly and efficiently, no matter how long you need to use it.

In addition to the standard features of our Silent Power Generators, we also offer a range of equipment options to help you get the most out of your generator. These options include an ATS (Automatic Transfer Switch), a water heater, and a remote control. With these options, you can customize your generator to meet your specific needs and preferences.

Our Silent Power Generators are designed to provide a 3 phase / 4 wire output type, making them highly versatile and adaptable to a wide range of applications. Whether you're powering industrial equipment, running a business, or just keeping your home running smoothly, our generators have the power and flexibility to meet your needs.

If you're in the market for a powerful and reliable generator, look no further than our 1800rpm Diesel Generator. This JX Isuzu Diesel Genset is designed to provide you with a constant stream of energy, no matter what your needs may be. With its powerful engine and efficient design, this generator is the perfect choice for anyone who needs a reliable source of energy.

In conclusion, our Silent Power Generators are the ideal choice for anyone who needs a reliable and efficient source of energy. With their advanced features, customizable options, and powerful design, these generators are the perfect choice for businesses, homeowners and industrial users alike.



Features:

  • Product Name: Silent Power Generators
  • Standby Genset Power: 39kVA / 31kW
  • Usage: Continuous Use
  • Rate Genset Power: 35kVA / 28kW
  • Frequency: 60Hz
  • Engine Model: JX ISUZU JE493ZDB-03
  • 1800rpm Diesel Generator
  • Soundproof Genset
  • JX Isuzu Diesel Genset

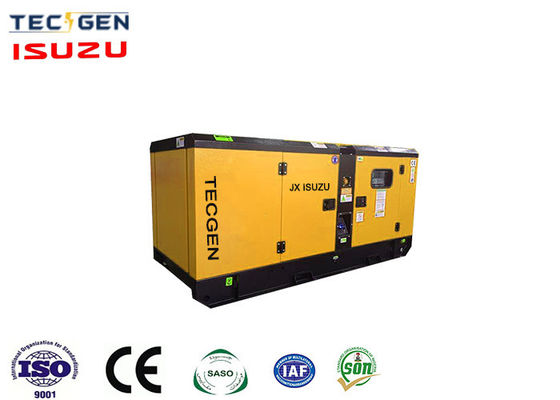

31kW Isuzu Diesel Generator Silent Power Generator Powered By JX Isuzu Diesel Engine 0



31kW Isuzu Diesel Generator Specifications:



Isuzu Diesel Generator Details
Diesel Genset Type Silent & Soundproof
Model TG39JISD6
Frequency 60Hz
Speed 1800rpm
Voltage 240V
Phase Three Phase
Prime Power 35kVA / 28kW
Standby Power 39kVA / 31kW
Rate Current 84.2A
ATS 100A Wall Mounted ATS Box
Dimensions L2250 x W1000 x H1130mm
Weight 910kgs
Fuel Capacity 80L
General Features
Engine JX ISUZU Radiator 50degrees max, fans driven by belt with safety guard
Alternator Tecgen Charger 24V trickle charger
Controller DEIF SGC-420 Governor Mechanical or electronic
Circuit Breaker DELIXI / CHNT / ABB Canopy Soundproof made by galvanized steel plate
ATS AISIKAI/ABB Filters Dry type air filter, fuel filter, oil filter
Fuel Tank 8hours / 12hours / 24hours, or as required Absorber High strength rubber
Start System 12/24V electric start Muffler Ripple flex exhaust pipe, exhaust siphon, flange
Battery Varta Maintenance free type Manuals Complete with engine, alternator and genset
JX ISUZU Diesel Engine Technical Data
Brand JX ISUZU
Engine Model JE493ZDB-03
Rated Power 34kW
Cylinder 4 Cylinder
Bore*Stroke 93*102mm
Displacement 2.771L
Aspiration Turbo
Speed 1800rpm
Cooling System Water Cooled
Fuel Consumption at 100% Load 7.3L
Speed Governor MECH
Start System 12/24V Electric Starter
Option Engine Brands
Cummins, Deutz, Weifang Ricardo, Perkins, Yangdong, Quanchai, FAWDE, SDEC, Weichai, Yuchai, VMAN, JX ISUZU, YANMAR, Beinei Aircooled, Caterpillar, MITSUBISHI., ETC
AC Alternator Technical Data
Brand Tecgen
Alternator Model TGI184S28
Max Power 31kW
Speed 1800rpm
Frequency 60Hz
Phase Three Phase, Four Wire
Power Factor 0.8
Exciter type Single bearing, brushless, Self-excited
Voltage adjust range ≥5%
Insulation Grade H
Protection Grade IP23
Option Alternator Brands
Stamford, Leory Somer, Meccalte, Marathon, Tecgen
Controller System
Brand DEIF
Model SGC-420
Functions Control with AMF module
Static with auto. battery charger
Emergency stop push button
ATS Connection & RS485 & CANbus & PLS & BTS Functions
Alarms Over and Under Speed
Low and High Battery Voltage
Start and Stop Failure
Charge Fail
Over Current
Under / Over Generator Voltage
Low Oil Pressure
Emergency Stop
High Engine Temperature
Over Load
OPTIONAL EQUIPMENTS
Daily Fuel Tank Parallel Panel Remote Control Panel Soundproof Type
Engine Heater Permanent Magnet Auto. Transfer Switch Trailer Type
Water Heater Generator (PMG) Switch Box Spare Parts

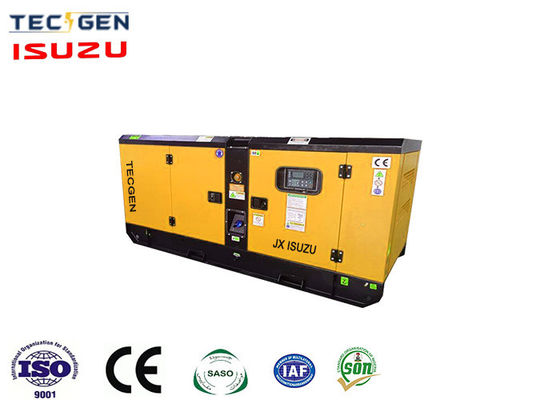

31kW Isuzu Diesel Generator Silent Power Generator Powered By JX Isuzu Diesel Engine 1

Applications:

Tecgen Power's TG39JISD6 is a reliable JX Isuzu Diesel Generator that can be used for various applications. With its high-quality performance, this generator set can be used for continuous use, making it perfect for industrial and commercial settings. The following are some of the product application occasions and scenarios:

  • Construction Sites: The TG39JISD6 is perfect for providing power to construction sites where electricity is not available. Its ability to provide continuous power makes it useful for powering tools and equipment.
  • Emergency Power: In case of power outages, the TG39JISD6 can be used as a backup power source for hospitals, data centers, and other critical facilities.
  • Outdoor Events: The generator set is also ideal for outdoor events such as concerts and festivals. It can provide power for lighting, sound systems, and other equipment.
  • Remote Locations: The TG39JISD6 can be used in remote locations such as mining sites, oil rigs, and other places where electricity is not available. Its rugged construction makes it suitable for harsh environments.

The JX Isuzu Diesel Generator is equipped with a brushless type AC alternator, making it more efficient and reliable. It also has a standby genset power of 39kVA / 31kW and a rate genset power of 35kVA / 28kW. The generator set's output type is 3 phase / 4 wire. It has received ISO / CE / SASO / CIQ / COC certification, ensuring its quality and safety.

The minimum order quantity for the TGJISD6 is 1 set, and its price is negotiable. It can be packaged using foam and PE film or plywood cases to ensure safe transportation. The delivery time takes 15-30 working days, and the payment terms offered are T/T or L/C. With a supply ability of 300 units per month, Tecgen Power's JX Isuzu Diesel Generator is a reliable choice for your power needs.



FAQ:

Q1: What is the Brand Name of the Silent Power Generator?

A1: The Brand Name of the Silent Power Generator is Tecgen Power.

Q2: What is the Model Number of the Silent Power Generator?

A2: The Model Number of the Silent Power Generator is TGJISD6.

Q3: Where is the Silent Power Generator manufactured?

A3: The Silent Power Generator is manufactured in NINGDE, CHINA.

Q4: What certifications does the Silent Power Generator have?

A4: The Silent Power Generator is certified with ISO / CE / SASO / CIQ / COC.

Q5: What is the Minimum Order Quantity for the Silent Power Generator?

A5: The Minimum Order Quantity for the Silent Power Generator is 1 Set.

Q6: What is the price of the Silent Power Generator?

A6: The price of the Silent Power Generator is negotiable.

Q7: What are the Packaging Details for the Silent Power Generator?

A7: The Packaging Details for the Silent Power Generator are Foam and PE film package / Plywood case.

Q8: How long does it take to deliver the Silent Power Generator?

A8: It takes 15-30 Working Days to deliver the Silent Power Generator.

Q9: What are the Payment Terms for the Silent Power Generator?

A9: The Payment Terms for the Silent Power Generator are T/T or L/C.

Q10: What is the Supply Ability of the Silent Power Generator?

A10: The Supply Ability of the Silent Power Generator is 300 Units Per Month.
