36kW JX Isuzu 60Hz Silent Diesel Generator Powered By JX Isuzu Water Cooled Engine

Place of Origin NINGDE, CHINA
Brand Name Tecgen Power
Certification ISO / CE / SASO / CIQ / COC
Model Number TG50JISD6
Minimum Order Quantity 1 Set
Price Negotiation
Packaging Details Foam and PE film package / Plywood case
Delivery Time 15-30 Working Days
Payment Terms T/T or L/C
Supply Ability 300 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Alternator Brushless Type AC Alternator Rate Genset Power 45kVA / 36kW
Engine Model JX ISUZU JE493ZLDB-01 Output Type 3 Phase / 4 Wire
Standby Genset Power 50kVA / 40kW Equipment Options ATS, Water Heater, Remote Control
Frequency 60Hz Usage Continuous Use
Highlight

36kW Silent Diesel Generator

,

60Hz Silent Diesel Generator

,

Water Cooled Engine Silent Diesel Generator

Leave a Message
Product Description

36kW JX Isuzu diesel generator 60Hz silent generator powered by JX Isuzu water cooled engine

Product Description:

The Silent Diesel Generator is designed to operate at a low noise level, making it perfect for use in residential areas or other noise-sensitive environments. The 1800rpm Diesel Generator is also fuel-efficient, ensuring that you get the most out of your investment.

This 60Hz Silent Genset is a 3 Phase / 4 Wire generator, meaning that it can provide power to a wide range of applications. With a Standby Genset Power of 50kVA / 40kW and a Rate Genset Power of 45kVA / 36kW, this generator can handle your power needs with ease.

The Silent Power Generators also come equipped with a Brushless Type AC Alternator, which provides reliable and efficient power output. Whether you need backup power for your home or business, the Silent Power Generators are a great choice.



Features:

  • Product Name: Silent Power Generators
  • Output Type: 3 Phase / 4 Wire
  • Alternator: Brushless Type AC Alternator
  • Usage: Continuous Use
  • Rate Genset Power: 45kVA / 36kW
  • Equipment Options: ATS, Water Heater, Remote Control
  • Output Description:
    • Diesel Power Generator
    • Silent Diesel Generator
    • 60Hz Silent Generator

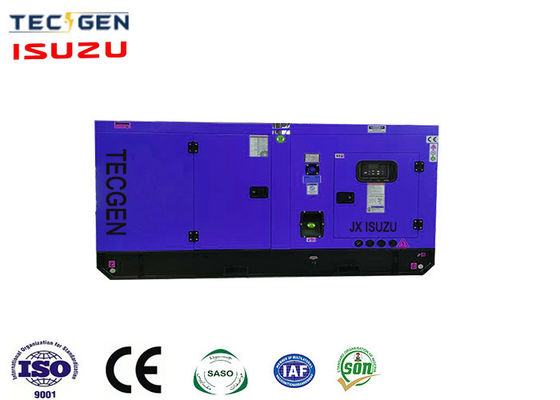

36kW JX Isuzu 60Hz Silent Diesel Generator Powered By JX Isuzu Water Cooled Engine 0

Technical Parameters:

36kW JX Isuzu Diesel Generator Details
Diesel Genset Type Silent & Soundproof
Model TG50JISD6
Frequency 60Hz
Speed 1800rpm
Voltage 240V
Phase Three Phase
Prime Power 45kVA / 36kW
Standby Power 50kVA / 40kW
Rate Current 108.3A
Breaker Delixi / CHNT / ABB
Dimensions L2400 x W1050 x H1400mm
Weight 1400kgs
Fuel Capacity 100L
General Features
Engine JX ISUZU Radiator 50degrees max, fans driven by belt with safety guard
Alternator Tecgen Charger 24V trickle charger
Controller DEIF SGC-420 Governor Mechanical or electronic
Circuit Breaker DELIXI / CHNT / ABB Canopy Soundproof made by galvanized steel plate
ATS AISIKAI/ABB Filters Dry type air filter, fuel filter, oil filter
Fuel Tank 8hours / 12hours / 24hours, or as required Absorber High strength rubber
Start System 12/24V electric start Muffler Ripple flex exhaust pipe, exhaust siphon, flange
Battery Varta Maintenance free type Manuals Complete with engine, alternator and genset
JX ISUZU Diesel Engine Technical Data
Brand JX ISUZU
Engine Model JE493ZLDB-01
Rated Power 46kW
Cylinder 4 Cylinder
Bore*Stroke 93*102mm
Displacement 2.771L
Aspiration Turbo & Intercooled
Speed 1800rpm
Cooling System Water Cooled
Fuel Consumption at 100% Load 9.4L
Speed Governor MECH
Start System 12/24V Electric Starter
Option Engine Brands
Cummins, Deutz, Weifang Ricardo, Perkins, Yangdong, Quanchai, FAWDE, SDEC, Weichai, Yuchai, VMAN, JX ISUZU, YANMAR, Beinei Aircooled, Caterpillar, MITSUBISHI., ETC
AC Alternator Technical Data
Brand Tecgen
Alternator Model TGI184S36
Rate Power 36kW
Speed 1800rpm
Frequency 60Hz
Phase Three Phase, Four Wire
Power Factor 0.8
Exciter type Single bearing, brushless, Self-excited
Voltage adjust range ≥5%
Insulation Grade H
Protection Grade IP23
Option Alternator Brands
Stamford, Leory Somer, Meccalte, Marathon, Tecgen
Controller System
Brand DEIF
Model SGC-420
Functions Control with AMF module
Static with auto. battery charger
Emergency stop push button
ATS Connection & RS485 & CANbus & PLS & BTS Functions
Alarms Over and Under Speed
Low and High Battery Voltage
Start and Stop Failure
Charge Fail
Over Current
Under / Over Generator Voltage
Low Oil Pressure
Emergency Stop
High Engine Temperature
Over Load
OPTIONAL EQUIPMENTS
Daily Fuel Tank Parallel Panel Remote Control Panel Soundproof Type
Engine Heater Permanent Magnet Auto. Transfer Switch Trailer Type
Water Heater Generator (PMG) Switch Box Spare Parts

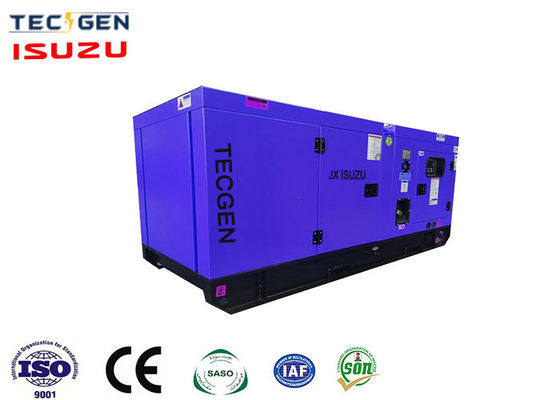

36kW JX Isuzu 60Hz Silent Diesel Generator Powered By JX Isuzu Water Cooled Engine 1

Applications:

The Tecgen Power TG50JISD6 Silent Power Generator is a high-quality diesel power generator that is perfect for a variety of occasions and scenarios. Whether you need backup power for your home, office, or industrial facility, this generator has you covered.

Thanks to its silent diesel generator design, this generator is ideal for use in areas where noise is a concern. It produces very little noise compared to other power generators, making it perfect for use in residential areas, hospitals, and other noise-sensitive environments.

The Tecgen Power TGJISD6 Silent Power Generator is made in NINGDE, CHINA, and is built to the highest standards of quality and durability. It is certified by ISO, CE, SASO, CIQ, and COC, ensuring that you are getting a top-quality product that meets all relevant safety and quality standards.

When you order the Tecgen Power TGJISD6 Silent Power Generator, you can choose from a range of equipment options to make sure that it meets your specific needs. These options include an ATS (Automatic Transfer Switch), a water heater, and a remote control.

The generator is equipped with a brushless type AC alternator that ensures reliable and efficient performance. The engine model is JX ISUZU JE493ZLDB-01, which is known for its durability and long lifespan. The generator produces 3 Phase / 4 Wire output, making it suitable for a wide range of applications.

The Tecgen Power TG50JISD6 Silent Power Generator has a frequency of 60Hz, and a supply ability of 300 units per month. The minimum order quantity is 1 set, and the price is negotiable. The packaging details include a foam and PE film package or plywood case, depending on your needs. The delivery time is 15-30 working days, and payment can be made via T/T or L/C.



FAQ:

Q1: What is the brand name of the silent power generator?

A1: The brand name of the silent power generator is Tecgen Power.

Q2: What is the model number of the silent power generator?

A2: The model number of the silent power generator is TG50JISD6.

Q3: Where is the silent power generator manufactured?

A3: The silent power generator is manufactured in NINGDE, CHINA.

Q4: What certifications does the silent power generator have?

A4: The silent power generator is certified with ISO, CE, SASO, CIQ, and COC.

Q5: What is the minimum order quantity for the silent power generator?

A5: The minimum order quantity for the silent power generator is 1 set.
