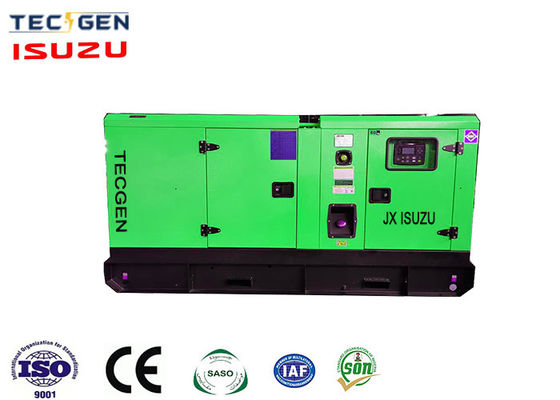

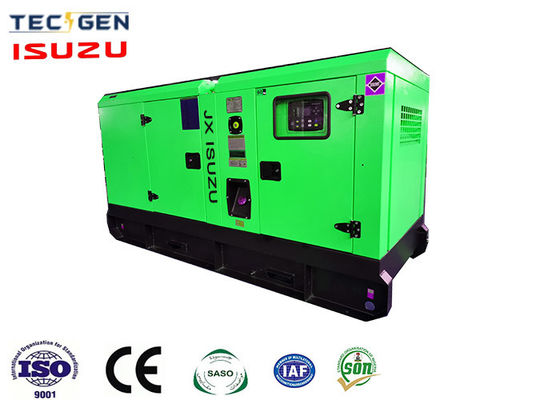

63kVA JX Isuzu Diesel silent genset 60Hz With JX Isuzu Engine For Continuous Use
| Place of Origin | NINGDE, CHINA |
|---|---|
| Brand Name | Tecgen Power |
| Certification | ISO / CE / SASO / CIQ / COC |
| Model Number | TG69JISD6 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiation |
| Packaging Details | Foam and PE film package / Plywood case |
| Delivery Time | 15-30 Working Days |
| Payment Terms | T/T or L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Alternator | Brushless Type AC Alternator | Standby Genset Power | 69kVA / 50kW |
|---|---|---|---|
| Engine Model | JX ISUZU JE493ZLDC-01 | Rate Genset Power | 63kVA / 50kW |
| Output Type | 3 Phase / 4 Wire | Frequency | 60Hz |
| Usage | Continuous Use | Equipment Options | ATS, Water Heater, Remote Control |
| Highlight | 63kVA silent genset,JX Isuzu silent genset,silent genset For Continuous Use |
||
Product Description
63kVA JX Isuzu diesel genset 60Hz silent genset with JX Isuzu engine for continuous use
Product Description:
The Silent Power Generator is ideal for use in various settings, including residential, commercial, and industrial applications. It is designed to operate quietly, minimizing noise pollution while providing reliable power. This JX Isuzu diesel generator is also easy to maintain, ensuring that it operates at peak performance for extended periods.
With its impressive power output and reliable performance, the Silent Power Generator is an excellent investment for anyone looking for a dependable source of power. Whether you need it for emergency backup power or continuous use, this generator is sure to meet your needs.
Features:
- Product Name: Silent Power Generators
- Frequency: 60Hz
- Alternator: Brushless Type AC Alternator
- Engine Model: JX ISUZU JE493ZLDC-01
- Rate Genset Power: 63kVA / 50kW
- Equipment Options:
- ATS
- Water Heater
- Remote Control
Introducing our 60Hz Silent Generator, also known as our Silent Diesel Generator, powered by an engine model JX ISUZU JE493ZLDC-01 and a brushless type AC alternator. This 1800rpm Diesel Generator has a rate genset power of 63kVA / 50kW and comes with equipment options including ATS, water heater, and remote control.
Technical Parameters:
| 63kVA JX Isuzu Diesel Genset Details | |||
| Diesel Genset | Type | Silent & Soundproof | |
| Model | TG69JISD6 | ||
| Frequency | 60Hz | ||
| Speed | 1800rpm | ||
| Voltage | 240V | ||
| Phase | Three Phase | ||
| Prime Power | 63kVA / 50kW | ||
| Standby Power | 69kVA / 55kW | ||
| Rate Current | 151.6A | ||
| Breaker | Delixi / CHNT / ABB | ||
| Dimensions | L2500 x W1100 x H1450mm | ||
| Weight | 1500kgs | ||
| Fuel Capacity | 130L | ||
| General Features | |||
| Engine | JX ISUZU | Radiator | 50degrees max, fans driven by belt with safety guard |
| Alternator | Tecgen | Charger | 24V trickle charger |
| Controller | DEIF SGC-420 | Governor | Mechanical or electronic |
| Circuit Breaker | DELIXI / CHNT / ABB | Canopy | Soundproof made by galvanized steel plate |
| ATS | AISIKAI/ABB | Filters | Dry type air filter, fuel filter, oil filter |
| Fuel Tank | 8hours / 12hours / 24hours, or as required | Absorber | High strength rubber |
| Start System | 12/24V electric start | Muffler | Ripple flex exhaust pipe, exhaust siphon, flange |
| Battery | Varta Maintenance free type | Manuals | Complete with engine, alternator and genset |
| JX ISUZU Diesel Engine Technical Data | |||
| Brand | JX ISUZU | ||
| Engine Model | JE493ZLDC-01 | ||
| Rated Power | 60kW | ||
| Cylinder | 4 Cylinder | ||
| Bore*Stroke | 93*105mm | ||
| Displacement | 2.85L | ||
| Aspiration | Turbo & Intercooled | ||
| Speed | 1800rpm | ||
| Cooling System | Water Cooled | ||
| Fuel Consumption at 100% Load | 13.1L | ||
| Speed Governor | MECH | ||
| Start System | 12/24V Electric Starter | ||
| Option Engine Brands | |||
| Cummins, Deutz, Weifang Ricardo, Perkins, Yangdong, Quanchai, FAWDE, SDEC, Weichai, Yuchai, VMAN, JX ISUZU, YANMAR, Beinei Aircooled, Caterpillar, MITSUBISHI., ETC | |||
| AC Alternator Technical Data | |||
| Brand | Tecgen | ||
| Alternator Model | TGI224S50 | ||
| Rate Power | 63kVA | ||
| Speed | 1800rpm | ||
| Frequency | 60Hz | ||
| Phase | Three Phase, Four Wire | ||
| Power Factor | 0.8 | ||
| Exciter type | Single bearing, brushless, Self-excited | ||
| Voltage adjust range | ≥5% | ||
| Insulation Grade | H | ||
| Protection Grade | IP23 | ||
| Option Alternator Brands | |||
| Stamford, Leory Somer, Meccalte, Marathon, Tecgen | |||
| Controller System | |||
| Brand | DEIF | ||
| Model | SGC-420 | ||
| Functions | Control with AMF module | ||
| Static with auto. battery charger | |||
| Emergency stop push button | |||
| ATS Connection & RS485 & CANbus & PLS & BTS Functions | |||
| Alarms | Over and Under Speed | ||
| Low and High Battery Voltage | |||
| Start and Stop Failure | |||
| Charge Fail | |||
| Over Current | |||
| Under / Over Generator Voltage | |||
| Low Oil Pressure | |||
| Emergency Stop | |||
| High Engine Temperature | |||
| Over Load | |||
| OPTIONAL EQUIPMENTS | |||
| Daily Fuel Tank | Parallel Panel | Remote Control Panel | Soundproof Type |
| Engine Heater | Permanent Magnet | Auto. Transfer Switch | Trailer Type |
| Water Heater | Generator (PMG) | Switch Box | Spare Parts |
Isuzu Generator Set, 60Hz Silent Generator, 1800rpm Diesel Generator
Applications:
With a minimum order quantity of 1 set, the price of this 1800rpm Diesel Generator is negotiable, and it comes in two packaging options: Foam and PE film package or Plywood case. The generator's delivery time is estimated at 15-30 working days from the date of purchase, and payment can be made via T/T or L/C.
The Silent Power Generator TGJISD6 has a rate genset power of 63kVA / 50kW, making it suitable for both industrial and commercial applications. The engine model - JX ISUZU JE493ZLDC-01 - is a powerful and reliable engine that guarantees the generator's optimal performance.
This Silent Diesel Generator operates on a 3 Phase / 4 Wire output type, with a frequency of 60Hz, making it suitable for use in a wide range of scenarios. Its silent operation makes it ideal for use in residential areas, hospitals, and other noise-sensitive environments.
With a supply ability of 300 units per month, the TG69JISD6 model is readily available to meet your power needs. Its continuous use feature ensures that you have a reliable backup power source in case of power outages or other emergencies.
Overall, the Silent Power Generator TG69JISD6 is a reliable, high-quality, and versatile power generator that can be used in various applications and scenarios. Its compliance with international standards, coupled with its powerful engine and silent operation, makes it an excellent investment for anyone seeking a dependable power source.
FAQ:
Q: What is the brand name of this generator?
A: The brand name of this generator is Tecgen Power.
Q: What is the model number of this generator?
A: The model number of this generator is TG69JISD6.
Q: Where is this generator manufactured?
A: This generator is manufactured in NINGDE, CHINA.
Q: What certifications does this generator have?
A: This generator has ISO, CE, SASO, CIQ, and COC certifications.
Q: What is the minimum order quantity for this generator?
A: The minimum order quantity for this generator is 1 set.
Q: What is the price of this generator?
A: The price of this generator is negotiable. Please contact us for more information.
Q: How is this generator packaged for shipping?
A: This generator is packaged with foam and PE film or a plywood case.
Q: What is the delivery time for this generator?
A: The delivery time for this generator is 15-30 working days.
Q: What are the payment terms for this generator?
A: The payment terms for this generator are T/T or L/C.
Q: What is the supply ability for this generator?
A: The supply ability for this generator is 300 units per month.
