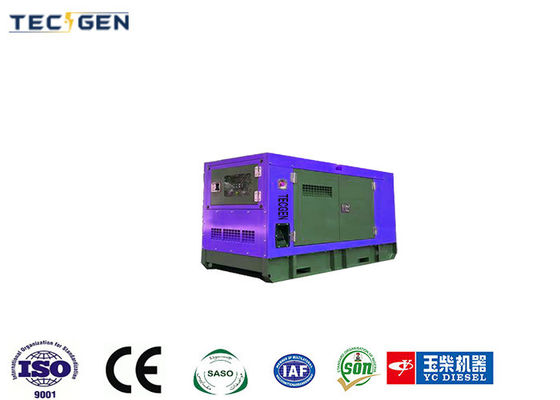

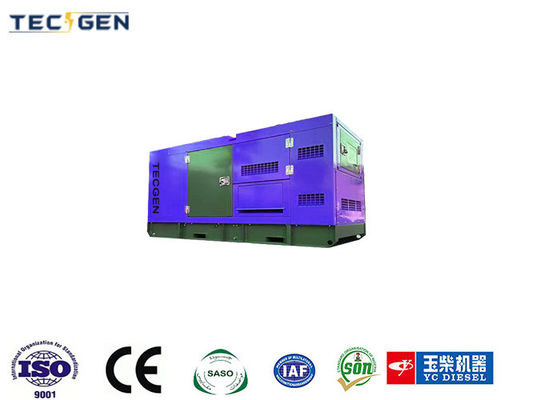

110kVA Yuchai Genset Silent Diesel Generator With Brushless Type Alternator For Continuous Use
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG110YCSD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 15 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent | Voltage | 220V |
|---|---|---|---|
| Frequency | 60Hz | Current | 262.4A |
| Engine Model | YC6B160Z-D20 | Alternator Model | TGI274S80 |
| Controller | DEIF SGC-420 | Standby Power | 110kVA / 88kW |
| Highlight | 110kVA yuchai genset,Continuous Use Silent yuchai genset,Brushless Type Alternator yuchai generator |
||
Product Description
110kVA Yuchai genset silent diesel generator with brushless type alternator for continuous use
Product Description: 110kVA Yuchai Silent Diesel Generator - Powerful, Reliable, and Ultra-Quiet
Standard Features:
Introducing the TG110YCSD6, our flagship 110kVA Yuchai Silent Diesel Generator, designed to meet the highest standards of power generation. Equipped with a powerful Yuchai YC6B160Z-D20 diesel engine, this generator boasts a prime power output of 100kVA/80kW and a standby power of 110kVA/88kW, ensuring uninterrupted power supply for your critical applications. Its 6-cylinder, turbocharged, and intercooled engine operates smoothly at 1800rpm, delivering exceptional fuel efficiency with a consumption rate of just 22L per hour at full load.
Key Features:
- Ultra-Silent Operation: Engineered for soundproofing, the TG110YCSD6 incorporates a galvanized steel canopy, ripple flex exhaust pipe, and silencer, achieving exceptional noise reduction levels, ideal for noise-sensitive environments.
- Durability & Efficiency: The Yuchai engine, coupled with a water-cooled cooling system, ensures long-lasting performance and optimal heat dissipation. Its electric speed governor maintains stable engine speeds, enhancing overall efficiency.
- Advanced Controller System: Equipped with the DEIF SGC-420 controller, this generator offers comprehensive monitoring and protection features, including automatic mains failure (AMF) module, emergency stop, and alarm systems for various faults, ensuring safe and reliable operation.
- Flexible Power Output: Capable of delivering both three-phase and four-wire electricity, the Tecgen TGI274S80 alternator offers a voltage adjustment range of ≥5%, accommodating various power requirements.
- Easy Maintenance & Accessibility: The generator is equipped with easy-access fuel, oil, and air filters, along with a maintenance-free Varta battery, simplifying routine maintenance and reducing downtime.
110kVA Yuchai Genset Specifications:
| 110kVA Yuchai Genset Details | |||
| Diesel Genset | Type | Silent & Soundproof | |
| Model | TG110YCSD6 | ||
| Frequency | 60Hz | ||
| Speed | 1800rpm | ||
| Voltage | 220V | ||
| Phase | Three Phase | ||
| Prime Power | 100kVA / 80kW | ||
| Standby Power | 110kVA / 88kW | ||
| Rate Current | 262.4A | ||
| Breaker | Delixi / CHNT / ABB | ||
| Dimensions | L2800 x W1150 x H1650mm | ||
| Weight | 1800kgs | ||
| Fuel Capacity | 170L | ||
| General Features | |||
| Engine | Yuchai | Radiator | 50degrees max, fans driven by belt with safety guard |
| Alternator | Tecgen | Charger | 24V trickle charger |
| Controller | DEIF SGC-420 | Governor | Mechanical or electronic |
| Circuit Breaker | DELIXI / CHNT / ABB | Canopy | Soundproof made by galvanized steel plate |
| ATS | AISIKAI/ABB | Filters | Dry type air filter, fuel filter, oil filter |
| Fuel Tank | 8hours / 12hours / 24hours, or as required | Absorber | High strength rubber |
| Start System | 12/24V electric start | Muffler | Ripple flex exhaust pipe, exhaust siphon, flange |
| Battery | Varta Maintenance free type | Manuals | Complete with engine, alternator and genset |
| Yuchai Diesel Engine Technical Data | |||
| Brand | Yuchai | ||
| Engine Model | YC6B160Z-D20 | ||
| Max Power | 118kW | ||
| Cylinder | 6 Cylinder | ||
| Bore*Stroke | 108*125mm | ||
| Displacement | 6.87L | ||
| Aspiration | Turbo & Intercooled | ||
| Speed | 1800rpm | ||
| Cooling System | Water Cooled | ||
| Fuel Consumption at 100% Load | 22L | ||
| Speed Governor | Electric | ||
| Start System | 12/24V Electric Starter | ||
| Option Engine Brands | |||
| Cummins, Deutz, Weifang Ricardo, Perkins, Yangdong, Quanchai, FAWDE, SDEC, Weichai, Yuchai, VMAN, JX ISUZU, YANMAR, Beinei Aircooled, Caterpillar, MITSUBISHI., ETC | |||
| AC Alternator Technical Data | |||
| Brand | Tecgen | ||
| Alternator Model | TGI274S80 | ||
| Max Power | 110kVA | ||
| Speed | 1800rpm | ||
| Frequency | 60Hz | ||
| Phase | Three Phase, Four Wire | ||
| Power Factor | 0.8 | ||
| Exciter type | Single bearing, brushless, Self-excited | ||
| Voltage adjust range | ≥5% | ||
| Insulation Grade | H | ||
| Protection Grade | IP23 | ||
| Option Alternator Brands | |||
| Stamford, Leory Somer, Meccalte, Marathon, Tecgen | |||
| Controller System | |||
| Brand | DEIF | ||
| Model | SGC-420 | ||
| Functions | Control with AMF module | ||
| Static with auto. battery charger | |||
| Emergency stop push button | |||
| ATS Connection & RS485 & CANbus & PLS & BTS Functions | |||
| Alarms | Over and Under Speed | ||
| Low and High Battery Voltage | |||
| Start and Stop Failure | |||
| Charge Fail | |||
| Over Current | |||
| Under / Over Generator Voltage | |||
| Low Oil Pressure | |||
| Emergency Stop | |||
| High Engine Temperature | |||
| Over Load | |||
| OPTIONAL EQUIPMENTS | |||
| Daily Fuel Tank | Parallel Panel | Remote Control Panel | Soundproof Type |
| Engine Heater | Permanent Magnet | Auto. Transfer Switch | Trailer Type |
| Water Heater | Generator (PMG) | Switch Box | Spare Parts |
Usage:
Ideal for a wide range of applications, including but not limited to hospitals, data centers, construction sites, telecommunication towers, and emergency backup power systems. The 110kVA Yuchai Silent Diesel Generator ensures a reliable power supply during power outages or as a primary power source in remote locations.
Advantages:
- Quiet Operation: Perfect for noise-restricted areas, ensuring minimal disruption to the surroundings.
- Versatile Power Solution: Suitable for both prime and standby power applications, offering flexibility in power management.
- High-Efficiency Engine: Turbocharged and intercooled, maximizing fuel efficiency and reducing operating costs.
- Comprehensive Monitoring: Advanced controller system with AMF and alarm functions for enhanced safety and reliability.
- Durability & Longevity: Built with premium components and rigorous testing, ensuring a long service life.
Options:
- Choose from various breaker brands including Delixi, CHNT, or ABB.
- Opt for an automatic transfer switch (ATS) from AISIKAI or ABB for seamless power transfer.
- Enhance portability with a trailer-mounted configuration.
- Upgrade to permanent magnet or generator (PMG) systems for specific applications.
- Add daily fuel tanks, remote control panels, or engine heaters for increased convenience and flexibility.
FAQs:
Q: What is the maximum fuel capacity of the 110kVA Yuchai Genset?
A: The fuel tank has a capacity of 170L, providing up to 12 hours of runtime at full load, depending on the load demand.
Q: Is the generator suitable for prime power applications?
A: Yes, the TG110YCSD6 is designed for both prime and standby power applications, with a prime power rating of 100kVA/80kW.
Q: Can the generator be customized with different alternator brands?
A: Absolutely, we offer a range of alternator brands, including Stamford, Leory Somer, Meccalte, Marathon, and Tecgen, to suit your specific needs.
Experience the ultimate in silent diesel generator technology with the 110kVA Yuchai Silent Diesel Generator. Order now and enjoy uninterrupted, reliable power, backed by our exceptional customer support and warranty.
