Mobile Generator Trailer Type Cummins Diesel Genset 40kW / 50kVA With 2/4 Wheels
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG55CSTD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 20 - 35 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Mobile Generator Trailer Type | Wheel | Two Wheels / Four Wheels |
|---|---|---|---|
| Frequency | 50Hz / 60Hz | Brand | Cummins |
| Model | 4BT3.9-G2 | Prime Power | 40kW / 50kVA |
| Standby Power | 44kW / 55kVA | Color | White Or Customed |
| Highlight | 40kW Cummins diesel genset,50kVA Cummins diesel genset,Mobile Trailer cummins diesel generator |
||
Product Description

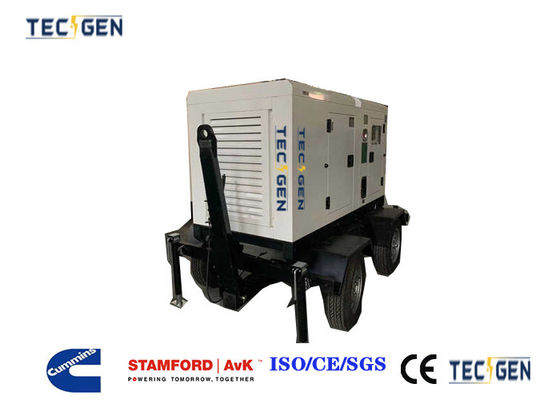

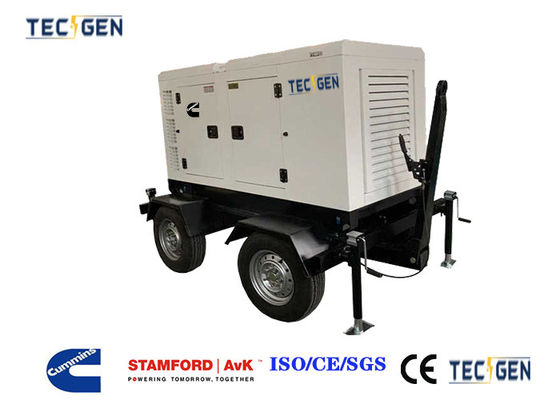

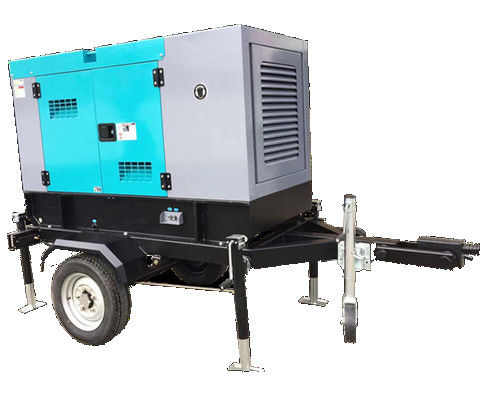

Mobile generator trailer type Cummins diesel genset 40kW / 50kVA with 2/4 wheels
Standard Features:
Introducing our flagship Mobile Generator Trailer Type, powered by a reliable Cummins Diesel Genset (4BT3.9-G2 model), designed for maximum versatility and unparalleled performance. Equipped with a 40kW prime power output and 44kW standby power, this generator trailer ensures uninterrupted power supply for a wide range of applications. The 1800rpm engine speed, coupled with a turbocharged 3.9L displacement, delivers efficient fuel consumption at just 214g/kWh, making it a cost-effective choice for long-term use.
Key Features:
- Powerful Cummins Engine: The heart of this generator is a robust DCEC Cummins diesel engine, renowned for its durability and high torque output.
- Silent Operation: Engineered for silent operation, the generator trailer minimizes noise pollution, making it ideal for noise-sensitive environments.
- Multi-Voltage Compatibility: With a versatile voltage range of 480V/440V/240V/230V/220V/110V, it seamlessly adapts to various electrical requirements.
- Intelligent Control System: Equipped with a DEIF SGC-420 controller, featuring auto mains failure detection, emergency stop, and ATS/RS485 connectivity, ensuring seamless operation and remote monitoring.
- Rugged Construction: Built to withstand tough conditions, the trailer's sturdy design and 1700kg weight ensure stability and durability during transportation.
Mobile Generator Trailer Type Specifications:
| Mobile Generator Trailer Type Technical Datasheets | ||||||
| Genset model | TG55CSTD6 | |||||
| Genset Type | Silent & Trailer Type | |||||
| Rate Voltage | 480V//440V/240V/230V/220V/110V | |||||
| Frequency | 60Hz | |||||
| Speed | 1800rpm | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 69.6A | |||||
| Prime Power | 40kW / 50kVA | |||||
| Standby Power | 44kW / 55kVA | |||||
| Engine | Brand | DCEC Cummins | ||||
| Model | 4BT3.9-G2 | |||||
| Alternator | Brand | Copy Stamford | ||||
| Model | TGI224S40 | |||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Genset Weight | 1700kgs | |||||
| Genset Dimensions | L3050 * W 1600 * 1800 | |||||
| DCEC Cummins Diesel Engine Data | ||||||
| Brand | Dongfeng Cummins Engine Co., Ltd | |||||
| Engine Model | 4BT3.9-G2 | |||||
| Number of Cylinders | 4 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Turbocharged | |||||
| Displacement | 3.9L | |||||
| Compression ratio | 18:1 | |||||
| Bore×Stroke | 102*120mm | |||||
| Speed | 1800rpm | |||||
| Prime Power | 40kW | |||||
| Standby Power | 44kW | |||||
| Speed Governor | MECH or Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 214g/kwh@1800rpm | |||||
| Copy Stamford Alternator Data | ||||||
| Brand | Copy Stamford | |||||
| Model | TGI224S40 | |||||
| Frequency/speed | 60HZ/1800RPM | |||||
| Rate Output | 40kW | |||||
| No. of Phase | 3 Phase, 4 Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| DEIF Controller System | ||||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Function | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent | ||
| 10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay | |||
| 16kW ~ 600kW | Deutz | Marathon | DEIF | |||
| 7kW ~ 64kW | Yangdong |
Tecgen
|
||||
| 7kW ~ 76kW | Quanchai | |||||
| 18kW ~ 3000kW | Weichai | |||||
| 8kW ~ 800kW | SDEC | |||||
| 12kW ~ 320kW | FAWDE | |||||
| 18kW ~ 1200kW | Yuchai | |||||
| 11kW ~ 104kW | Beinei Aircooled | |||||
| 7kW ~ 1800kW | Perkins | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage:
Perfect for a multitude of applications, including construction sites, emergency services, outdoor events, mining operations, and as a primary or backup power source for remote locations. Its trailer-mounted design ensures easy mobility and rapid deployment.
Advantages:
- Portable & Versatile: The trailer-type design allows for hassle-free transportation and setup, making it an ideal solution for on-the-go power needs.
- Reliable Power Output: The Cummins diesel engine guarantees consistent and reliable power output, even under heavy loads.
- Fuel-Efficient: Advanced engine technology minimizes fuel consumption, reducing operational costs.
- Low Maintenance: High-quality components and robust construction ensure minimal downtime and long-lasting performance.
Options:
Choose from a range of options to customize your Mobile Generator Trailer Type, including different AC alternator brands (e.g., Stamford, Tecgen), controller systems (DEIF, Mebay), and additional features such as extended fuel tanks and custom voltage configurations.
FAQs:
Q: What is the maximum power output of this generator?
A: The generator has a prime power output of 40kW and a standby power of 44kW.
Q: How fuel-efficient is the Cummins diesel engine?
A: The engine consumes just 214g/kWh at full load, making it a highly efficient choice.
Q: Is the generator trailer easy to move?
A: Yes, the trailer-mounted design allows for convenient transportation and quick setup.
Q: Can I customize the generator to my specific requirements?
A: Absolutely, we offer various customization options to suit your unique power needs and preferences.
With its powerful Cummins Diesel Genset, silent operation, and versatility, our Mobile Generator Trailer Type is the ultimate solution for all your portable power requirements. Contact us today to learn more and customize your generator to fit your specific needs.
