Compact Silent 10kVA Generator Silent Power Generators With Yanmar 3TNV88-GGE 3 Cylinder Engine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Compact Silent | Brand | Yanmar |
|---|---|---|---|
| Model | 3TNV88-GGE | Prime Power | 8kW / 10kVA |
| Standby Power | 9kW / 11kVA | Phase | 3 |
| Engine Manufacture | Aoling | HS Code | 8502110000 |
| Highlight | Compact silent power generators,10kVA silent power generators,Yanmar 3TNV88-GGE silent power generators |
||
Product Description

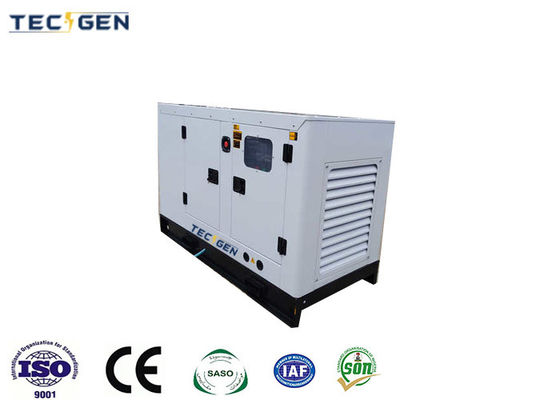

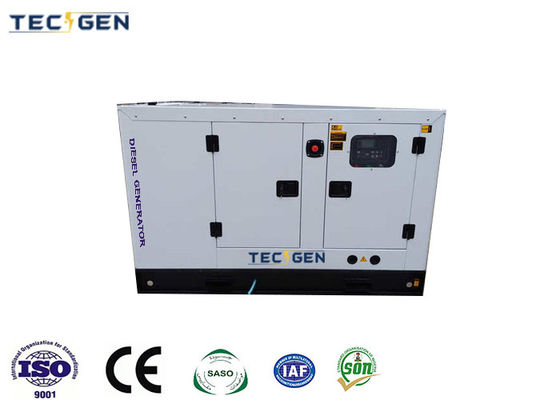

Compact silent 10kVA generator silent power generators with Yanmar 3TNV88-GGE 3 cylinder engine
Standard Features:
Introducing the TG11AYS, our flagship Compact Silent 10kVA Generator, designed for seamless power backup in both residential and commercial settings. Equipped with an Aoling Yanmar 3TNV88-GGE engine, this generator boasts a prime power output of 8kW/10kVA and a standby capacity of 9kW/11kVA, ensuring reliable power supply during unexpected outages. The generator operates at a standard frequency of 50Hz, delivering a stable 415/240V three-phase voltage, perfect for powering essential appliances and equipment.
Key Features:
- Ultra-Silent Operation: The TG11AYS stands out with its whisper-quiet operation, making it ideal for noise-sensitive environments. Its advanced sound-dampening technology ensures minimal noise levels, allowing you to enjoy uninterrupted power without disturbing the peace.
- Compact Design: With dimensions of just 1000mm x 600mm x 800mm and a weight of 400kg, this generator is easy to transport and install, making it a space-saving solution for tight spaces.
- Efficient Engine: Powered by the reliable Aoling Yanmar 3TNV88-GGE engine, the generator delivers exceptional fuel efficiency, with fuel consumption as low as 0.8L/h at 25% load.
- Advanced Control System: Equipped with the Mebay DC52D controller, the generator features automatic voltage regulation, ensuring a steady state voltage within 1% of the rated output. It also includes an AMF module for seamless automatic transfer switching and an emergency stop push button for added safety.
- IP23 Enclosure: The Tecgen TGI164S8 alternator is housed in an IP23-rated enclosure, protecting it from dust and splashing water, ensuring long-term durability and reliability.
Compact Silent 10kVA Generator Datasheets:
| Technical Specification: | |
| Compact Silent 10kVA Generator Specification | |
| Genset Model | TG11AYS |
| Silent Type | |
| Frequency | 50Hz |
| Voltage | 415/240V |
| Phase | 3 |
| Rate Current | 14.4A |
| Prime Power | 8kW / 10kVA |
| Standby Power | 9kW / 11kVA |
| Engine Model | Aoling Yanmar 3TNV88-GGE |
| Alternator Model | TGI164S8 |
| Controller | Mebay DC52D |
| Weight & Dimensions | |
| Length (mm) | 1000 |
| Width (mm) | 600 |
| Height (mm) | 800 |
| Weight (kgs) | 400 |
| Engine Specification | |
| Brand | Aoling Yanmar |
| Engine Model | 3TNV88-GGE |
| Prime power (kw) | 14 |
| Injection | Indirect |
| Aspiration | Naturally Aspirated |
| No. of cylinders | 3 |
| Bore of Stroke (mm) | 88 x 90 |
| Displacement (L) | 1.88 |
| Cooling | Water Cooled |
| Compression Ratio | 17.5:1 |
| Governor | Mech |
| Air Filter | Dry Element |
| Fuel consumption | @ 50Hz |
| 100% Load (L/h) | 3.1 |
| 75% Load (L/h) | 2.4 |
| 50% Load (L/h) | 1.6 |
| 25% Load (L/h) | 0.8 |
| Alternator Specification | |
| Brand | Tecgen |
| Model | TGI164S8 |
| Rate Output | 8kW |
| Pole | 4 |
| Winding Connections | Star |
| Insulation Class | H |
| Enclosure | IP23 |
| Altitude (m) | ≤1000 |
| Voltage Regulator | AVR |
| Steady State Voltage Regulator | 1% |
| Bearing | Single |
| Controller System | |
| Brand | Mebay |
| Model | DC52D |
| Functions | Control with AMF module |
| Static with auto. battery charger | |
| Emergency stop push button | |
| ATS Connection | |
| OPTIONAL EQUIPMENTS | |
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Fuel-water separator, Silent Type, Super Silent Type, Trailer & Silent Type, 3000Hours Spare Parts | |
Usage:
The Compact Silent 10kVA Generator - TG11AYS is perfect for a wide range of applications, including emergency power backup for homes, offices, hospitals, and small businesses. It can effortlessly power essential appliances such as refrigerators, air conditioners, computers, and lighting systems, ensuring continuity of operations during power outages.
Advantages:
- Silent Power Generators: Our generators are designed to minimize noise pollution, making them the perfect choice for noise-sensitive areas like residential neighborhoods and hospitals.
- Fuel Efficiency: With low fuel consumption rates, the TG11AYS helps reduce operating costs, making it a cost-effective power solution.
- Easy Maintenance: The dry element air filter and water-cooled engine ensure hassle-free maintenance, while the availability of 3000-hour spare parts as an optional accessory further simplifies maintenance procedures.
- Versatile Connectivity: With ATS connection capabilities, the generator can seamlessly integrate with your existing power system, providing automatic power transfer during outages.
Options:
- ATS Box: For automatic transfer switching between grid and generator power.
- Switch Box: Provides manual control over generator operations.
- Remote Control: Enables remote monitoring and control of generator functions.
- Daily Fuel Tank: Ensures continuous operation without frequent refueling.
- Engine Heater: Protects the engine from cold starts in cold climates.
- Fuel-Water Separator: Improves fuel quality and extends engine life.
- Super Silent Type: For even lower noise levels, ideal for ultra-quiet environments.
- Trailer & Silent Type: For easy transportation and silent operation.
FAQs:
Q: How loud is the TG11AYS generator?
A: The TG11AYS is designed for ultra-silent operation, making it significantly quieter than conventional generators.
Q: What is the maximum altitude this generator can operate at?
A: The generator can operate at altitudes up to 1000 meters without any derating.
Q: Does the generator come with an automatic transfer switch?
A: The ATS Box is available as an optional accessory. The standard model does not include an ATS but can be easily integrated with one.
Experience the power of silence with the Compact Silent 10kVA Generator - TG11AYS. Ideal for both residential and commercial applications, this generator delivers reliable, efficient, and quiet power when you need it most.
