Silent 72kW Power Generators FAWDE Genset With Stamford Design Alternator For Africa Power
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG99FWS |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | FAWDE GENERATOR | Type | Silent & Soundproof |
|---|---|---|---|
| Frequency | 50HZ | Speed | 1500rpm |
| Noisy Level | 70db(A) At 7m | Engine Model | CA4DF2-12D-YFD10W2 |
| Alternator Model | TGI274S72 | Controller | DEIF SGC420 |
| Highlight | Stamford design alternator power generators,FAWDE genset power generators,Silent 72kW power generators |
||
Product Description

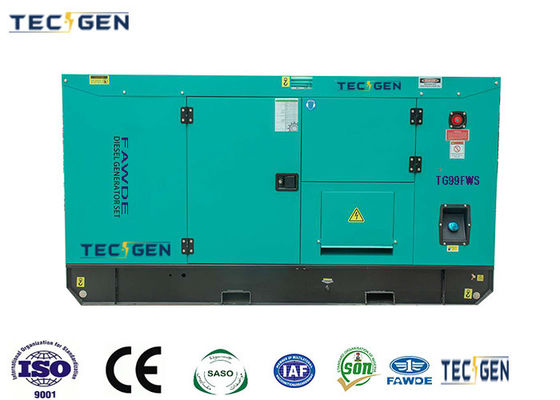

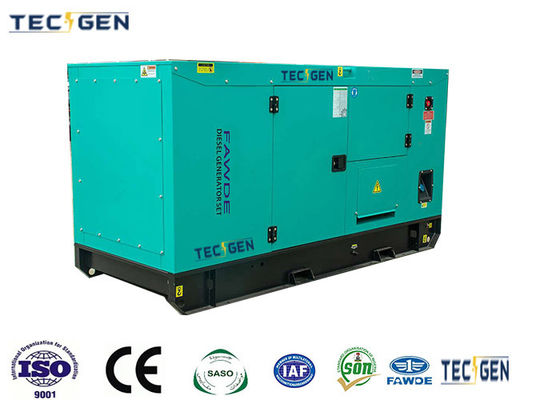

Silent 72kW power generators FAWDE genset with Stamford design alternator for Africa power
Product Description: Silent 72kW Power Generators by FAWDE Genset
Experience unparalleled power and tranquility with our Silent 72kW Power Generators from FAWDE Genset. Engineered for performance and designed for silent operation, these generators are the ideal solution for a wide range of applications where reliability and low noise levels are paramount.
Standard Features:
Our Silent 72kW Power Generators come equipped with a DEUTZ JIEFANG CA4DF2-12D-YFD10W engine, renowned for its durability and efficiency. Coupled with a Tecgen TGI274S72 alternator, these generators deliver a rated output of 90kVA / 72kW and a standby output of 99kVA / 79kW, ensuring you have ample power to keep your operations running smoothly. The forced water cooling system ensures optimal engine performance, while the electric speed governor maintains a consistent 1500 RPM for reliable power delivery.
Key Features:
- Ultra-Silent Operation: At just 70dB(A) at 7 meters, our generators are perfect for noise-sensitive environments like hospitals, residential areas, and outdoor events.
- Powerful Engine: The DEUTZ JIEFANG engine, with its turbocharged and intercooled design, provides ample power and torque for even the most demanding applications.
- High-Quality Alternator: The Tecgen alternator features a brushless self-excited control system, ensuring clean and stable power output with minimal maintenance requirements.
- Intelligent Control: The DEIF SGC-420 controller panel allows for easy monitoring and control of the generator's vital functions, including voltage regulation, frequency stability, and fault diagnosis.
Silent 72kW Power Generators Datasheets:
| Silent 72kW Power Generators Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG99FWS | CA4DF2-12D-YFD10W2 | TGI274S72 | DEIF SGC-420 | 72kW | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of Silent 72kW Power Generators | |||||
| Engine Model | CA4DF2-12D-YFD10W | ||||
| Alternator Mode | TGI274S72 | ||||
| Rated Output | 90kVA / 72kW | ||||
| Standby Output | 99kVA / 79kW | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 240 / 415V | ||||
| Rated Current | 125.2A | ||||
| Breaker | 160A Aisikai Breaker | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 70dB(A) | ||||
| Net Weight | 1950KGS | ||||
| Genset size | L2700 * W1400 * H1600mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for Silent 72kW Power Generators | |||||
| Manufacture | DEUTZ JIEFANG | ||||
| Model | CA4DF2-12D-YFD10W | ||||
| Rated Output/Speed | 84KW/1500RPM | ||||
| Standby Output/Speed | 92KW/1500RPM | ||||
| Aspiration | Turbocharged & Intercooled | ||||
| Speed Governor | Electric | ||||
| Engine Type | 4 cylinders in line | ||||
| Bore X Stroke | 110*125mm | ||||
| Displacement | 4.75 L | ||||
| Compression ratio | 17:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 19.7 L / h | ||||
| Fuel Consumption/standby output | 21.6 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for Silent 72kW Power Generators | |||||
| Alternator Model | TGI274S72 | ||||
| Manufacture | Tecgen | ||||
| Rate Output | 72kW | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of Silent 72kW Power Generators | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Usage:
The Silent 72kW Power Generators by FAWDE Genset are ideal for use in emergency backup power systems, construction sites, industrial facilities, agricultural operations, and more. With their robust design and reliable performance, they can withstand harsh conditions and ensure uninterrupted power supply during power outages or planned downtime.
Advantages:
- Efficiency: The low fuel consumption of the engine, at just 19.7L/h at rated output and 21.6L/h at standby output, translates into significant cost savings over time.
- Portability: With a compact design and net weight of 1950KGS, these generators are easy to transport and install, making them an excellent choice for mobile applications.
- Versatility: Available with optional features such as an integrated fuel tank, water heater, ATS, PMG generator, and 12/24-hour fuel tank, these generators can be customized to suit your specific needs.
Optional Features:
- Integrated Fuel Tank: Provides extended runtime without the need for external fuel supply.
- Water Heater: Keeps engine coolant at optimal temperature, enhancing overall performance and reliability.
- ATS (Automatic Transfer Switch): Ensures seamless transition between utility power and generator power during power outages.
- PMG Generator: Improves voltage and frequency stability, making the generator suitable for sensitive electronic loads.
FAQs:
Q: How does the Silent 72kW Power Generator ensure low noise levels?
A: The generator is housed in a soundproof enclosure equipped with advanced silencing materials, which significantly reduce noise emissions.
Q: What is the warranty period for the product?
A: Our Silent 72kW Power Generators come with a standard warranty period, but please contact us for specific details as it may vary depending on the region and terms of purchase.
Q: Can I customize the generator to suit my specific requirements?
A: Yes, we offer a range of optional features that can be integrated into the generator to suit your unique needs. Contact us for more information on customization options.
Experience the ultimate in silent power generation with our Silent 72kW Power Generators by FAWDE Genset. Contact us today to learn more about our products and how they can help power your operations with reliability and efficiency.
