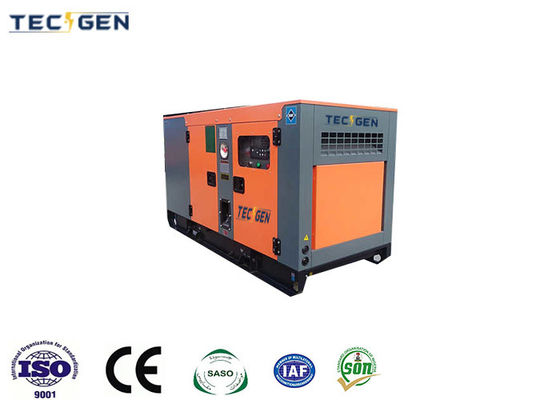

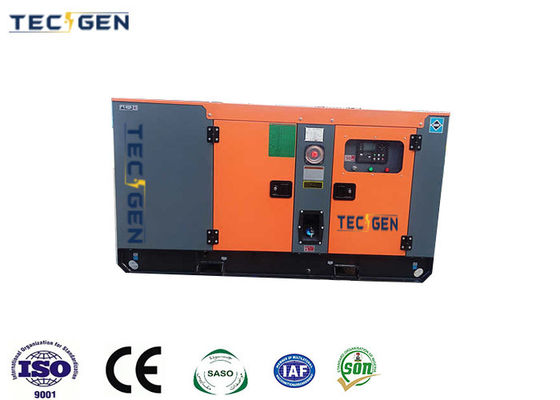

Soundproof 14kVA Power Generator Yanmar Genset With Leroy Somer Alternator For Continuous Use
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG14AYS |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 15 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Soundproof | Speed | 1500rpm |
|---|---|---|---|
| Engine Brand | Yanmar | Engine Model | 3TNV88-GGE |
| Alternator Brand | Stamford, Tecgen, Leroy Somer, Meccalte | Genset Prime Power | 10kW / 13kVA |
| Max Power | 11kW / 14kVA | Output Type | Single Phase Or Three Phase |
| Highlight | 14kVA Soundproof Power Generator,Yanmar Soundproof Power Generator,Leroy Somer Soundproof Power Generator |
||
Product Description
Soundproof 14kVA power generator Yanmar genset with Leroy Somer alternator for continuous use
Experience unparalleled power generation with the Yanmar Genset's Soundproof 14kVA Power Generator, designed to meet your every energy need while ensuring minimal disruption to your surroundings. This robust and efficient machine is the perfect solution for a wide range of applications, combining exceptional performance with unbeatable sound reduction capabilities.
Standard Features:
- Powerful Engine: Equipped with the reliable 3TNV88-GGE engine from Yanmar, renowned for its durability and fuel efficiency, delivering a rated output of 10kW / 13kVA and a maximum output of 11kW / 14kVA.
- High-Quality Alternator: The TAL-A40-C alternator from Leroy Somer ensures stable power output with a voltage regulation rate of ≤±1%, ensuring a smooth and consistent power supply.
- Intelligent Controller: The HGM6110N controller panel provides advanced monitoring and protection functions, ensuring seamless operation and easy troubleshooting.
- Noise Reduction Technology: Our soundproof design ensures a low noise level of just 70dB(A) at 7 meters, making it ideal for use in noise-sensitive environments.
Key Features:
- Efficient Cooling System: Featuring forced water cooling, the engine maintains optimal operating temperatures, prolonging its lifespan and enhancing overall performance.
- Versatile Output: With a 3-phase, 4-wire connection, this generator can adapt to various power requirements, making it suitable for both residential and commercial applications.
- Long Runtime: Equipped with an 8-hour fuel tank, the Soundproof 14kVA Power Generator keeps the power flowing, even during extended outages.
- Easy Maintenance: Comes standard with dry-type air, fuel, and oil filters, as well as a 24V DC automatic battery charger, simplifying routine maintenance tasks.
Soundproof 14kVA Power Generator Datasheet:
| Soundproof 14kVA Power Generator Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG14AYS | 3TNV88-GGE | TAL-A40-C | HGM6110N | 14kVA | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of Soundproof 14kVA Yanmar Generator | |||||
| Genset Type | Soundproof | ||||
| Engine Model | 3TNV88-GGE | ||||
| Alternator Mode | TAL-A40-C | ||||
| Rated Output | 10kW / 13kVA | ||||
| Max Output | 11kW / 14kVA | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 220 / 380V | ||||
| Rated Current | 19.0A | ||||
| Breaker | 63A Aisikai Breaker | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 70dB(A) | ||||
| Net Weight | 500KGS | ||||
| Genset size | L1300 * W600 * H900mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for Soundproof 14kVA Yanmar Generator | |||||
| Manufacture | Aoling Yanmar | ||||
| Model | 3TNV88-GGE | ||||
| Rated Output/Speed | 14KW/1500RPM | ||||
| Standby Output/Speed | 16KW/1500RPM | ||||
| Aspiration | Naturally aspirated | ||||
| Speed Governor | MECH or Electric | ||||
| Engine Type | 3 cylinders in line | ||||
| Bore X Stroke | 88*90mm | ||||
| Displacement | 1.88 L | ||||
| Compression ratio | 17.5:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 3.1 L / h | ||||
| Fuel Consumption/standby output | 3.6 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for Soundproof 14kVA Yanmar Generator | |||||
| Alternator Model | TAL-A40-C | ||||
| Manufacture | Leroy Somer | ||||
| Rate Output | 10kW | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of Soundproof 14kVA Yanmar Generator | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | Smartgen HGM6110N | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Usage:
Ideal for emergency backup power, construction sites, outdoor events, and any other scenario where reliable and quiet power is a must. The Soundproof 14kVA Power Generator by Yanmar Genset is your go-to solution for hassle-free power generation.
Advantages:
- Unmatched Soundproofing: Our advanced soundproof design sets us apart from competitors, ensuring minimal noise pollution and maximum user comfort.
- Durability: Built with high-quality materials and components, this generator is designed to withstand the test of time, delivering reliable power for years to come.
- Fuel Efficiency: With low fuel consumption rates, the Yanmar Genset Soundproof 14kVA Power Generator helps you save on operating costs, making it a cost-effective solution for all your power needs.
- Comprehensive Options: Customize your generator with optional features such as an integrated fuel tank, water heater, ATS, PMG generator, and more, tailored to your specific requirements.
Options:
- Integrated Fuel Tank: For extended runtime and added convenience.
- Water Heater: Keeps the coolant at optimal temperatures, enhancing engine performance.
- ATS (Automatic Transfer Switch): Ensures seamless power transfer between the generator and the main power source.
- PMG Generator: Provides even more stable power output for sensitive electronic equipment.
- SYNC Function: Enables synchronization with multiple generators for larger power requirements.
- Extended Fuel Tank: Options for 12/24 hours of runtime, perfect for extended outages.
- Spare Parts Package: Includes a 3000-hour supply of essential spare parts for peace of mind.
FAQ:
Q: How loud is the Soundproof 14kVA Power Generator?
A: At just 70dB(A) at 7 meters, it's one of the quietest generators in its class, ideal for noise-sensitive environments.
Q: What is the fuel consumption rate?
A: The fuel consumption varies based on load, but at rated output, it consumes approximately 3.1L/h.
Q: Can I customize the generator with additional features?
A: Yes, we offer a range of optional features including an integrated fuel tank, water heater, ATS, and more, to suit your specific needs.
Experience the ultimate in power generation with the Yanmar Genset Soundproof 14kVA Power Generator. Order now and enjoy reliable, quiet power, tailored to your exact requirements.
