Soundproof 22kW Electric Generator Cummins Genset With Outdoor Use Weather Proof Canopy
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG30CS |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Silent Type | Voltage | 220/230/240/380/400/415V |
|---|---|---|---|
| Frequency | 50Hz | Engine Model | 4B3.9-G1 |
| Alternator Brand | Stamford, Tecgen, Leroy Somer, Meccalte | Color | Customed |
| Option | ATS, ABB Breaker, Deepsea, SYNC | Governor | MECH / ELECTRIC |
| Highlight | Cummins Electric Generator,22kW Electric Generator,Outdoor Use Electric Generator |
||
Product Description

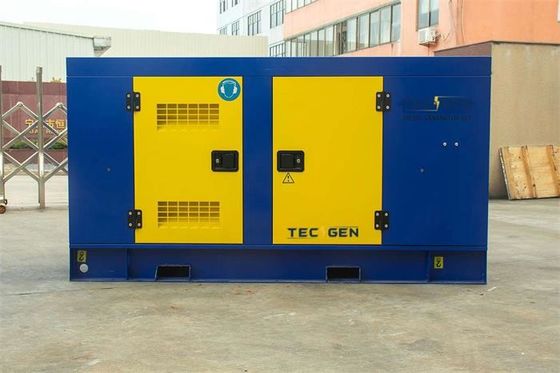

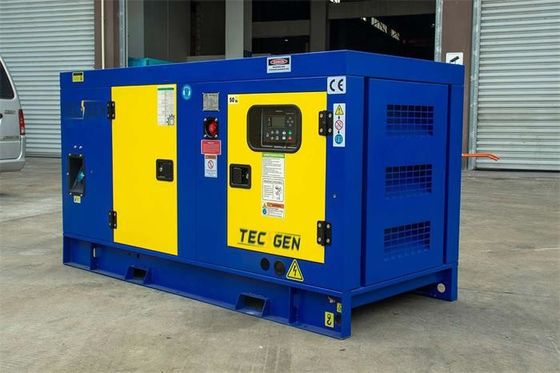

Soundproof 22kW Electric Generator Cummins genset with outdoor use weather proof canopy
Product Description: Soundproof 22kW Electric Generator with Cummins Genset
Standard Features:
Introducing our premium Soundproof 22kW Electric Generator, powered by the renowned Cummins Genset engine, model 4B3.9-G1. This generator is designed to deliver reliable and efficient power solutions for a wide range of applications. Equipped with a TAL-A42-C alternator from Leroy Somer, it boasts a rated output of 22kW/28kVA and a standby output of 24kW/30kVA, ensuring ample power for even the most demanding situations. The generator operates at a constant 1500 RPM, producing a stable 50Hz frequency and 230/400V voltage, perfect for powering sensitive equipment.
Key Features:
Soundproof Enclosure: Our generator features a soundproof enclosure that reduces noise levels to a mere 70dB(A) at 7 meters, making it ideal for residential, commercial, or industrial use where quiet operation is crucial.
Cummins Engine: Powered by a reliable Cummins 4B3.9-G1 engine, renowned for its durability and fuel efficiency, this generator delivers consistent performance and long service life.
Smart Control System: Equipped with the Smartgen HGM6110N controller, it offers advanced monitoring and protection functions, ensuring safe and hassle-free operation.
Versatile Output: With a 3-phase, 4-wire connection, it supports a wide range of electrical loads, making it suitable for various applications.
Easy Maintenance: Comes with a dry-type air filter, fuel filter, and oil filter, facilitating quick and effortless maintenance.
Soundproof 22kW Electric Generator Datasheets:
| Soundproof 22kW Electric Generator Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG30CS | 4B3.9-G1 | TAL-A42-C | Smartgen HGM6110N | 22kW | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of Soundproof 22kW Electric Generator | |||||
| Engine Model | 4B3.9-G1 | ||||
| Alternator Mode | TAL-A42-C | ||||
| Rated Output | 22kW / 28kVA | ||||
| Standby Output | 24kW / 30kVA | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 230 / 400V | ||||
| Rated Current | 40.4A | ||||
| Breaker | 63A Aisikai Breaker | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 70dB(A) | ||||
| Net Weight | 850KGS | ||||
| Genset size | L2300 * W930 * H1200mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for Soundproof 22kW Electric Generator | |||||
| Manufacture | Dongfeng Cummins Engine Co., Ltd | ||||
| Model | 4B3.9-G1 | ||||
| Rated Output/Speed | 24KW/1500RPM | ||||
| Standby Output/Speed | 27KW/1500RPM | ||||
| Aspiration | Natural ASP | ||||
| Speed Governor | MECH | ||||
| Engine Type | 4 cylinders in line | ||||
| Bore X Stroke | 102*120mm | ||||
| Displacement | 3.9 L | ||||
| Compression ratio | 17.3:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 7.1 L / h | ||||
| Fuel Consumption/standby output | 8 L / h | ||||
| Starter motor | D.C. 12/24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for Soundproof 22kW Electric Generator | |||||
| Alternator Model | TAL-A42-C | ||||
| Manufacture | Leroy Somer | ||||
| Rate Output | 24kW | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of Soundproof 22kW Electric Generator | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | Smartgen HGM6110N | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 12/24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Usage:
The Soundproof 22kW Electric Generator with Cummins Genset is perfect for powering homes during power outages, remote worksites, construction sites, events, and emergency backup systems. Its compact design and low noise levels make it an ideal choice for noise-sensitive environments like hospitals, schools, and offices.
Advantages:
Quiet Operation: The soundproof enclosure ensures minimal disturbance, making it suitable for use in residential areas.
Fuel Efficiency: The Cummins engine is designed for optimal fuel consumption, reducing operational costs.
Durability: High-quality components and robust construction ensure long-lasting performance and reliability.
Versatility: Suitable for a wide range of applications, from powering essential appliances to supporting large-scale events.
Easy Installation & Maintenance: Comes with all necessary accessories and a user-friendly control panel for seamless setup and maintenance.
Optional Features:
Integrated Fuel Tank: Extend operating time without frequent refueling.
Water Heater: Keep your workspace warm during cold weather.
ATS (Automatic Transfer Switch): Automatically switches between generator and utility power for seamless power supply.
PMG Generator: Enhances voltage stability and reduces harmonic distortion.
SYNC Function: Enables parallel operation with other generators for increased power output.
Extended Fuel Tank: Options for 12/24 hours of continuous operation.
Spare Parts Kit: Includes essential components for 3000 hours of operation.
FAQs:
Q: How loud is the generator?
A: The generator operates at a noise level of 70dB(A) at 7 meters, making it one of the quietest in its class.
Q: What is the fuel consumption?
A: At rated output, the generator consumes approximately 7.1L/h, and 8L/h at standby output.
Q: Can I customize the generator?
A: Yes, we offer various optional features to tailor the generator to your specific needs.
Q: What is the warranty period?
A: Please refer to our warranty policy for detailed information on coverage and duration.
Experience the power and peace of mind that comes with our Soundproof 22kW Electric Generator featuring the trusted Cummins Genset. Order now and enjoy reliable, quiet, and efficient power solutions for all your needs.
