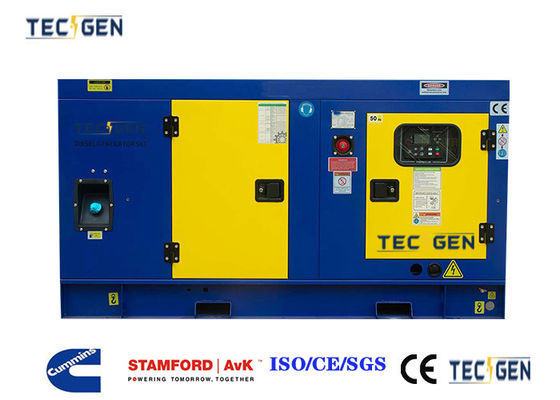

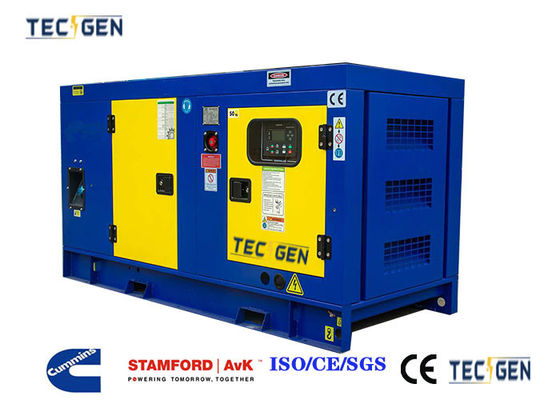

35kW Diesel Engine Genset Silent Cummins Generator With Super Silent Canopy For Bank Power Use
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG44CS |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Silent Type | Voltage | 220/230/240/380/400/415V |
|---|---|---|---|
| Frequency | 50Hz | Engine Model | 4BT3.9-G1 |
| Alternator Brand | Stamford PI 144J | Color | Customed |
| Option | ATS, ABB Breaker, Deepsea, SYNC | Governor | MECH / ELECTRIC |
| Highlight | super silent canopy Diesel engine genset,Cummins Diesel engine genset,35kW Diesel engine genset |
||
Product Description
35kW Diesel engine genset silent Cummins Generator with super silent canopy for bank power use
Product Description: 35kW Diesel Engine Genset - Cummins Power at Its Finest
Standard Features:
Introducing our flagship 35kW Diesel Engine Genset, powered by the renowned Cummins engine, the 4BT3.9-G1. This robust generator set is designed for reliability and efficiency, making it the ideal choice for a wide range of applications. Standardly equipped with a PI 144J alternator from Stamford, renowned for its durability and performance, this genset delivers a rated output of 32kW/40kVA and a standby output of 35kW/44kVA, ensuring uninterrupted power supply when you need it most.
Key Features:
- Cummins Engine Technology: Harnessing the power of the 4BT3.9-G1 engine, our 35kW Diesel Engine Genset boasts a turbocharged design for enhanced performance and fuel efficiency. With a displacement of 3.9 liters and a compression ratio of 17.3:1, it delivers maximum power while minimizing emissions.
- Smartgen Controller: Equipped with the Smartgen HGM6110N controller, this genset offers advanced monitoring and protection features, ensuring seamless operation and easy maintenance. The controller's intuitive interface allows for precise control over voltage, frequency, and other critical parameters.
- Durable Alternator: The PI 144J alternator is built to last, with a brushless self-excited control system and Class H insulation, ensuring long-term reliability and performance. Its 3-phase, 4-wire connection supports a wide range of loads, making it suitable for various industrial and commercial applications.
- Compact & Portable Design: Despite its powerful performance, the 35kW Diesel Engine Genset is designed for easy transportation and installation. Its compact dimensions (L2300 * W930 * H1250mm) and lightweight (1050KGS) make it an ideal choice for remote locations or temporary power solutions.
35kW Diesel Engine Genset General Datasheets:
| 35kW Diesel Engine Genset Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG44CS | 4BT3.9-G1 | PI 144J | Smartgen HGM6110N | 35kW | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of Standby 35kW Diesel Engine Genset | |||||
| Engine Model | 4BT3.9-G1 | ||||
| Alternator Mode | PI 144J | ||||
| Rated Output | 32kW / 40kVA | ||||
| Standby Output | 35kW / 44kVA | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 230 / 400V | ||||
| Rated Current | 57.7A | ||||
| Breaker | 63A Aisikai Breaker | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 70dB(A) | ||||
| Net Weight | 1050KGS | ||||
| Genset size | L2300 * W930 * H1250mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for Standby 35kW Diesel Engine Genset | |||||
| Manufacture | Dongfeng Cummins Engine Co., Ltd | ||||
| Model | 4BT3.9-G1 | ||||
| Rated Output/Speed | 36KW/1500RPM | ||||
| Standby Output/Speed | 40KW/1500RPM | ||||
| Aspiration | Turbocharged | ||||
| Speed Governor | MECH | ||||
| Engine Type | 4 cylinders in line | ||||
| Bore X Stroke | 102*120mm | ||||
| Displacement | 3.9 L | ||||
| Compression ratio | 17.3:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 10 L / h | ||||
| Fuel Consumption/standby output | 11 L / h | ||||
| Starter motor | D.C. 12/24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for Standby 35kW Diesel Engine Genset | |||||
| Alternator Model | PI 144J | ||||
| Manufacture | Stamford | ||||
| Rate Output | 32kW | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of Standby 35kW Diesel Engine Genset | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | Smartgen HGM6110N | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 12/24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Usage:
Our 35kW Diesel Engine Genset is perfect for a multitude of applications, including construction sites, data centers, hospitals, emergency backup power, and remote locations where reliable power is crucial. Its robust design and high-performance specifications ensure uninterrupted power supply, even in the most demanding conditions.
Advantages:
- Reliable Power: Backed by Cummins' legendary reliability, our genset provides a dependable source of power, ensuring your operations run smoothly.
- Efficient Fuel Consumption: With optimized fuel consumption rates of 10-11 liters per hour, our genset minimizes operational costs while maximizing performance.
- Low Noise & Emissions: Equipped with a silencer and designed to meet strict emission standards, our genset operates quietly and environmentally friendly.
- Easy Maintenance: The Smartgen controller simplifies maintenance tasks, allowing for quick diagnosis and resolution of any issues.
Options:
- Integrated Fuel Tank: Extend your operational autonomy with an optional integrated fuel tank, available in 12/24-hour capacities.
- Water Heater: Keep your engine running smoothly in cold weather with an optional water heater.
- ATS (Automatic Transfer Switch): Ensure seamless power transfer between your primary and backup power sources with an ATS.
- PMG Generator & SYNC Function: For even greater precision and control, opt for a PMG generator with synchronization capabilities.
- Spare Parts Kit: Protect your investment with a 3000-hour spare parts kit, ensuring you're always prepared for routine maintenance or unexpected repairs.
FAQs:
Q: What is the noise level of the 35kW Diesel Engine Genset?
A: The noise level at 7 meters is 70dB(A), making it suitable for most industrial and commercial environments.
Q: How long does it take to deliver the genset?
A: Delivery typically takes 15 working days from the date of order confirmation.
Q: What payment methods are accepted?
A: We accept a 30% deposit upon order confirmation, with the remaining 70% due before delivery.
Experience the power and reliability of our 35kW Diesel Engine Genset, powered by Cummins technology. Contact us today to learn more about our product and how it can benefit your business.
