Open Frame 48kW Genset Cummins Diesel Generator With 8 Running Hours Base Fuel Tank
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Open Type | Voltage | 220/230/240/380/400/415V |
|---|---|---|---|
| Frequency | 50Hz | Engine Model | DCEC 4BTA3.9-G2 |
| Alternator Brand | Stamford, Tecgen, Leroy Somer, Meccalte | Circuit Breaker | Delixi , CHNT, ABB |
| Option | ATS, Deepsea, SYNC | Governor | ELECTRIC |
| Highlight | Open frame Cummins diesel generator,48kW Cummins diesel generator,8 running hours Cummins diesel generator |
||
Product Description

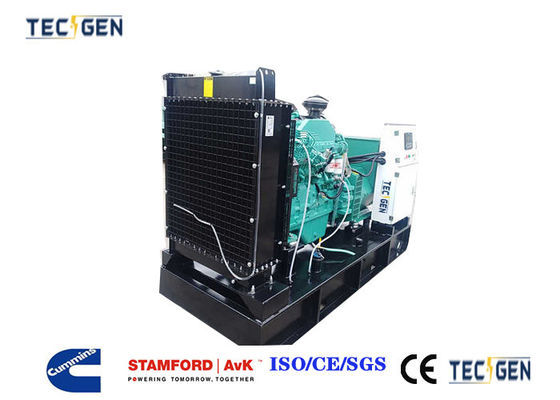

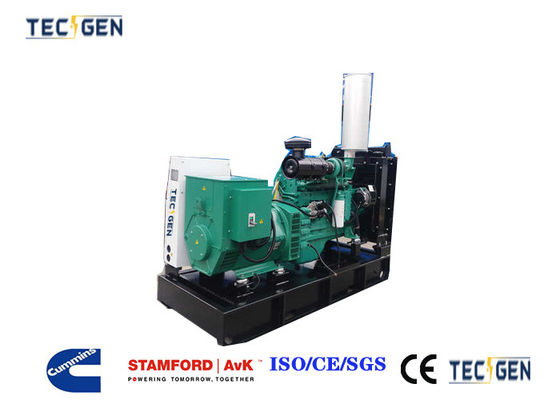

Open frame 48kW genset Cummins diesel generator with 8 running hours base fuel tank
Product Description: Open Frame 48kW Genset with Cummins Power
Introducing the TG66C Open Frame 48kW Genset
Welcome to our flagship product, the TG66C Open Frame 48kW Genset, powered by the reliable Cummins engine, model 4BTA3.9-G2. Designed for exceptional performance and durability, this generator set is the perfect solution for your industrial, commercial, or emergency backup power needs.
Standard Features:
- Cummins Engine: Equipped with the powerful and efficient 4BTA3.9-G2 engine from Dongfeng Cummins Engine Co., Ltd, known for its ruggedness and low fuel consumption.
- 415/240V Voltage: Supplies stable 3-phase power, ensuring compatibility with a wide range of electrical equipment.
- HGM6110 Controller: Intelligent controller with AMF module for automatic mains failure detection and seamless power transfer.
- 8-Hour Base Fuel Tank: Ensuring uninterrupted operation during extended power outages.
- IP23 Enclosure: Protects the alternator from dust and accidental contact, enhancing overall durability.
Key Features:
- Prime Power: Delivering 48kW / 60kVA of prime power and 53kW / 66kVA of standby power, making it an ideal choice for heavy-duty applications.
- Turbocharged & Air-Water Intercooled: Ensuring optimal engine performance, reduced emissions, and longer life.
- Built-in 100A ATS: Simplifies installation and saves space by integrating an automatic transfer switch directly into the genset.
- Smart Voltage Regulation: Maintains steady state voltage within 1%, ensuring precise power output for sensitive electronics.
Open Frame 48kW Genset General Datasheets:
| Technical Specification: | |
| Open Frame 48kW Genset Specification | |
| Genset Model | TG66C |
| Open | |
| Frequency | 50Hz |
| Voltage | 415/240V |
| Phase | 3 |
| Rate Current | 83.5A |
| Prime Power | 48kW / 60kVA |
| Standby Power | 53kW / 66kVA |
| Engine Model | DCEC 4BTA3.9-G2 |
| Alternator Model | TGI224S48 |
| Controller | HGM6110 |
| Fuel Tank Type | 8 Hours Base-fuel-tank |
| ATS | 100A Built-in Auto Transfer Switch |
| Genset Weight & Dimensions | |
| Length (mm) | 1750 |
| width (mm) | 840 |
| Height (mm) | 1360 |
| Weight (kgs) | 930 |
| DCEC Cummins Engine Specification | |
| Brand | Dongfeng Cummins Engine Co., Ltd |
| Engine Model | 4BTA3.9-G2 |
| Prime/Standby power | 58kW / 64kW |
| Injection | Indirect |
| Aspiration | Turbocharged & Air-Water Intercooled |
| No. of cylinders | 4 |
| Bore of Stroke (mm) | 102 x 120 |
| Displacement (L) | 3.3 |
| Cooling | water |
| Compression Ratio | 17.5:1 |
| Engine Oil capacity (L) | 8.3 |
| Coolant Capacity ( In radiator) | 8.3 |
| Governor | Electric |
| Air Filter | Dry Element |
| Fuel consumption | at 50Hz |
| 100% Load (L/h) | 14.9 |
| 75% Load (L/h) | 11.4 |
| 50% Load (L/h) | 8.1 |
| 25% Load (L/h) | 4.8 |
| AC Alternator Specification | |
| Brand | TECGEN |
| Model | TGI224S48 |
| Rate Output | 48kW |
| Pole | 4 |
| Winding Connections | Star |
| Insulation Class | H |
| Enclosure | IP23 |
| Altitude (m) | ≤1000 |
| Voltage Regulator | AVR |
| Steady State Voltage Regulator | 1% |
| Bearing | Single |
| Controller System | |
| Brand | Smartgen |
| Model | HGM6110 |
| Functions | Control with AMF module |
| Static with auto. battery charger | |
| Emergency stop push button | |
| ATS Connection, RS485, CAN | |
| OPTIONAL EQUIPMENTS | |
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | |
Usage:
The Open Frame 48kW Genset is perfect for a variety of applications, including but not limited to:
- Construction sites
- Factories and industrial facilities
- Data centers
- Hospitals and healthcare facilities
- Hotels and resorts
- Agricultural operations
- Remote areas or communities with unreliable grid power
Advantages:
- Reliability: Backed by the reputation of Cummins engines, known for their rugged durability and long service life.
- Efficiency: Optimized for low fuel consumption, reducing operational costs.
- Versatility: Compatible with various load requirements, making it a flexible solution for diverse applications.
- Easy Maintenance: Accessible components and a wide range of spare parts ensure hassle-free maintenance.
Optional Equipment:
- ATS Box
- Switch Box
- Remote Control
- Daily Fuel Tank
- Engine Heater
- Water Heater
- PMG Generator
- Parallel Panel
- Fuel-Water Separator
- Trailer Type Mounting
- 3000 Hours Spare Parts Kit
FAQs:
Q: What is the maximum altitude this generator can operate at?
A: The Open Frame 48kW Genset is designed to operate at altitudes up to 1000 meters without derating.
Q: Can I add a remote control option?
A: Yes, remote control is available as an optional extra, allowing for convenient monitoring and control from a distance.
Q: How does the ATS work?
A: The built-in 100A ATS automatically detects a power failure and seamlessly switches to generator power, ensuring uninterrupted power supply.
Experience the reliability and power of the Open Frame 48kW Genset with Cummins power. Trust us to keep your operations running smoothly, even during unexpected power outages. Order now and experience the difference!
