Continuous 475kVA QSZ13-G3 Diesel Engine Cummins Silent Generator For Industrial Use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent | Product | Cummins Diesel Generator |
|---|---|---|---|
| Engine Brand | Cummins | Engine Model | QSZ13-G3 |
| Alternator Mdoel | TAL-A473-C | Prime Power | 380kW / 475kVA |
| ATS | 800A ATS BOX | Dimension | L4500 * W 1730 * 2430mm |
| Highlight | QSZ13-G3 Cummins genset,Industrial Use Cummins genset,475kVA Cummins genset |
||
Product Description

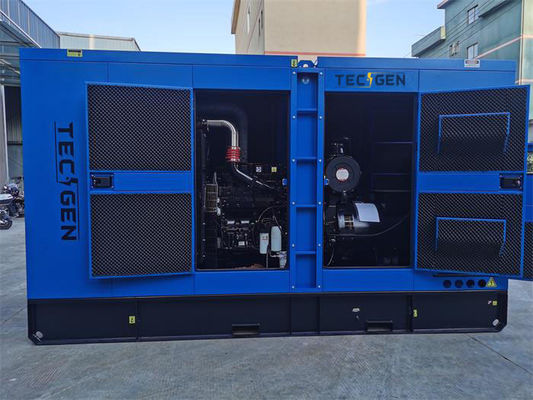

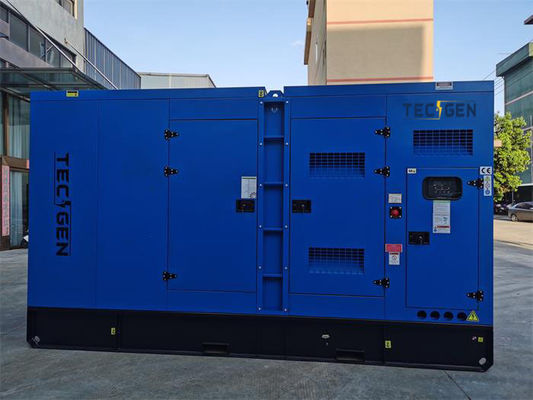

Continuous 475kVA Cummins genset silent generator with QSZ13-G3 diesel engine for industrial use
Standard Features:
Introducing the TG525CS, a Continuous 475kVA Cummins Genset designed for reliability, efficiency, and silence. This state-of-the-art generator set is engineered to meet the most demanding power requirements while operating with minimal noise pollution. The Cummins QSZ13-G3 engine, paired with the Leroy Somer TAL-A473-C alternator, delivers prime power of 380kW and standby power of 420kW, ensuring uninterrupted power supply for critical applications.
With a frequency of 50Hz and a voltage range of 400/230V, the TG525CS is a three-phase, four-wire system that supports a wide array of industrial and commercial needs. Its silent and soundproof design makes it ideal for noise-sensitive environments, making it a perfect Silent Generator for hospitals, data centers, and residential communities.
Key Features:
- Powerful Engine: The Cummins QSZ13-G3 engine, featuring a turbocharged and air-air intercooled aspiration, provides robust performance with a displacement of 13 liters and a compression ratio of 17:1. This engine is designed for durability and fuel efficiency, with an engine oil capacity of 23.1 liters and a coolant capacity of 23.1 liters in the radiator.
- High-Efficiency Alternator: The Leroy Somer TAL-A473-C alternator offers a rate output of 400kW, ensuring clean and stable power output. Its star winding connections and H-class insulation provide excellent electrical performance and long-term reliability.
- Advanced Controller System: The DEIF SGC420 controller system includes AMF (Automatic Mains Failure) module, static auto battery charger, emergency stop push button, and ATS (Automatic Transfer Switch) connection, ensuring seamless operation and easy monitoring.
- Compact Design: With dimensions of 4500mm in length, 1730mm in width, and 2430mm in height, and a weight of 5300kg, the TG525CS is designed for easy installation and transportation.
Continuous 475kVA Cummins Genset Technical Datasheets:
| Technical Specification: | |
| Continuous 475kVA Cummins Genset Specification | |
| Genset Model | TG525CS |
| Silent & Soundproof | |
| Frequency | 50Hz |
| Voltage | 400/230V |
| Phase | Three Phase, Four Wire |
| Rate Current | 685.6A |
| Prime Power | 380kW / 475kVA |
| Standby Power | 420kW / 525kVA |
| Engine Model | QSZ13-G3 |
| Alternator Model | TAL-A473-C |
| Controller | SGC-420 |
| Weight & Dimensions | |
| Length (mm) | 4500 |
| width (mm) | 1730 |
| Height (mm) | 2430 |
| Weight (kgs) | 5300 |
| Engine Specifications | |
| Brand | Cummins |
| Engine Model | QSZ13-G3 |
| Prime (kw) | 450 |
| Injection | Indirect |
| Aspiration | Turbocharged and Air-air Intercooled |
| No. of cylinders | 6 L |
| Bore of Stroke (mm) | 130 x 163mm |
| Displacement | 13 |
| Cooling | water |
| Compression Ratio | 17:1 |
| Engine Oil capacity | 23.1 L |
| Coolant Capacity ( In radiator) | 23.1 L |
| Governor | ECU |
| Air Filter | Dry Element |
| Fuel consumption | at 50Hz |
| 100% Load (L/h) | 101 |
| 75% Load (L/h) | 74 |
| 50% Load (L/h) | 48.8 |
| 25% Load (L/h) | 26 |
| Alternator Specification | |
| Brand | Leroy Somer |
| Model | TAL-A473-C |
| Rate Output (kW) | 400 |
| Pole | 4 |
| Winding Connections | Star |
| Insulation Class | H |
| Enclosure | IP23 |
| Altitude (m) | ≤1000 |
| Voltage Regulator | AVR |
| Steady State Voltage Regulator | 1% |
| Bearing | Single |
| Controller System | |
| Brand | DEIF |
| Model | SGC420 |
| Functions | Control with AMF module |
| Static with auto. battery charger | |
| Emergency stop push button | |
| ATS Connection | |
| OPTIONAL EQUIPMENTS | |
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | |
Usage:
The Continuous 475kVA Cummins Genset is perfect for a wide range of applications, including hospitals, data centers, telecommunication facilities, commercial buildings, and industrial plants. Its silent operation makes it ideal for use in noise-sensitive areas, ensuring that power is delivered without disturbing the environment.
Advantages:
- Silent Operation: The soundproof design reduces noise levels, making it suitable for use in noise-sensitive environments.
- Reliability: With a Cummins engine and Leroy Somer alternator, you can trust in the reliability and durability of the TG525CS.
- Efficiency: The generator set operates with high fuel efficiency, reducing operational costs.
- Advanced Control: The DEIF SGC420 controller system provides comprehensive monitoring and control, ensuring seamless operation.
- Compact Size: The compact design allows for easy installation and transportation, making it a versatile solution for various applications.
Options:
- ATS Box: Provides automatic transfer of power between the generator set and the utility grid.
- Switch Box: Offers manual transfer of power and additional safety features.
- Remote Control: Allows for remote monitoring and control of the generator set.
- Daily Fuel Tank: Ensures a continuous supply of fuel for extended operations.
- Engine Heater and Water Heater: Keeps the engine and coolant warm during cold weather conditions.
- PMG Generator: Provides a stable and accurate power supply for critical loads.
- Parallel Panel: Allows for the connection of multiple generator sets to increase power output.
- Fuel-Water Separator: Protects the engine from water contamination in the fuel.
- Trailer Type: Provides easy transportation and mobility for the generator set.
- 3000 Hours Spare Parts: Ensures you have the necessary parts on hand for maintenance and repairs.
FAQ:
- Q: What is the noise level of the TG525CS?
A: The TG525CS is designed for silent operation, making it suitable for use in noise-sensitive environments. - Q: What is the fuel consumption of the generator set?
A: The fuel consumption varies based on the load. At 100% load, the fuel consumption is 101 liters per hour. - Q: Can the generator set be controlled remotely?
A: Yes, the optional remote control feature allows for remote monitoring and control of the generator set. - Q: What is the warranty period for the TG525CS?
A: Please contact our sales team for warranty information.
