Soundproof 500kVA Cummins Diesel Generator 400kW Prime Power For Emergency Power
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent | Product | Cummins Diesel Generator |
|---|---|---|---|
| Engine Brand | Cummins | Engine Model | QSZ13-G10 |
| Alternator Mdoel | TGI354S400 | Prime Power | 400kW / 500kVA |
| ATS | 800A ATS BOX | Frequency | 50Hz |
| Highlight | Emergency Power Cummins diesel generator,400kW Cummins diesel generator,500kVA Cummins diesel generator |
||
Product Description
Soundproof 500kVA genset Cummins diesel generator 400kW prime power for emergency power
Standard Features:

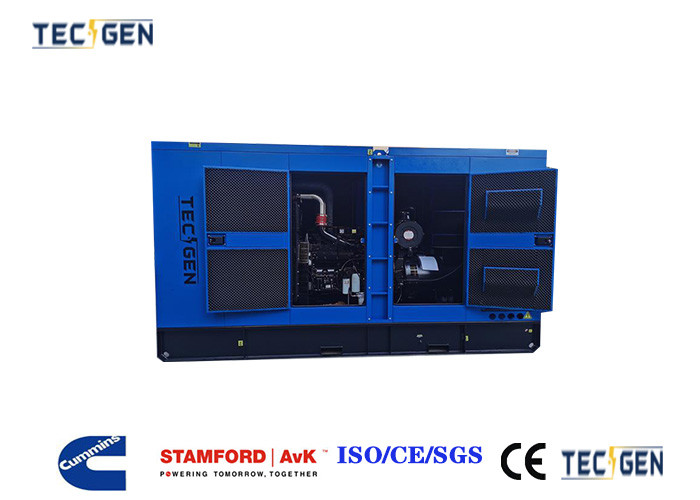

Introducing the TG550CS, a state-of-the-art soundproof 500kVA genset powered by a Cummins diesel engine. This generator set is designed for reliability, efficiency, and quiet operation, making it perfect for a variety of applications. The TG550CS features a robust QSZ13-G10 Cummins engine, paired with a Tecgen TGI354S400 alternator, ensuring a steady and consistent power supply. The frequency of 50Hz and voltage of 400/230V, in three-phase configuration, cater to a wide range of industrial and commercial needs.
Key Features:

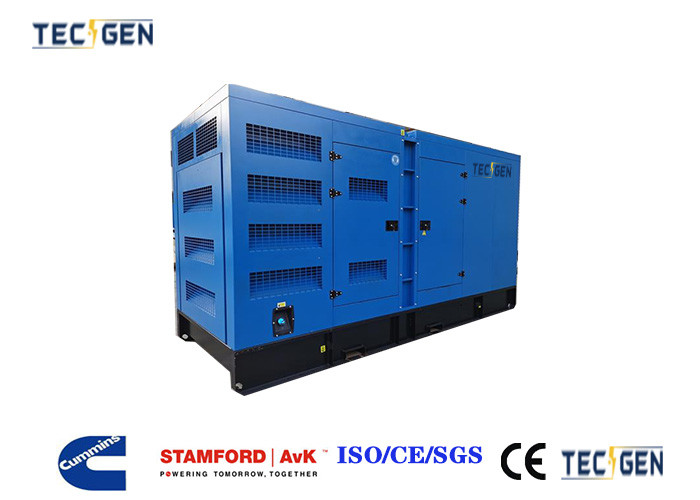

- Silent & Soundproof Design: The TG550CS boasts a soundproof enclosure, significantly reducing noise levels, making it ideal for sensitive environments where quiet operation is crucial.
- Powerful Cummins Engine: Equipped with the reliable QSZ13-G10 Cummins engine, offering prime power of 400kW and standby power of 440kW, this genset can handle even the most demanding power requirements.
- Advanced Alternator: The Tecgen TGI354S400 alternator ensures clean and stable power output, with a rate current of 721.7A, perfect for sensitive electronic equipment.
- Intelligent Control System: The DEIF SGC-420 controller provides comprehensive monitoring and control functions, including AMF (Automatic Mains Failure) module, static with an automatic battery charger, emergency stop push button, and ATS (Automatic Transfer Switch) connection.
- Compact and Durable: With dimensions of 4500mm (L) x 1730mm (W) x 2430mm (H) and a weight of 5400kg, the TG550CS is designed for both portability and durability, making it suitable for various installations.
Soundproof 500kVA Genset Technical Datasheets:
| Technical Specification: | |
| Soundproof 500kVA Genset Specification | |
| Genset Model | TG550CS |
| Silent & Soundproof | |
| Frequency | 50Hz |
| Voltage | 400/230V |
| Phase | 3 |
| Rate Current | 721.7A |
| Prime Power | 400kW / 500kVA |
| Standby Power | 440kW / 550kVA |
| Engine Model | QSZ13-G10 |
| Alternator Model | TGI354S400 |
| Controller | SGC-420 |
| Weight & Dimensions | |
| Length (mm) | 4500 |
| width (mm) | 1730 |
| Height (mm) | 2430 |
| Weight (kgs) | 5400 |
| Cummins Engine Specification | |
| Brand | Cummins |
| Engine Model | QSZ13-G10 |
| Prime/Standby power (kW) | 463 / 509 |
| Injection | Indirect |
| Aspiration | Turbocharged and Intercooled |
| No. of cylinders | 6 |
| Bore of Stroke (mm) | 130 x 163 |
| Displacement (L) | 25.8 |
| Cooling | water |
| Compression Ratio | 17:1 |
| Engine Oil capacity (L) | 13 |
| Coolant Capacity ( In radiator) | 13 |
| Governor | ECU |
| Air Filter | Dry Element |
| Fuel consumption | at 50Hz |
| 100% Load (L/h) | 95 |
| 75% Load (L/h) | 71 |
| 50% Load (L/h) | 48 |
| 25% Load (L/h) | 24 |
| Alternator Specification | |
| Brand | Tecgen |
| Model | TGI354S400 |
| Rate Output (kVA) | 500 |
| Pole | 4 |
| Winding Connections | Star |
| Insulation Class | H |
| Enclosure | IP23 |
| Altitude (m) | ≤1000 |
| Voltage Regulator | AVR |
| Steady State Voltage Regulator | 1% |
| Bearing | Single |
| Controller System | |
| Brand | DEIF |
| Model | SGC-420 |
| Functions | Control with AMF module |
| Static with auto. battery charger | |
| Emergency stop push button | |
| ATS Connection | |
| OPTIONAL EQUIPMENTS | |
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | |
Usage:
The Soundproof 500kVA Genset is ideal for a multitude of applications, including hospitals, data centers, commercial buildings, and industrial sites. It provides a reliable backup power solution during power outages, ensuring continuous operation of critical equipment and services.
Advantages:
- High Efficiency: The Cummins engine and Tecgen alternator work in harmony to deliver high efficiency and reduced fuel consumption.
- Quiet Operation: The soundproof design ensures minimal noise pollution, making it suitable for residential and commercial areas.
- Durability: Built with high-quality materials and precision engineering, the TG550CS is designed for long-lasting performance and reliability.
- Versatility: Suitable for a wide range of power requirements, making it a versatile solution for various industries.
- User-Friendly Controls: The DEIF SGC-420 controller offers intuitive and user-friendly operation, making it easy to monitor and manage the genset.
Options:
Customize your Soundproof 500kVA Genset with the following optional equipment:

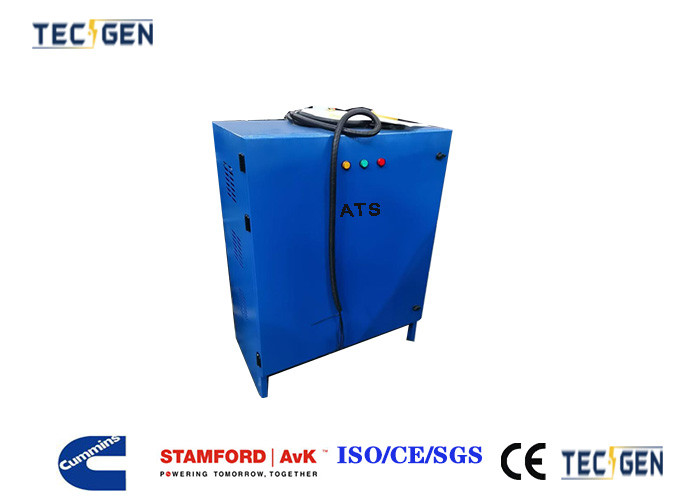

- ATS Box: Automatic Transfer Switch for seamless power transfer between the genset and the main power supply.
- Switch Box: Provides additional control options and safety features.
- Remote Control: Monitor and control your genset remotely via a smartphone or computer.
- Daily Fuel Tank: Ensure a continuous power supply with an additional fuel tank.
- Engine Heater and Water Heater: Protect your genset from cold weather conditions.
- PMG Generator: Provides a stable power supply for sensitive equipment.
- Parallel Panel: Allows for the connection of multiple gensets for increased power output.
- Fuel-Water Separator: Ensures clean fuel supply, reducing engine wear and tear.
- Trailer Type: Easily transport your genset to different locations.
- 3000 Hours Spare Parts: Keep a stock of essential spare parts for maintenance and repairs.
FAQ:
- What is the prime power of the TG550CS genset? The prime power is 400kW / 500kVA.
- How quiet is the soundproof design? The soundproof enclosure significantly reduces noise levels, making it suitable for sensitive environments.
- What type of engine does the TG550CS use? It uses a Cummins QSZ13-G10 engine.
- Can the genset be controlled remotely? Yes, with the optional remote control feature.
- What is the warranty period for the genset? Please contact us for warranty details.
By choosing the Soundproof 500kVA Genset with Cummins Diesel Generator, you are investing in a reliable, efficient, and versatile power solution that will meet your needs now and in the future. With its advanced features and customizable options, the TG550CS is designed to deliver optimal performance and satisfaction. For more information or to place an order, contact us today.
