450kVA Leroy Somer Alternator Perkins Power Generator For Continuous Use
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG495PSD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Perkins Diesel Generator | Type | Silent Type |
|---|---|---|---|
| Frequency | 60Hz | Prime Output | 450kVA / 360kW |
| Engine Model | 2206A-E13TAG6 | Aternator Model | TAL-A473-B |
| Controller | DEIF 420 | ||
| Highlight | Perkins 450kVA generating set,Leroy Somer alternator generating set,Perkins 450kVA silent power generator |
||
Product Description

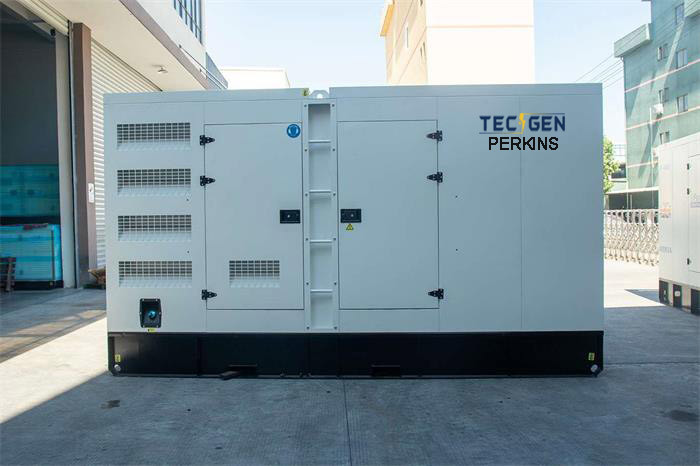

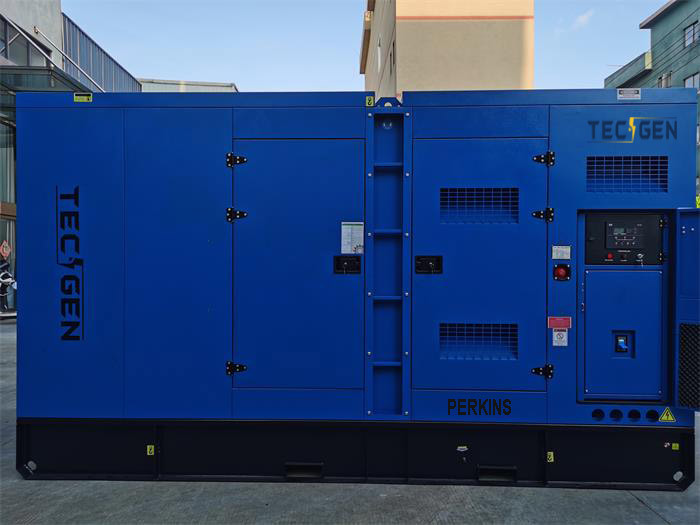

Perkins 450kVA generating set silent power generator with Leroy Somer alternator for continuous use
Product Description: Perkins 450kVA Generating Set - The Silent Power Generator
Standard Features:
Introducing the Perkins 450kVA Generating Set, a powerhouse designed for reliability, efficiency, and silent operation. This generating set comes equipped with a robust 2206A-E13TAG6 engine from Perkins, renowned for its durability and performance. The alternator, TAL-A473-B by Leroy Somer, ensures a stable and consistent power output of 450kVA (360kW) at a rated speed of 1800 RPM. The DEIF SGC-420 controller provides seamless monitoring and control, making it an ideal choice for various applications.
Key Features:
- Powerful Engine: The Perkins 2206A-E13TAG6 engine boasts a rated output of 400KW and a standby output of 460KW, both at 1800 RPM. Turbocharged and air-to-air charge cooling ensure optimal performance even under heavy loads.
- Silent Operation: Engineered for minimal noise pollution, the Perkins 450kVA Generating Set operates at just 75dB(A) at 7 meters, making it an excellent choice for noise-sensitive environments.
- Efficient Alternator: The Leroy Somer TAL-A473-B alternator offers a rated voltage of 480V and a rated current of 541.3A, with AVR voltage regulation to maintain ±1% accuracy. Its brushless self-excited control system ensures reliability and ease of maintenance.
- Advanced Control System: The DEIF SGC-420 controller provides comprehensive monitoring and control features, allowing for seamless integration into existing power systems.
- Comprehensive Accessories: Standard accessories include an aluminum water tank, controller panel, maintenance-free batteries, silencer, and a 24V DC automatic battery charger, ensuring a ready-to-use setup.
Perkins 450kVA Generating Set Datasheets:
| Perkins 450kVA Generating Set Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG495PSD6 | 2206A-E13TAG6 | TAL-A473-B | DEIF SGC-420 | 450kVA | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 25 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of Perkins 450kVA Generating Set | |||||
| Engine Model | 2206A-E13TAG6 | ||||
| Alternator Mode | TAL-A473-B | ||||
| Rated Output | 450kVA / 360kW | ||||
| 1 Hour Output | 495kVA / 396kW | ||||
| Rated Speed | 1800 RPM | ||||
| Frequency | 60 HZ | ||||
| Rated Voltage | 480V | ||||
| Rated Current | 541.3A | ||||
| Breaker | 630A Deilxi Breaker | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 75dB(A) | ||||
| Net Weight | 4600KGS | ||||
| Genset size | L4400 * W1600 * H2200mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for Perkins 450kVA Generating Set | |||||
| Manufacture | Perkins | ||||
| Model | 2206A-E13TAG6 | ||||
| Rated Output/Speed | 400KW/1800RPM | ||||
| Standby Output/Speed | 460KW/1800RPM | ||||
| Aspiration | turbocharged, air-to-air charge cooling | ||||
| Speed Governor | Electric | ||||
| Engine Type | 6 cylinders in line | ||||
| Bore X Stroke | 130*157mm | ||||
| Displacement | 12.5 L | ||||
| Compression ratio | 16.3:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1800rpm | ||||
| Fuel Consumption/rated output | 75 L / h | ||||
| Fuel Consumption/standby output | 82 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for Perkins 450kVA Generating Set | |||||
| Alternator Model | TAL-A473-B | ||||
| Manufacture | Leroy Somer | ||||
| Rate Output | 365kW | ||||
| Rated voltage(V) | 480V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of Perkins 450kVA Generating Set | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Usage:
The Perkins 450kVA Generating Set is perfect for a wide range of applications, including commercial buildings, hospitals, data centers, and industrial facilities. Its silent operation and reliable performance make it an ideal backup power solution for critical loads.
Advantages:
- Reliability: With a Perkins engine and Leroy Somer alternator, you can trust the Perkins 450kVA Generating Set to deliver consistent and reliable power when needed.
- Efficiency: The engine's turbocharged and air-to-air charge cooling system ensures optimal fuel efficiency, reducing operational costs.
- Silent Operation: The generating set's low noise level makes it suitable for use in noise-sensitive environments, such as residential areas and hospitals.
- Advanced Monitoring: The DEIF SGC-420 controller provides real-time monitoring and control, allowing for proactive maintenance and troubleshooting.
- Comprehensive Accessories: The included accessories ensure a hassle-free setup and operation, saving you time and money.
Options:
Customize your Perkins 450kVA Generating Set with the following options:
- Integrated Fuel Tank: Extend the running time without the need for frequent refueling.
- Water Heater: Keep the engine warm in cold climates, ensuring optimal performance.
- ATS (Automatic Transfer Switch): Automatically switch between main and generator power sources during outages.
- PMG Generator: Provides additional power for auxiliary systems, such as starting and charging batteries.
- SYNC Function: Synchronize the generator with the main grid for seamless power transfer.
- 12/24 Hours Fuel Tank: Choose the fuel tank capacity that best suits your needs.
- 3000 Hours Spare Parts: Ensure you have the necessary spare parts on hand for routine maintenance and repairs.
FAQ:
- What is the noise level of the Perkins 450kVA Generating Set?
- The noise level is 75dB(A) at 7 meters, making it one of the quietest generators in its class.
- How long can the generating set run on a full fuel tank?
- The standard fuel tank provides up to 8 running hours, but you can opt for a larger tank for extended operation.
- What type of engine does the Perkins 450kVA Generating Set use?
- It uses a Perkins 2206A-E13TAG6 engine, known for its durability and performance.
- Is the generating set easy to maintain?
- Yes, with its brushless self-excited alternator and comprehensive accessories, the Perkins 450kVA Generating Set is designed for ease of maintenance.
- Can I customize the generating set with additional features?
- Yes, several options are available to tailor the generating set to your specific needs.
In conclusion, the Perkins 450kVA Generating Set is a silent power generator that combines reliability, efficiency, and advanced features to meet the diverse needs of various applications. With its comprehensive accessories and customizable options, it's the perfect choice for backup power solutions in noise-sensitive environments. Don't miss out on this top-notch product – order yours today!
