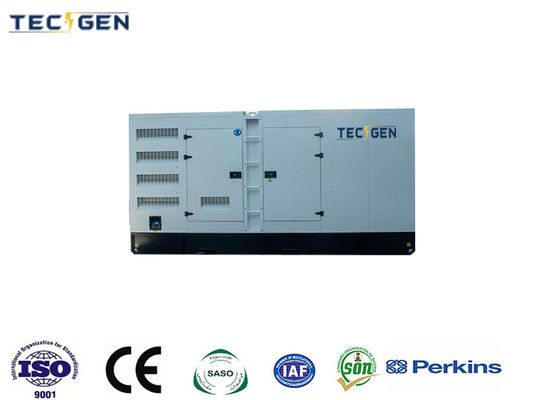

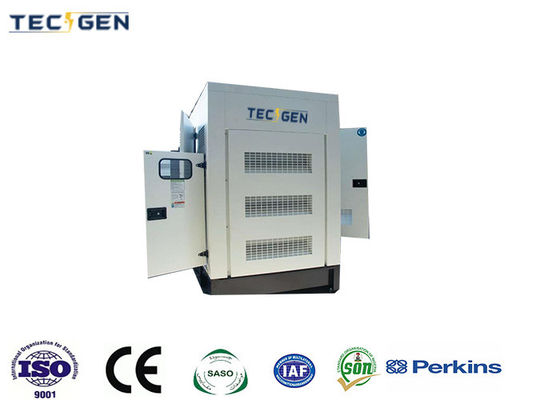

Standby 495kVA Perkins Silent Diesel Generator With Stamford Alternator For Continuous Use
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG495PS |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Perkins Diesel Generator | Type | Silent Type |
|---|---|---|---|
| Frequency | 50Hz | Max Output | 495kVA / 396kW |
| Engine Model | 2506C-E15TAG1 | Aternator Model | HCI 544C |
| Speed | 1800rpm | ||
| Highlight | 495kva perkins silent diesel generator,perkins 495 kva super silent diesel generator,Continuous Use perkins diesel generator |
||
Product Description
Standby 495kVA Perkins genset silent Perkins generator with Stamford alternator for continuous use
Standard Features of the Standby 495kVA Perkins Genset:
Introducing the Standby 495kVA Perkins Genset, a silent enclosed diesel generator designed for seamless power backup and reliability. This genset boasts a prime output of 450kVA/360kW and a maximum output of 495kVA/396kW, powered by the robust Perkins 2506C-E15TAG1 engine. The Stamford HCI 544C alternator ensures a stable and consistent power supply, making it ideal for various applications requiring dependable standby power.
Key Features:
- Silent Operation: The enclosed design minimizes noise pollution, making it suitable for residential, commercial, and industrial settings where quiet operation is crucial.
- High Efficiency: With a fuel consumption rate of 229g/kW.h, the Perkins engine delivers maximum power with minimal fuel consumption.
- Advanced Controller: Equipped with the DEIF SGC-420 controller, which provides AMF/ATS functionalities, RS485 & CAN communication, PLC & BTN capabilities, and comprehensive protection features.
- Stable Power Output: The Stamford brushless alternator maintains a steady voltage regulation rate of ≤0.5%, ensuring stable power output even during sudden load changes.
- Durability: Built with high-quality components, including a Varta battery and Aisikai/Delixi breaker, the genset is designed for long-lasting performance.
Standby 495kVA Perkins Genset Datasheets:
| Standby 495kVA Perkins Genset Datasheet | ||||
| Perkins Diesel Generator | Genset Type | Silent Enclosed | ||
| Genset Model | TG495PS | |||
| Prime Output | 450kVA / 360kW | |||
| Max Output | 495kVA / 396kW | |||
| Engine model | 2506C-E15TAG1 | |||
| Alternator model | HCI 544C | |||
| Frequency | 50Hz | |||
| Speed | 1500rpm | |||
| Voltage | 380/220V | |||
| Output Type | 3 Phase, 4 Wire | |||
| Current | 683.7A | |||
| Controller | DEIF SGC-420 | |||
| ATS | Option | |||
| Breaker | Aisikai / Delixi | |||
| Battery | Varta | |||
| Fuel Tank | 8 running Hours | |||
| Demission | L3100 x W2000 x H1900 | |||
| Weight | 3500 | |||
| Perkins Diesel Genset parameters | ||||
| Voltage setting range | ≥±10% | |||
| Steady state voltage regulation rate | ≤0.5% | |||
| Transient voltage deviation (100% sudden power reduction) | ≤+17% | |||
| Transient Voltage Deviation (40% Sudden Power) | ≤-6.5% | |||
| Voltage Stability Time (100% Sudden Power Reduction) | ≤2.8S | |||
| Voltage Stability Time (40% Sudden Power) | ≤2.5S | |||
| Frequency adjustment range | ≥±10%Adjustble | |||
| Frequency volatility | ≤±0.25% | |||
| Transient frequency deviation (100% sudden power reduction) | ≤+8% | |||
| Transient frequency deviation (40% sudden power) | ≤-5% | |||
| Frequency Recovery Time (100% Sudden Power Reduction) | ≤1.48S | |||
| Frequency recovery time (40% sudden power) | ≤1.35S | |||
| Diesel Engine Parameters | ||||
| Perkins Engine 2506C-E15TAG1 | Brand | Perkins (USA) | ||
| Model | 2506C-E15TAG1 | |||
| Prime power | 396kW | |||
| Combustion | Direct Injection | |||
| No. of Cylinders | 6 Cylinder | |||
| Aspiration | turbocharged, air to air charge cooling | |||
| Compression Ratio | Direct Injection | |||
| Speed | 1500rpm | |||
| Displacement | 15L | |||
| Bore* Storke | 137*171mm | |||
| governor | Electric | |||
| Start motor | DC 24V | |||
| Cooling Capacity | 58L | |||
| Cooling Type | Water cooling | |||
| FUEL CONSUMPTION | 229g/kW.h | |||
| Stamford Brushless Alternator Parameters | ||||
| Stamford Alternator HCI 544C | Brand | Stamford | ||
| Model | HCI 544C | |||
| Rate Output | 364kW | |||
| Rate Speed | 1500rpm | |||
| Frequency | 50Hz | |||
| Altitude | ≤1000 | |||
| Alternator type | Single bearing, brushless type | |||
| Connection Type | 3 phase, 4 wire | |||
| Protection Grade | IP23 | |||
| Insulation Class | H | |||
| Voltage Regulation | AVR | |||
| Option brand | Stamford,Leroy Somer,Meccalte | |||
| Genset Controller System | ||||
| Controller DEIF SGC-420 | Brand | DEIF | ||
| Model | SGC-420 | |||
| Working Voltage | DC8.0V to DC35.0V, continuous | |||
| Overall Dimensions (mm) | 233*38.5*173 | |||
| Functions | AMF/ATS | |||
| RS485 & CAN communication | ||||
| 9 Inlet & 7 Outlet | ||||
| PLC & BTN | ||||
| Protections | Under-speed | |||
| Over-speed | ||||
| Configurable crank connect | ||||
| Battery monitoring | ||||
| Charging alternator | ||||
| Pre-heat | ||||
| Coolant temperature | ||||
| Lube oil pressure | ||||
| Fuel level detection | ||||
| Fuel theft detection | ||||
| ECU communication failure | ||||
| ECU diagnostic lamp | ||||
| Option brand | DEEPSEA,Smartgen,ComAp | |||
| Optional accessories | ||||
| Engine | Alternator | Electrical system | ||
| Water Heater | Anti-condensation heater | Anti-condensation heater | ||
| Oil preheater | PMG | Unit control screen with three remote functions | ||
| Air starting motor | Parallel | ATS automatic load transfer screen | ||
| Heavy Air Filter for Desert | Generators of other temperature rise grades | Full-automatic parallel screen for multiple units | ||
| Heavy duty secondary muffler | RTD temperature sensor, 2 per phase | Remote control system separate from unit | ||
| Fuel system | Other | Cooling system | ||
| 12/24h Base tank | Super Silent Canopy | Split water tank | ||
| Oil - water separator | Static sound box generator set |
|
||
| Fully automatic oil supply system | Vehicle-mounted power generation vehicle | Heat exchanger and external circulation cooling tower | ||
| Integrated Fuel Tank | Towing generator set | Marine cooling system | ||
| Delivery Date of Diesel Generator Set | ||||
| Spot goods | QTY(Set) | 12 – 24 Sets | 24 – 120 Sets | |
| Delivery Time | 7-15 Days | 15 – 25 Days | ||
| Custom | Delivery Time | 20 Days | 20 – 30 Days | |
Usage:
The Standby 495kVA Perkins Genset is perfect for a wide range of applications, including hospitals, data centers, hotels, and industrial facilities. It serves as a reliable backup power source during power outages, ensuring critical operations continue without interruption.
Advantages:
- Silent Perkins Generator Technology: Our genset incorporates advanced noise reduction techniques, making it one of the quietest in its class.
- Robust Engine: The Perkins engine is known for its durability and reliability, providing years of trouble-free operation.
- Flexible Configuration: With optional accessories such as a water heater, oil preheater, and ATS automatic load transfer screen, the genset can be customized to meet specific needs.
- Easy Maintenance: Designed for ease of maintenance, the genset features accessible components and diagnostic tools that simplify troubleshooting and repairs.
Options:
- ATS Automatic Load Transfer Screen: Automatically transfers loads between the genset and the main power supply, ensuring seamless power transitions.
- Full-Automatic Parallel Screen for Multiple Units: Allows for the synchronization and parallel operation of multiple gensets, providing additional power capacity.
- Integrated Fuel Tank: Reduces the need for frequent refueling, enhancing the genset's autonomy and convenience.
- Remote Control System: Enables remote monitoring and control of the genset, improving operational efficiency and reducing downtime.
FAQ:
- Q: What is the noise level of the Standby 495kVA Perkins Genset?
A: The genset is designed for silent operation, minimizing noise pollution to suitable levels for residential and commercial settings. - Q: How long can the genset run on a full fuel tank?
A: The fuel tank provides enough fuel for 8 running hours, ensuring extended operation during power outages. - Q: Can the genset be customized with additional features?
A: Yes, various optional accessories are available to tailor the genset to specific needs and applications.
Conclusion:
Experience the reliability and efficiency of the Standby 495kVA Perkins Genset, a silent and powerful backup power solution. Engineered with advanced technology and high-quality components, this genset is designed to meet the most demanding power requirements. Whether you're looking for a dependable power source for your hospital, data center, or industrial facility, the Standby 495kVA Perkins Genset is the perfect choice. Don't let power outages disrupt your operations – choose the Silent Perkins Generator today!
