Silent 619kVA Yuchai Diesel Generator With 6 Cylinder Watercooled Engine Backup Use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Yuchai Diesel Generator | Frequency | 50Hz |
|---|---|---|---|
| Speed | 1500rpm | Engine Brand | Yuchai |
| Engine Model | YC6TD780-D31 | Alternator Model | Stamford S5L1D-D4 |
| Prime Power | 450kW / 563kVA | Max Power | 495kW / 619kVA |
| Highlight | Silent Yuchai diesel generator,619kVA diesel yuchai generator,6 cylinder watercooled engine diesel generator |
||
Product Description

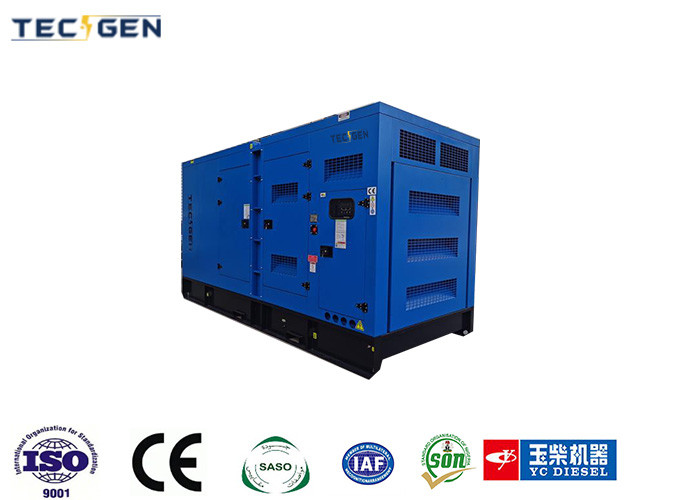

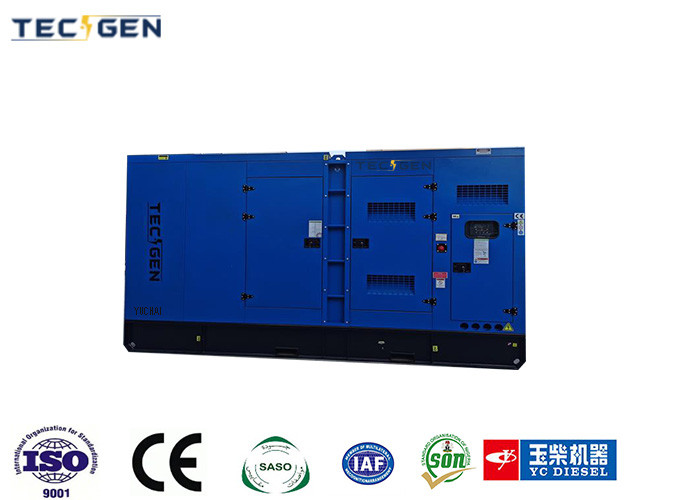

Silent 619kVA diesel generator Yuchai diesel generator with 6 cylinder watercooled engine backup use
Standard Features
Introducing the Silent 619kVA Diesel Generator, a powerful and reliable energy solution designed for a variety of applications. Equipped with a robust Yuchai diesel engine (YC6TD780-D31), this generator provides prime power of 450kW and standby power of 495kW, ensuring uninterrupted power supply in critical situations. The Stamford alternator (S5L1D-D4) offers clean and stable electricity with a frequency of 50Hz and a speed of 1500rpm, making it ideal for sensitive electrical loads.
Key Features
- Silent Operation: The Silent 619kVA Diesel Generator features advanced sound-damping technology that reduces noise levels to a minimum, making it suitable for use in residential areas, hospitals, and other noise-sensitive environments.
- High Efficiency: With a power factor of 0.8, this generator maximizes energy output while minimizing fuel consumption. The Yuchai engine, known for its fuel efficiency, consumes only 200g/kWh at full load, reducing operational costs.
- Durability and Reliability: Built with high-quality materials and precision engineering, the Silent 619kVA Diesel Generator is designed to withstand harsh conditions and provide years of trouble-free service.
- Advanced Control System: The DEIF SGC-420 controller offers comprehensive monitoring and control functions, including automatic mains failure detection, emergency stop, and ATS & RS485 connectivity, ensuring seamless integration with your existing power systems.
- Compact Design: Despite its powerful performance, the generator is compact and easy to transport, thanks to its dimensions of L4800W1900H2300mm and a weight of 5800kgs.
Silent 619kVA Diesel Generator Specifications:
| Silent 619kVA Diesel Generator Technical Datasheets | ||||||
| Genset model | TG619YCS | |||||
| Genset Type | Silent | |||||
| Rate Voltage | 440V//415V/400V/380V/230V/220V/110V | |||||
| Frequency | 50Hz | |||||
| Speed | 1500rpm | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 783.3A | |||||
| Prime Power | 450kW / 563kVA | |||||
| Standby Power | 495kW / 619kVA | |||||
| Engine | Brand | Yuchai | ||||
| Model | YC6TD780-D31 | |||||
| Alternator | Brand | Stamford | ||||
| Model | S5L1D-D4 | |||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Genset Weight | 5800kgs | |||||
| Genset Dimensions | L4800* W 1900 * 2300 | |||||
| Yuchai Diesel Engine Data | ||||||
| Brand | YUCHAI | |||||
| Engine Model | YC6TD780-D31 | |||||
| Number of Cylinders | 6 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Turbocharged & Intercooled | |||||
| Displacement | 19.6L | |||||
| Compression ratio | 17.5:1 | |||||
| Bore×Stroke | N.A | |||||
| Speed | 1500rpm | |||||
| Prime Power | 500kW | |||||
| Standby Power | 550kW | |||||
| Speed Governor | Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 200g/kwh@1500rpm | |||||
| Stamford Brand Alternator Data | ||||||
| Brand | Stamford | |||||
| Model | S5L1D-D4 | |||||
| Frequency/speed | 50HZ/1500RPM | |||||
| Rate Output | 450kW | |||||
| No. of Phase | 3 Phase, 4 Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| DEIF Controller System | ||||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Function | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent | ||
| 10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay | |||
| 16kW ~ 600kW | Deutz | Marathon | DEIF | |||
| 7kW ~ 64kW | Yangdong |
Tecgen
|
||||
| 7kW ~ 76kW | Quanchai | |||||
| 18kW ~ 3000kW | Weichai | |||||
| 8kW ~ 800kW | SDEC | |||||
| 12kW ~ 320kW | FAWDE | |||||
| 18kW ~ 1200kW | Yuchai | |||||
| 11kW ~ 104kW | Beinei Aircooled | |||||
| 7kW ~ 1800kW | Perkins | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage
The Silent 619kVA Diesel Generator is perfect for a wide range of applications, including:
- Residential Backup Power: Provide reliable backup power for homes during power outages.
- Commercial Use: Support critical business operations with uninterrupted power supply in offices, retail stores, and other commercial settings.
- Industrial Applications: Power industrial machinery and equipment in factories, mines, and construction sites.
- Emergency Services: Ensure reliable power supply for hospitals, fire stations, and other emergency services.
Advantage
- Cost-Effective: With its high efficiency and low fuel consumption, the Silent 619kVA Diesel Generator offers a cost-effective power solution.
- Versatile: Suitable for a variety of applications, from residential to industrial use.
- Environmentally Friendly: The generator complies with strict emission standards, reducing its environmental impact.
- User-Friendly: The intuitive DEIF controller makes it easy to monitor and control the generator, even for users with limited technical experience.
Option
We offer a range of customization options to suit your specific needs, including:
- Different Engine Brands: Choose from a variety of engine brands, including Cummins, Weifang Ricardo, Deutz, and more.
- Alternator Options: Select from alternators by Stamford, Tecgen, and others to match your power requirements.
- Controller Upgrades: Opt for advanced controller systems from brands like DEIF, Mebay, and Smartgen for enhanced monitoring and control capabilities.
FAQ
Q: What is the fuel consumption of the Silent 619kVA Diesel Generator?
A: The generator consumes 200g/kWh at full load, providing efficient and cost-effective power.
Q: Can the generator be used in residential areas?
A: Yes, thanks to its silent operation and compact design, the Silent 619kVA Diesel Generator is perfect for use in residential areas.
Q: What is the warranty period for the generator?
A: Our generators come with a comprehensive warranty that covers all manufacturing defects and issues. Please contact us for more details.
Q: Can the generator be customized to my specific needs?
A: Yes, we offer a range of customization options to suit your specific power requirements and budget.
By choosing the Silent 619kVA Diesel Generator with Yuchai Engine, you are investing in a reliable, efficient, and environmentally friendly power solution. With its advanced features, compact design, and customizable options, this generator is perfect for a wide range of applications. Contact us today to learn more about how the Silent 619kVA Diesel Generator can meet your power needs.
