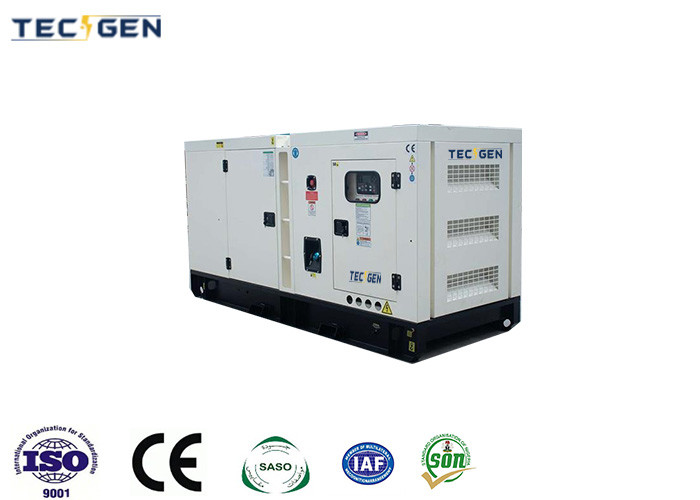

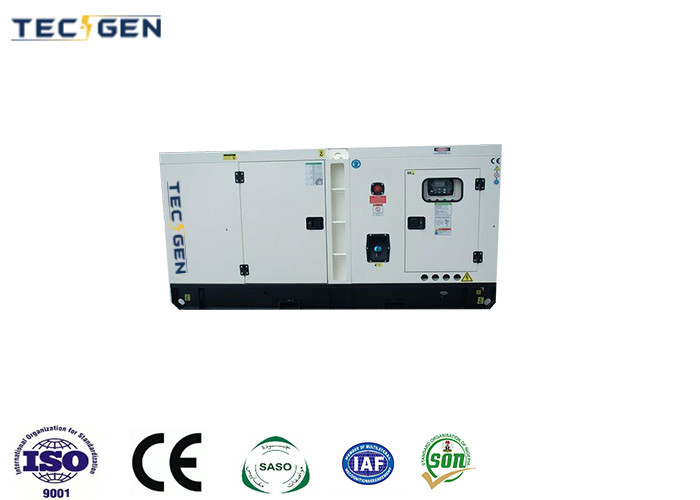

76kW Diesel Electric Generator Genset Powered By Quanchai Diesel Engine

Electric 76kW diesel genset diesel electric generator powered by Quanchai diesel engine

Standard Features:

Introducing our top-tier Electric 76kW Diesel Genset, model TG105QCSD6, designed for superior performance and reliability. This silent genset operates at a frequency of 60Hz and a rated speed of 1800RPM, providing a consistent and stable power supply. With a voltage of 240V and a three-phase, four or twelve-wire configuration, it delivers a rated current of 395.8A, ensuring ample power for your various needs. The prime power output is 76kW / 95kVA, while the standby power reaches 84kW / 105kVA, ensuring you're always prepared for unexpected power outages.

Key Features:

1. Powerful Engine: Equipped with the Quanchai 4J1-30 engine, this genset boasts a displacement of 4.294 liters and a robust 17.3:1 compression ratio. Turbocharged and indirect injection ensure efficient fuel combustion, while the electric governor maintains optimal engine performance.
2. Reliable Alternator: The Tecgen TGI224S76 alternator is designed for durability and high efficiency. With a rated output of 76kW and a four-pole configuration, it offers star winding connections and an H insulation class, ensuring safe and reliable power generation.
3. Advanced Controller: The DEIF SGC-420 controller system includes an AMF module for seamless control, a static automatic battery charger, an emergency stop push button, and ATS connection capabilities. This comprehensive control system ensures easy operation and monitoring.

Electric 76kW Diesel Genset Datasheets:

Usage:

Our Electric 76kW Diesel Genset is ideal for a wide range of applications, including commercial, industrial, and residential use. It's perfect for hospitals, data centers, construction sites, and other critical facilities that require a reliable backup power source. With its silent operation and compact design, it can be easily integrated into any environment without disturbing the surrounding area.

Advantage:

1. High Efficiency: The combination of the Quanchai engine and Tecgen alternator results in exceptional fuel efficiency, with fuel consumption rates as low as 9.4 liters per hour at 25% load.
2. Durability: Constructed with high-quality materials and designed for heavy-duty use, this genset is built to last. Regular maintenance and a reliable cooling system ensure long-term performance and durability.
3. Flexibility: With a variety of optional equipment available, including an ATS box, remote control, and parallel panel, this genset can be customized to meet your specific needs and preferences.

Option:

1. ATS Box: Automatically transfers power between the genset and the utility grid, ensuring seamless power supply during outages.
2. Remote Control: Allows for remote monitoring and control of the genset, providing added convenience and peace of mind.
3. Fuel-Water Separator: Helps prevent fuel contamination and extends the life of your engine.

FAQ:

1. What is the prime power output of this genset?
   • The prime power output is 76kW / 95kVA.
2. How quiet is this genset?
   • This genset is designed for silent operation, making it ideal for use in noise-sensitive environments.
3. What type of fuel does this genset use?
   • This genset uses diesel fuel, making it a cost-effective and reliable power source.

In conclusion, our Electric 76kW Diesel Genset is the perfect solution for anyone looking for a reliable, efficient, and versatile backup power source. With its impressive features, superior performance, and customizable options, it's an excellent choice for a wide range of applications. Don't let power outages disrupt your operations – invest in a quality Diesel Electric Generator today and ensure a stable power supply for your business or home. For more information or to place an order, visit our website or contact us directly.
