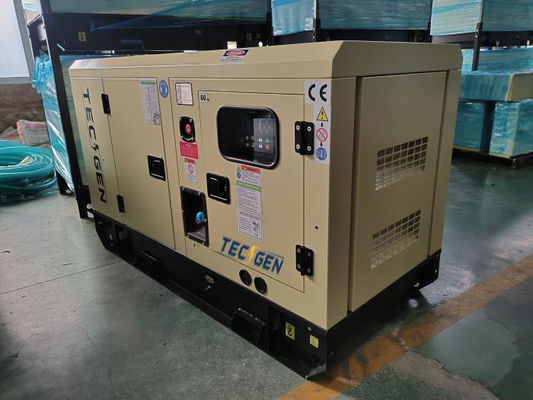

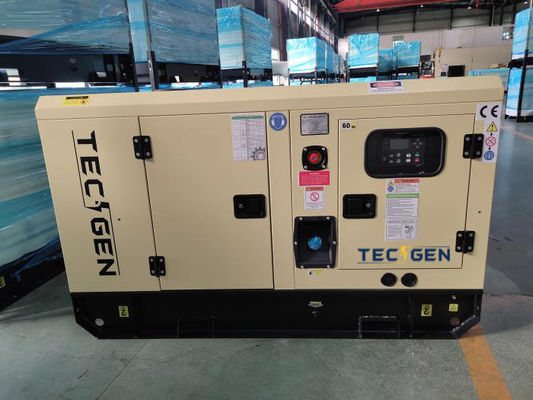

Diesel 27kW Power Genset Silent Power Generator Driven By Baudouin Diesel Engine With Canopy

Diesel 27kW power genset silent power generator driven by Baudouin diesel engine with canopy

Product Description: Diesel 27kW Power Genset - Silent Power Generator

Standard Features:

Our Diesel 27kW Power Genset, model TG36WBS, is a silent power generator designed for reliable and efficient power supply. With a robust Weichai Baudouin 4M06G35/5 engine and a Stamford PI 144H alternator, this genset delivers prime power of 27kW and standby power of 29kW. It operates at a standard frequency of 50Hz and a speed of 1500rpm, ensuring smooth and stable power output. The genset comes with a Smartgen HGM6120N controller, providing advanced automation and monitoring capabilities.

Key Features:

• Silent Operation: The TG36WBS is a silent genset, ideal for use in noise-sensitive environments. Its sound-absorbing design ensures minimal noise pollution, making it suitable for residential, commercial, and industrial applications.
• Versatile Voltage Options: The genset offers a wide range of voltage options, including 440V, 415V, 400V, 380V, 230V, 220V, and 110V, catering to various power requirements.
• High Efficiency: The Baudouin engine, with its turbocharged and intercooled design, delivers high efficiency and low fuel consumption. At 100% load, the fuel consumption is just 225g/kWh at 1500rpm.
• Compact Design: The genset has a compact footprint, with dimensions of L2200 * W1000 * H1400mm, and weighs 830kgs, making it easy to transport and install.
• Advanced Controller: The Smartgen HGM6120N controller offers features such as auto mains failure detection, static with auto battery charger, emergency stop push button, ATS & RS485 connection, and CAN functions, providing comprehensive control and monitoring.

Diesel 27kW Power Genset Specifications:

Usage:

The Diesel 27kW Power Genset is ideal for a wide range of applications, including residential backup power, commercial power supply, and industrial power generation. It can be used as a primary or standby power source for hospitals, schools, offices, hotels, and other facilities that require reliable and continuous power supply.

Advantages:

• Reliability: The Weichai Baudouin engine and Stamford alternator are known for their reliability and durability, ensuring long-lasting performance.
• Flexibility: The genset offers a versatile range of voltage options, making it suitable for different types of equipment and appliances.
• Efficiency: The engine's turbocharged and intercooled design ensures high efficiency and low fuel consumption, reducing operational costs.
• Silent Operation: The silent design makes the genset suitable for use in noise-sensitive environments, such as residential areas and hospitals.
• Advanced Controller: The Smartgen controller provides comprehensive control and monitoring capabilities, making it easy to manage and maintain the genset.

Options:

Customers can choose from a variety of options to customize their Diesel 27kW Power Genset. Different diesel engine brands, such as Cummins, Weifang Ricardo, Deutz, and Yuchai, are available. Alternator options include Leroy Somer, Tecgen, and Marathon. Controllers from DEIF, Mebay, and DEEPSEA can also be selected based on specific requirements.

FAQ:

• Q: What is the fuel consumption of the genset?
  • A: The fuel consumption at 100% load is 225g/kWh at 1500rpm.
• Q: What is the noise level of the silent genset?
  • A: The genset is designed for silent operation, with minimal noise pollution.
• Q: Can the genset be used as a primary power source?
  • A: Yes, the genset can be used as a primary or standby power source.
• Q: What is the warranty period for the genset?
  • A: Please contact us for warranty information.

In conclusion, our Diesel 27kW Power Genset, model TG36WBS, is a reliable and efficient silent power generator suitable for various applications. With its versatile voltage options, high efficiency, compact design, and advanced controller, it offers unparalleled performance and value. Don't miss out on this excellent opportunity to invest in a top-quality power genset for your residential, commercial, or industrial needs.
